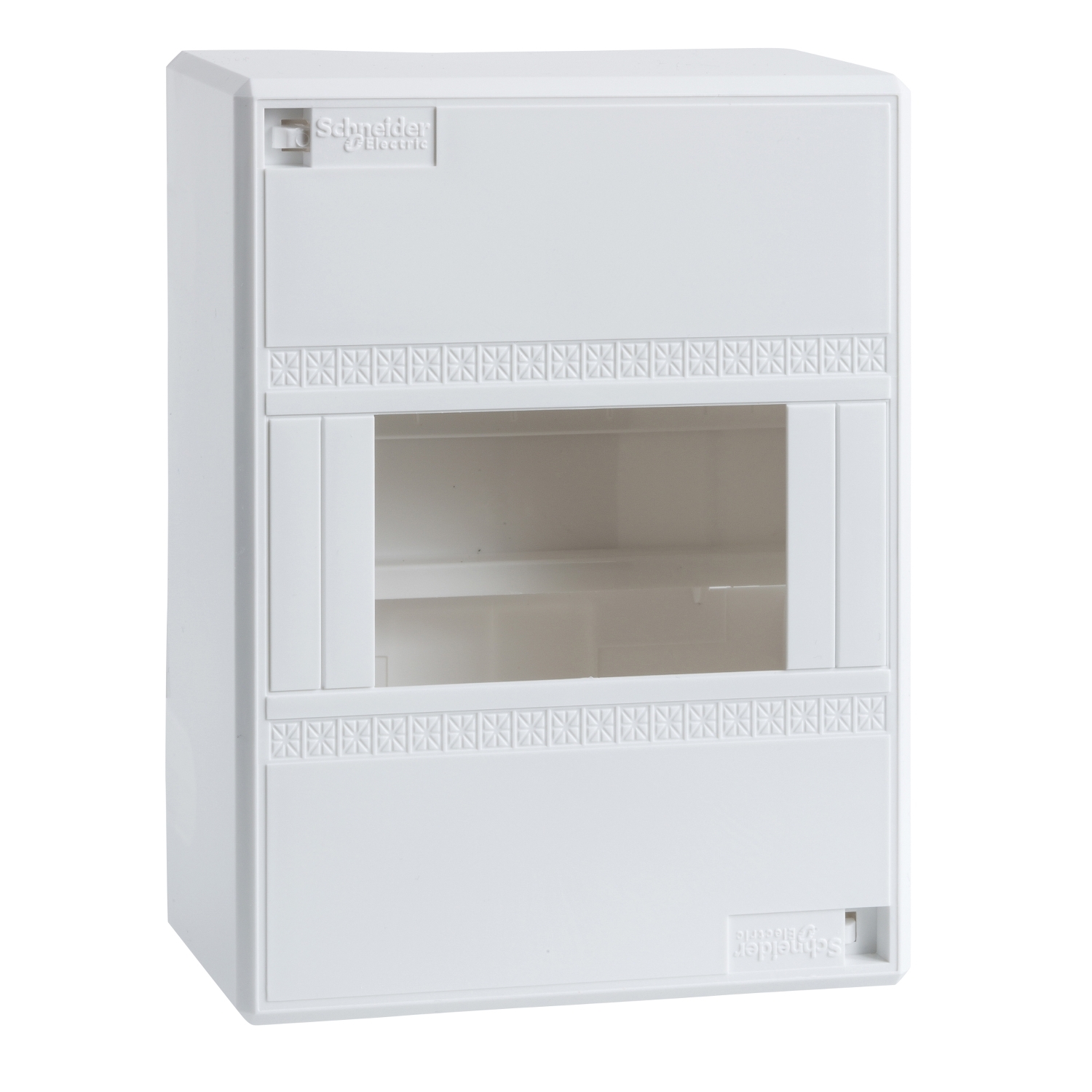

This Mini Opale product is a surface distribution enclosure. The door is not provided with the enclosure. It is composed of 1 row of 6 modules of 18mm. The IP degree of protection is IP30.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour | enclosure: white (RAL 9003) |
| Number of 18 mm modules per row | 6 |
| Enclosure type | distribution enclosure |
| Range of product | Mini Opale |
| Provided equipment | 2 x terminal block |
| Product or component type | enclosure |
| Standards | EN 50102, IEC 60529 |
| Complementary | |
| Enclosure material | enclosure: self-extinguishing material |
| Width | 119 mm |
| Enclosure mounting | surface |
| Depth | 65 mm |
| Internal depth | 52 mm |
| Mounting plate description | without mounting plate |
| Distribution block outgoers | 6 x 10 mm², 2 x 16 mm² |
| Height | 160 mm |
| Type of rail | DIN |
| 9 mm pitches | 12 |
| Total number of 18 mm modules | 6 |
| Number of horizontal rows | 1 |
| [In] rated current | 63 A |
| Number of terminal blocks | 2 with 4 outgoers |
| Environment | |
| IP degree of protection | IP30 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
