Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

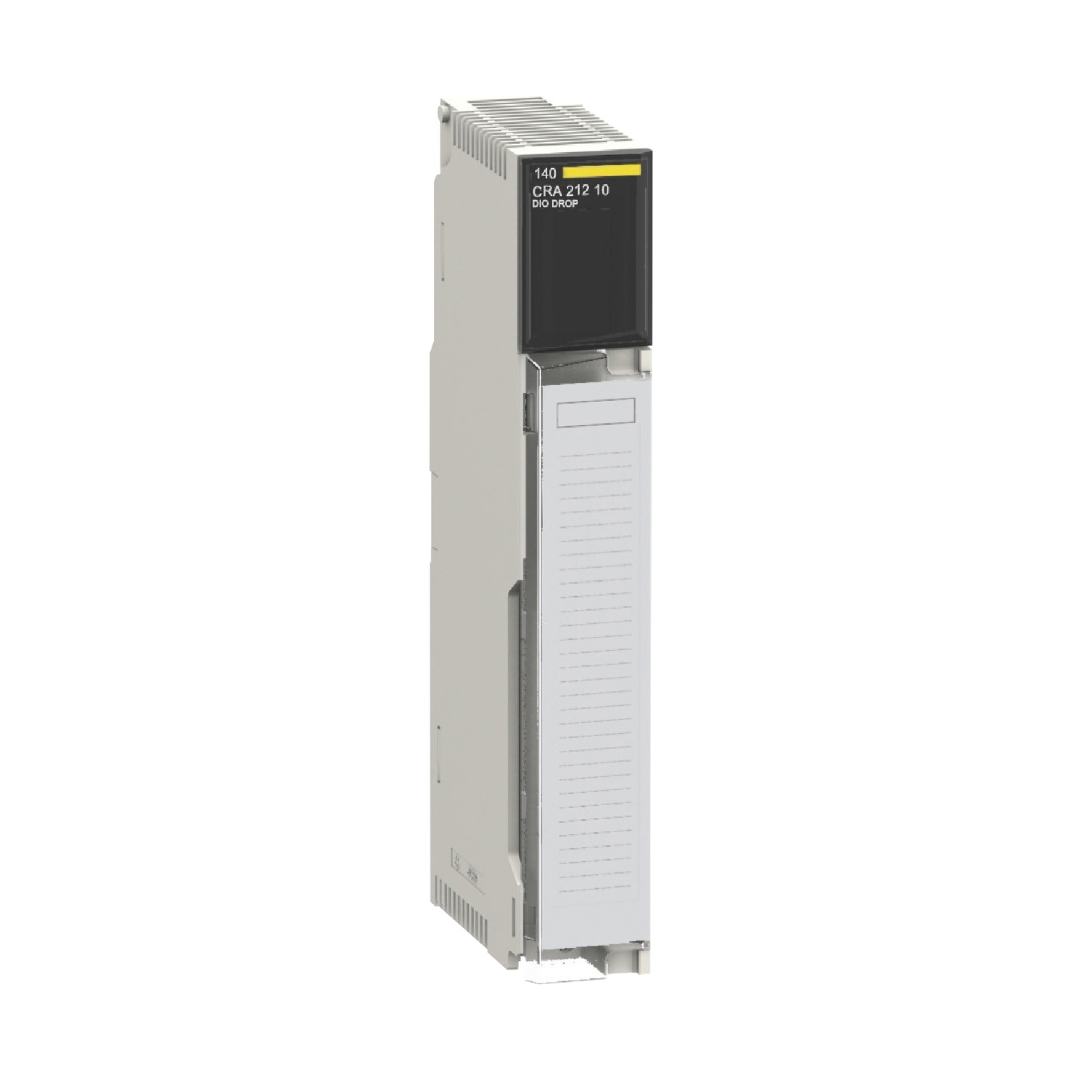

| Product or component type | DIO drop interface |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Supply frequency | 47...63 Hz |
| Associated fuse rating | 1.5 A |
| [Us] rated supply voltage | 115/230 V AC |
| Module format | standard |
| Inrush current | 20 A 230 V, 10 A 115 V |
| Output voltage | 5.1 V |
| Diagnostics run time | checksum, RAM, RAM address |
| Number of port | 1 single |
| Nominal output current | 3 A |
| Maximum supply current | 0.4 A 230 V, 0.2 A 115 V |
| Power dissipation in W | 11 W |
| Supply voltage limits | 85-276 V |
| Short-circuit protection | with |
| Typical backplanes | 10 positions, 4 positions, 2 positions, 3 positions, 6 positions, 16 positions |
| Diagnostics startup | RAM, checksum, RAM address |
| Rated power in VA | 50 VA |
| Output overvoltage protection | with |
| I/O words | 30 I/32 O |
| Minimum load current | 0 A |
| Connections - terminals | terminal block, 7 poles |
| Environment | |
| Operating altitude | <= 5000 m |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | UL 508 |
| Resistance to electromagnetic fields | 10 V/m 80-2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | CSA Class 1 Division 2, DNV, UL, C-Tick, GOST |
