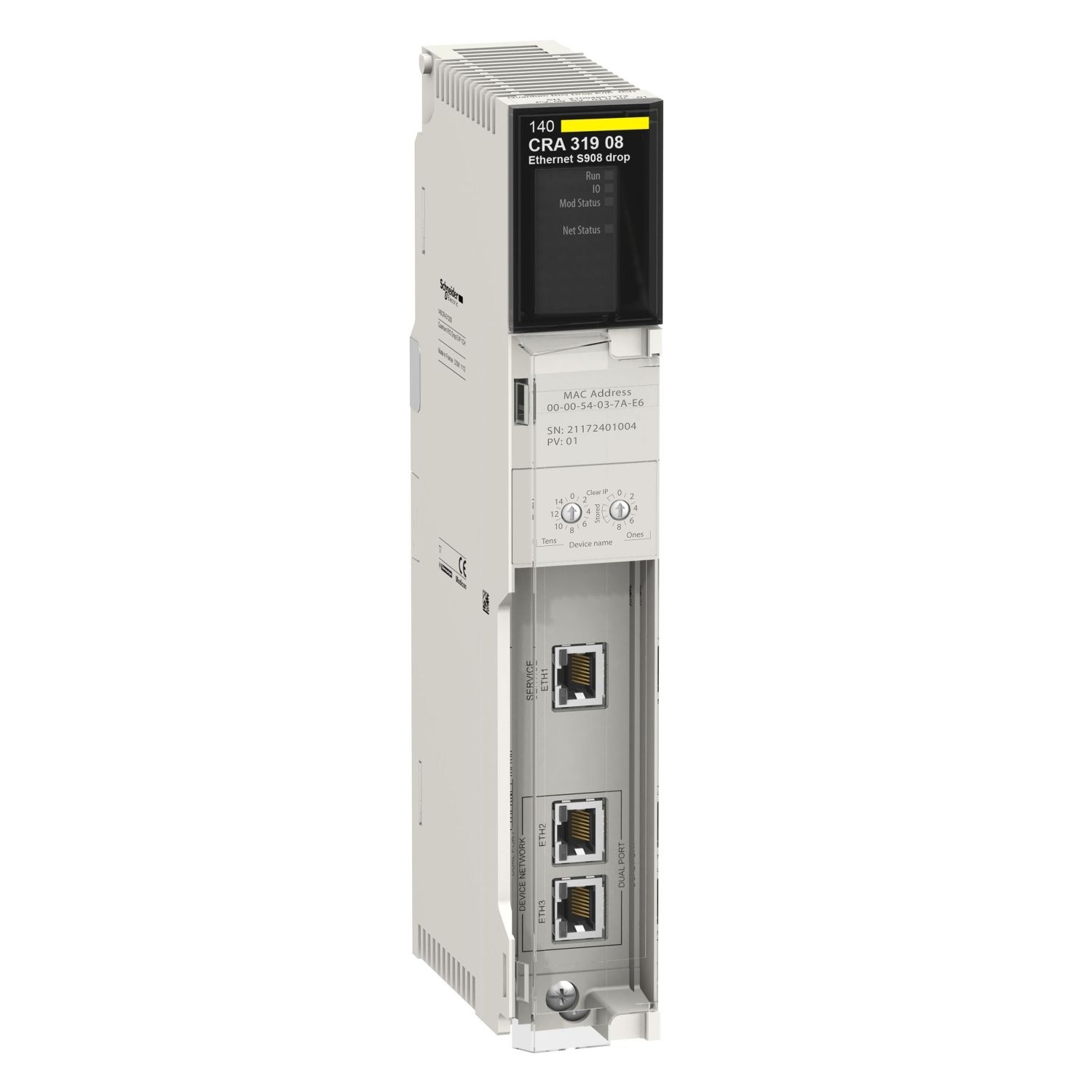

What is this product? This product is an Ethernet RIO drop adapter for the Modicon Quantum series, enabling communication between M580 systems and Quantum S908 architectures. It supports modernizing the S908 based architecture to M580 without rewiring the coaxial bus and IO cabling, enhancing the performance and cyber security level of the system, and extending the life of your automation infrastructure. What is the product technical and installation information? Key benefits include Ethernet IP/Modbus TCP compatibility, S908 compatibility, multiple LED indicators for status monitoring, and robust environmental protection (IP20). The 140CRA31908 is installed in an Quantum ERIO drop within an M580 system, facilitating seamless integration. The product includes the adapter module and is compatible with Modicon Quantum and M580 systems. What is the product range information? The Modicon M580 and Modicon Quantum range offers high reliability, extensive communication options, and easy integration with existing systems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | to provide the ability for a M580 system to control Modicon S908 coaxial bus |
| Number of port | 3 |
| Communication service | output modules are updated with the data received from remote I/O head adaptor, the input data are collected and published to the remote I/O head adaptor |
| Range of product | Modicon Quantum |
| Integrated connection type | Ethernet IP/Modbus TCP for device network, Ethernet IP/Modbus TCP for service port |
| Communication port protocol | Ethernet IP/Modbus TCP |
| Product or component type | Ethernet RIO drop adaptor |
| Product destination | Modicon Quantum |
| Complementary | |
| Product compatibility | BMEP584040, BMEH586040, BMEP585040, BMEH584040, BMEP586040 |
| Topology | S908 bus, daisy chain loop |
| Height | 50 mm |
| Width | 167 mm |
| Local signalling | 1 LED (red) for I/O, 1 LED (green) for RUN, 1 LED (green/red) for network communication status (Net Status), 1 LED (green/red) for module status (Mod Status) |
| Net weight | 0.554 kg |
| Environmental characteristic | hazardous location class I division 2 conforming to EN/IEC 61131-1, standard environment |
| Environment | |
| Relative humidity | 93-93 % conforming to IEC 60068 |
| Ambient air temperature for storage | -40-85 °C conforming to IEC 60068-2-2, -40-85 °C conforming to IEC 60068-2-1 |
| IP degree of protection | IP20 conforming to IEC 60527, IP20 conforming to EN 61131-2 |
| Ambient air temperature for operation | 0-60 °C conforming to IEC 60068-2-2, 0-60 °C conforming to IEC 60068-2-1 |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3000 m |
| Overvoltage category | class I conforming to EN 61131-2 |
| Vibration resistance | 1 gn constant acceleration (f= 8.4-150 Hz) conforming to EN 61131-2, 3.5 mm constant amplitude (f= 0.5-8.4 Hz) conforming to EN 61131-2 |
| Standards | EN 55011, CSA C22.2 No 142, IEC 61000-4-16 |
| Product certifications | C-Tick, CE, UL 508 |
