Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input number | 32 |
| Software name | Unity Pro, Concept, ProWORX 32 |

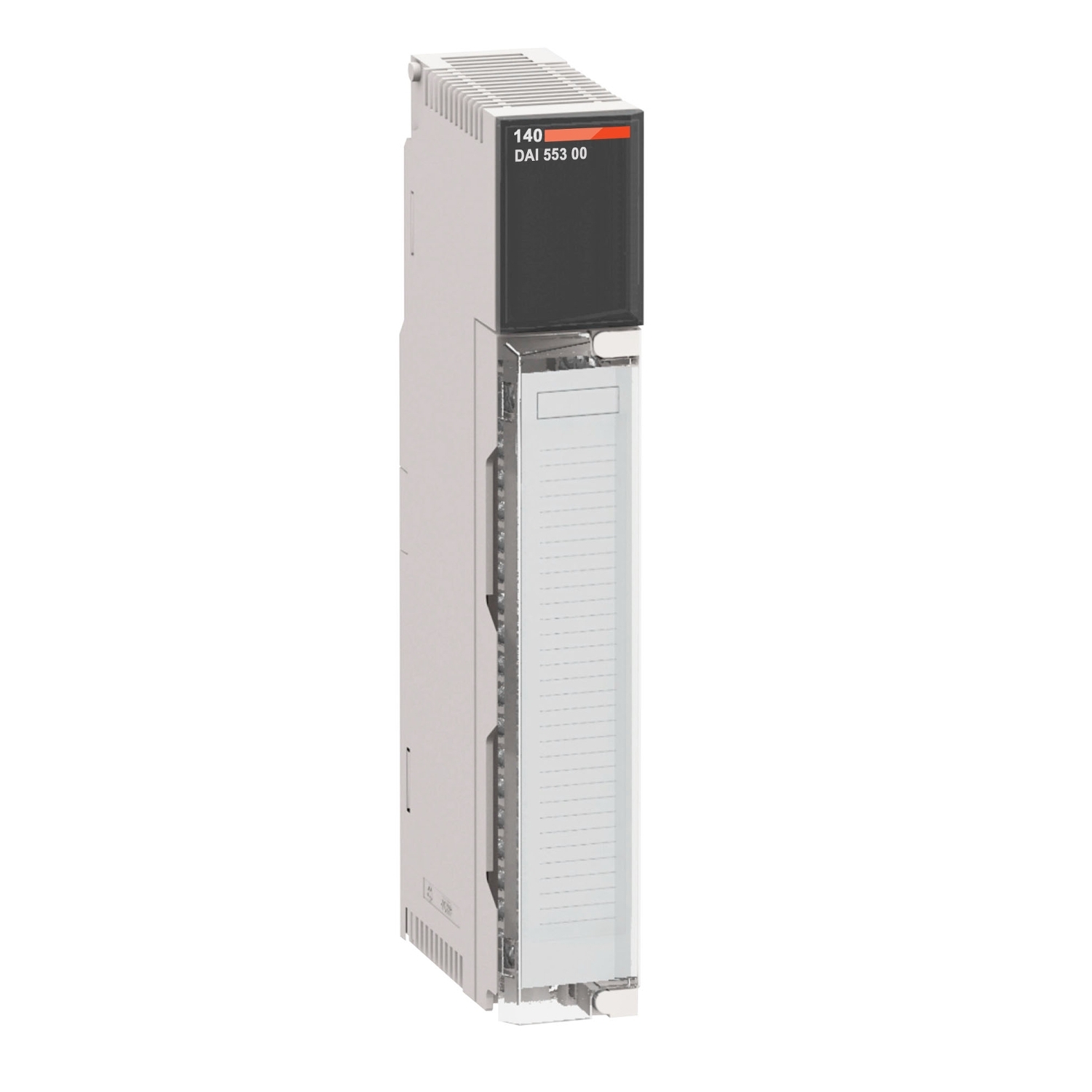

| Product or component type | VAC discrete input modules |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Input impedance | 3100 Ohm capacitive at 47...53 Hz, 2600 Ohm capacitive at 57...63 Hz |
| Maximum leakage current | 1.9 mA |
| Module format | standard |
| Absolute maximum input | 50 V 1 cycle, 32 V 10 s, 30 V continuous |
| Local signalling | 32 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active) |
| Addressing requirement | 2 input words |
| Bus current requirement | 250 mA |
| Maximum power dissipation in W | 10.9 W |
| Voltage state 1 guaranteed | 14...30 V AC at 47...53 Hz, 12...30 V AC at 57...63 Hz |
| Voltage state 0 guaranteed | 0...5 V at 47...53 Hz, 0...5 V at 57...63 Hz |
| Net weight | 0.34 kg |
| Input current | 13.2 mA at 47...53 Hz, 11.1 mA at 57...63 Hz |
| Marking | CE |
| Network frequency limits | 47-63 Hz |
| Isolation between group | 1780 Vrms for 1 minute |
| Response time | 7.3...12.3 ms On-Off, 4.9...0.75 ms x line cycle Off-On |
| Discrete input voltage | 24 V AC |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Group of channels | 4 |
| Environment | |
| Operating altitude | <= 5000 m |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | CSA C22.2 No 142, UL 508 |
| Resistance to electromagnetic fields | 10 V/m 80-2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | cUL, FM Class 1 Division 2 |
