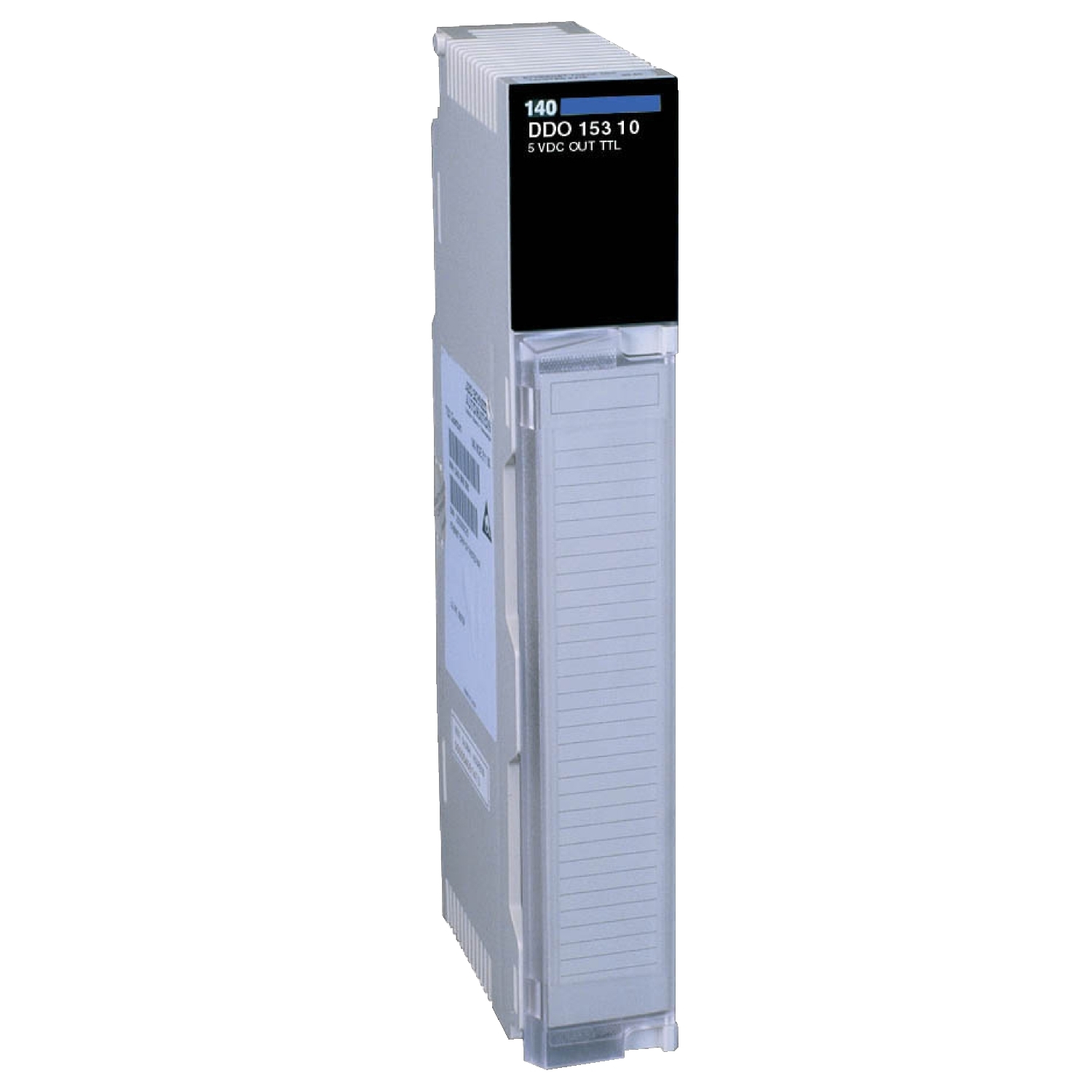

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output number | 32 |
| Product or component type | dc discrete output module |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Isolation between channels and bus | 1780 Vrms DC for 1 minute |
| Module format | standard |
| Protection type | internal output protection by 5 A fuse per group |
| Local signalling | 32 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active) |
| Fault indication | loss of field power, blown fuse |
| Addressing requirement | 2 output words |
| Output voltage limits | 19.2...30 V |
| Absolute maximum output | 56 V for 1.3 s decaying pulse |
| Load inductance | inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 50 Hz |
| Maximum leakage current | 0.4 mA 30 V |
| Net weight | 0.45 kg |
| Associated fuse rating | 5 A per group, 3 A each point |
| Surge current | 5 A for 0.0005 s |
| Marking | CE |
| Discrete output voltage | 24 V DC |
| Isolation between group | 500 Vrms DC for 1 minute |
| Maximum voltage drop | <0.4 V 0.5 A |
| Response time | <= 1 ms at state 1 to state 0, <= 1 ms at state 0 to state 1 |
| Bus current requirement | 330 mA |
| Discrete output logic | positive logic (source) |
| Group of channels | 4 groups of 8 |
| Maximum load current | 4 A per group, 16 A per module |
| Power dissipation | 1.75 W + (0.4 V x total module load current) |
| Environment | |
| Operating altitude | <= 5000 m |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | CSA C22.2 No 142, UL 508 |
| Resistance to electromagnetic fields | 10 V/m 80-2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | safety certification non interfering, FM Class 1 Division 2, C-Tick, RINA, GL, DNV, ABS, RMRS, BV, GOST |
