Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

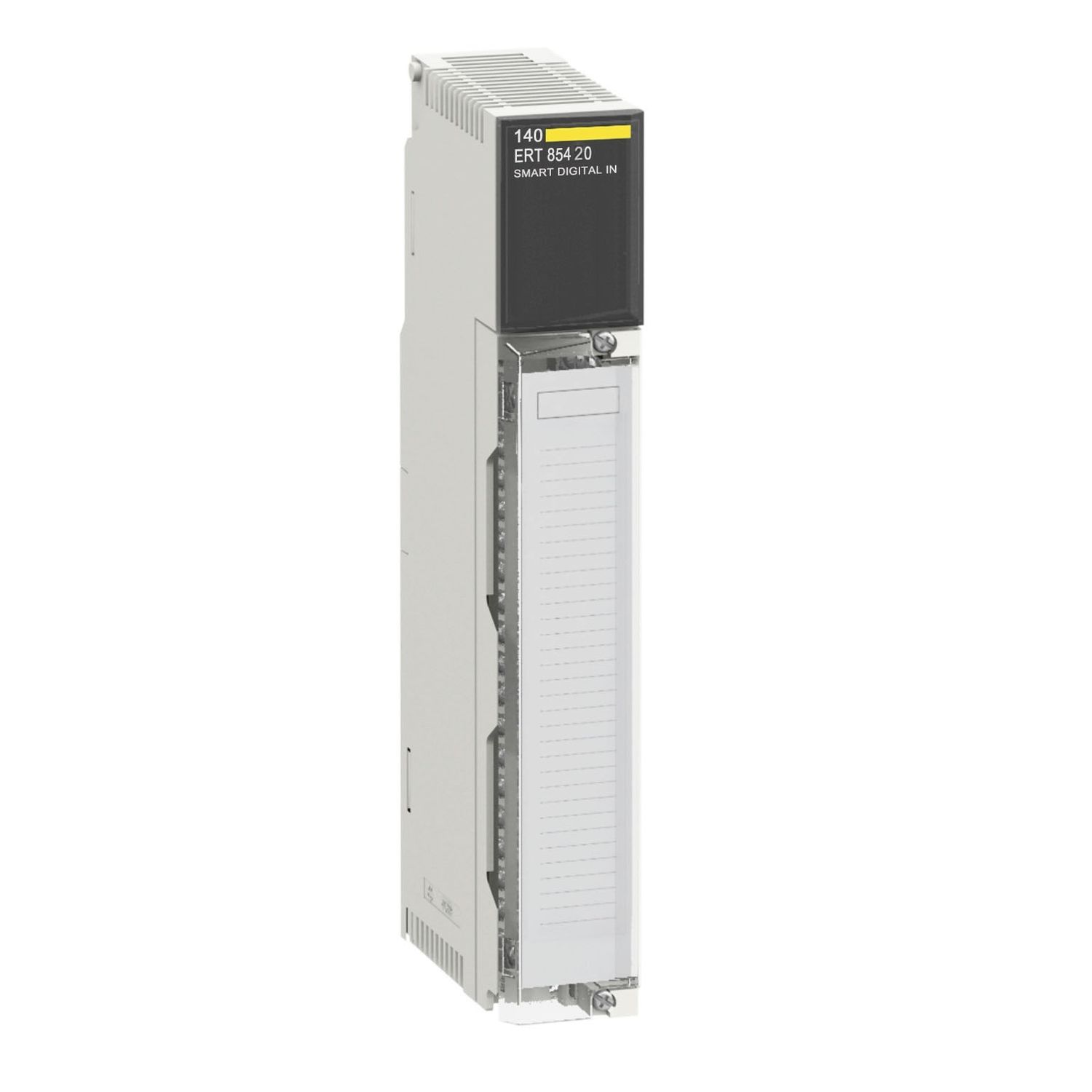

| Product or component type | multifunction input module |
| Range of product | Modicon Quantum automation platform |
| Number of terminals | 40 |
| Complementary | |
| Insulation | by optocoupler for clock signal input |
| Discrete input number | 32 discrete input(s) at 24...125 V for process input, 1 discrete input(s) at 24 V for clock signal input |
| Maximum power consumption in W | 7.5 W for process input |
| Function of module | time and date stamped event logging, status monitoring on discrete inputs, status logging counting 500 Hz |
| Switching voltage | 60 V at 2.5 mA for process input, 48 V at 2.5 mA for process input, 24 V at 6 mA for process input, 125 V at 1 mA for process input |
| Module format | standard |
| Local signalling | 32 LEDs for status of inputs (1 to 32), 1 LED (red) for fault (F), 1 LED (green) for self test OK, module ready (R), 1 LED (green) for communication on the bus (Active) |
| Product compatibility | Unity Pro V7.0, Unity Pro V6.0 - without IRIG-B or TXSNTP100 function, Unity Pro V5.0 - without IRIG-B or TXSNTP100 function, Unity Pro V4.1 - without IRIG-B or TXSNTP100 function |
| Time synchronisation protocol | IRIG-B, DCF77 |
| Insulation between group of channels | by optocoupler |
| Anti bounce filtering | configurable from 0 to 255 ms |
| Electrical connection | cable - unshielded cable <400 m for process input, cable - shielded cable <600 m for process input |
| Net weight | 0.45 kg |
| Input current | 5 mA for clock signal input |
| Current consumption | 20 mA at 24...125 V DC external power supply per group of channel, 300 mA at 5 V DC bus |
| Acquisition time | 1 ms for clock signal input |
| Group of channels | 2 groups of 16 inputs for process input |
| Input state | inversion configurable |
| Connections - terminals | screw terminal block |
| Environment | |
| Operating altitude | <= 5000 m |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Standards | UL 508, HazLoc |
| Resistance to electromagnetic fields | 10 V/m 80...2000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | Merchant Navy, GOST, LR, CSA Class 1 Division 2, C-Tick, UL |
