Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Optic fiber type | single mode |

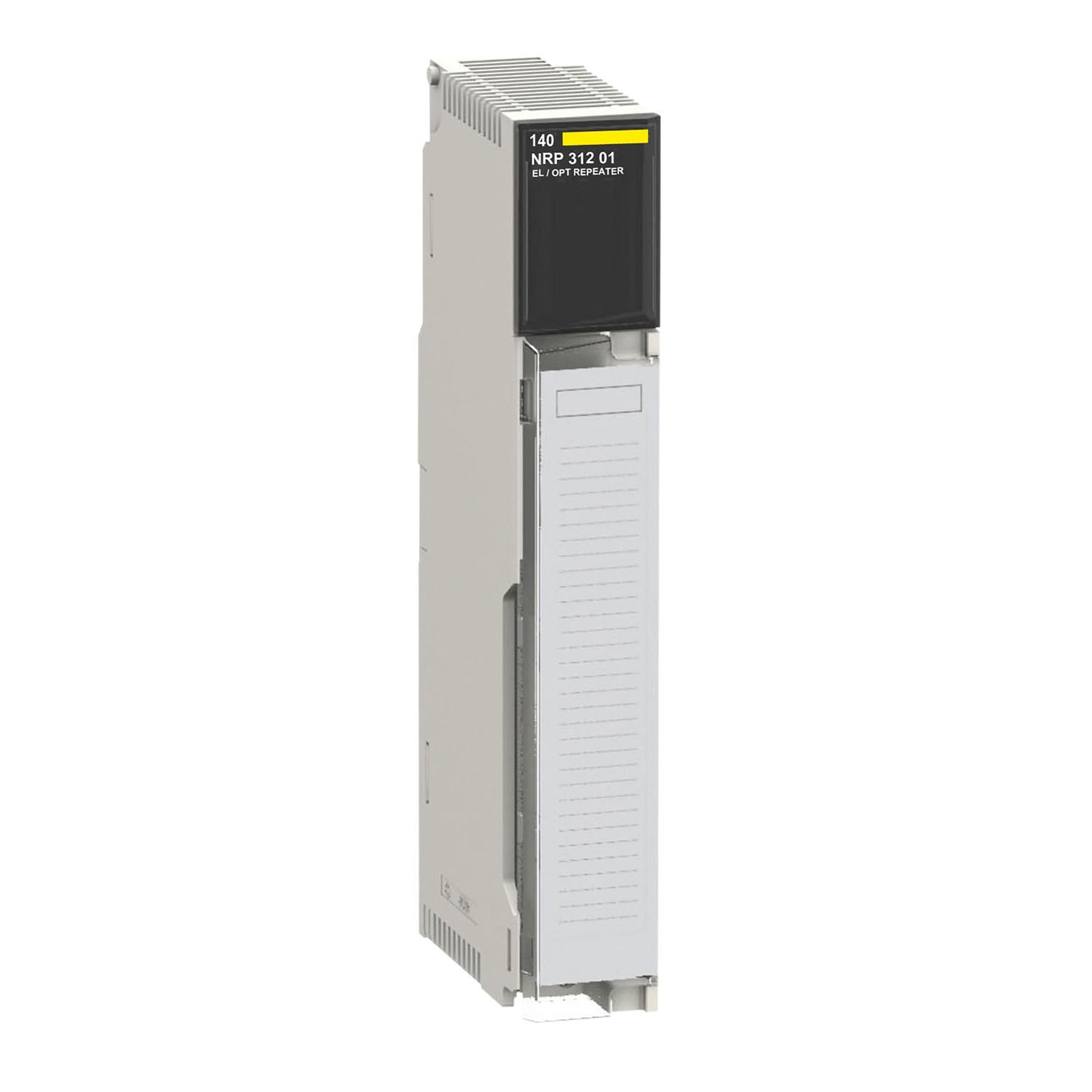

| Product or component type | fibre converter |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Receiver sensitivity | - 28 dBm |
| Number of port | 2 ETHERNET, connector type: RJ45, 2 fiber optic, connector type: LC |
| Inrush current | 1 A at 5 V DC |
| Depth | 103.85 mm |
| Width | 40.34 mm |
| Bus current requirement | 1000 mA |
| Detected silence | -45 dBm |
| Power dissipation in W | 5 W |
| Wavelength | 1310 nm |
| Attenuation | -15--8 dB (9/125 µm) |
| Net weight | 0.554 kg |
| Material | PC (polycarbonate) |
| Local signalling | 1 LED green with FX2 ACT marking for channel 2 communication status, 1 LED green with STS2 marking for channel 2 link status, 1 LED green with FX1 ACT marking for channel 1 communication status, 1 LED green with STS1 marking for channel 1 link status, 1 LED red with ERR marking for internal fault, module failure, 1 LED green with RDY marking for module status |
| Marking | CE |
| Rise/fall time | 2.5 ns |
| Optic distance between 2 transceivers | 15000 m (9/125 µm), optical power: -15--8 dBm |
| Height | 250 mm |
| Environment | |
| Operating altitude | 0...2000 m |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 0-95 % |
| Standards | FM Class 1 Division 2, CSA C22.2 No 142, UL 508 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | C-Tick, Merchant Navy, TÜV |
