Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Optic fiber type | multi mode |

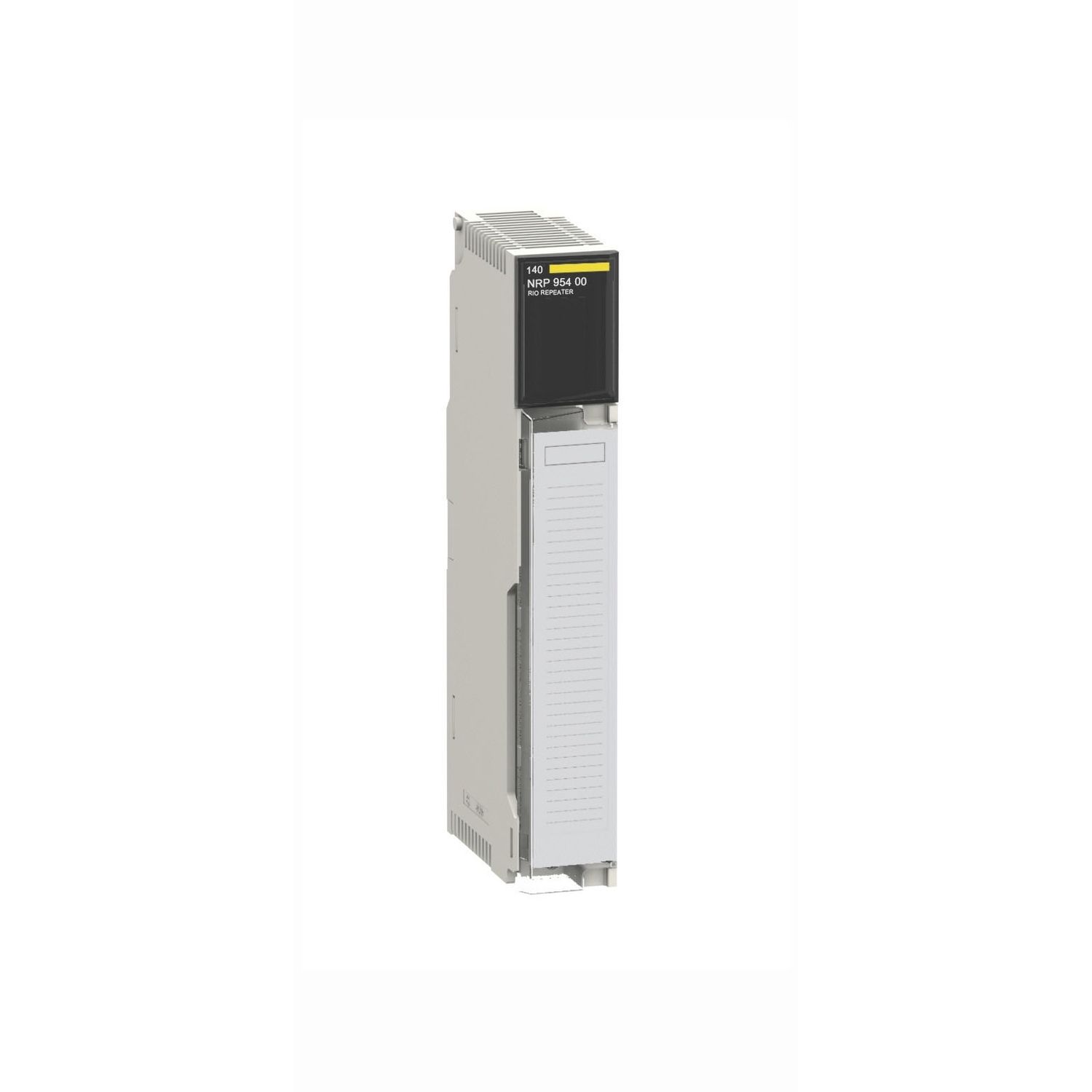

| Product or component type | fibre optic repeater |
| Range of product | Modicon Quantum automation platform |
| Complementary | |
| Receiver sensitivity | - 30 dBm |
| Number of port | 1 , connector type: coaxial connector, 2 fiber optic, connector type: ST |
| Inrush current | 1 A at 5 V DC |
| Depth | 103.85 mm |
| Width | 40.34 mm |
| Bus current requirement | 700 mA |
| Detected silence | -36 dBm |
| Power dissipation in W | 5 W |
| Wavelength | 820 nm |
| AWG gauge | AWG 14...AWG 1 |
| Attenuation | -10.5--4 dB (100/140 µm), -16--10 dB (62.5/125 µm), -20--13 dB (50/125 µm) |
| Net weight | 0.554 kg |
| Material | PC (polycarbonate) |
| Local signalling | 1 LED red for activity detected, 1 LED red with FAULT marking for error, 2 LEDs green for optical communication status, 1 LED green for coaxial communication status, 1 LED red with ERR marking for internal fault, module failure, 1 LED green with RDY marking for module status |
| Marking | CE |
| Rise/fall time | 20 ns |
| Optic distance between 2 transceivers | 3000 m (100/140 µm), optical power: 5-5 dBm, 3000 m (62.5/125 µm), optical power: 3.5-3.5 dBm, 2000 m (50/125 µm), optical power: 3.5-3.5 dBm |
| Height | 250 mm |
| Dynamic range | 20 dB |
| Environment | |
| Operating altitude | 0...2000 m |
| Ambient air temperature for storage | -40-85 °C |
| Relative humidity | 0-95 % |
| Standards | FM Class 1 Division 2, UL 508, CSA C22.2 No 142 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | TÜV |
