Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | I |
| Device application | isolation, control |
| Poles description | 2P |
| Suitability for isolation | yes conforming to IEC 60947-3, yes conforming to EN 60947-3 |
| Utilisation category | AC-22A conforming to IEC 60947-3, AC-22A conforming to EN 60947-3 |

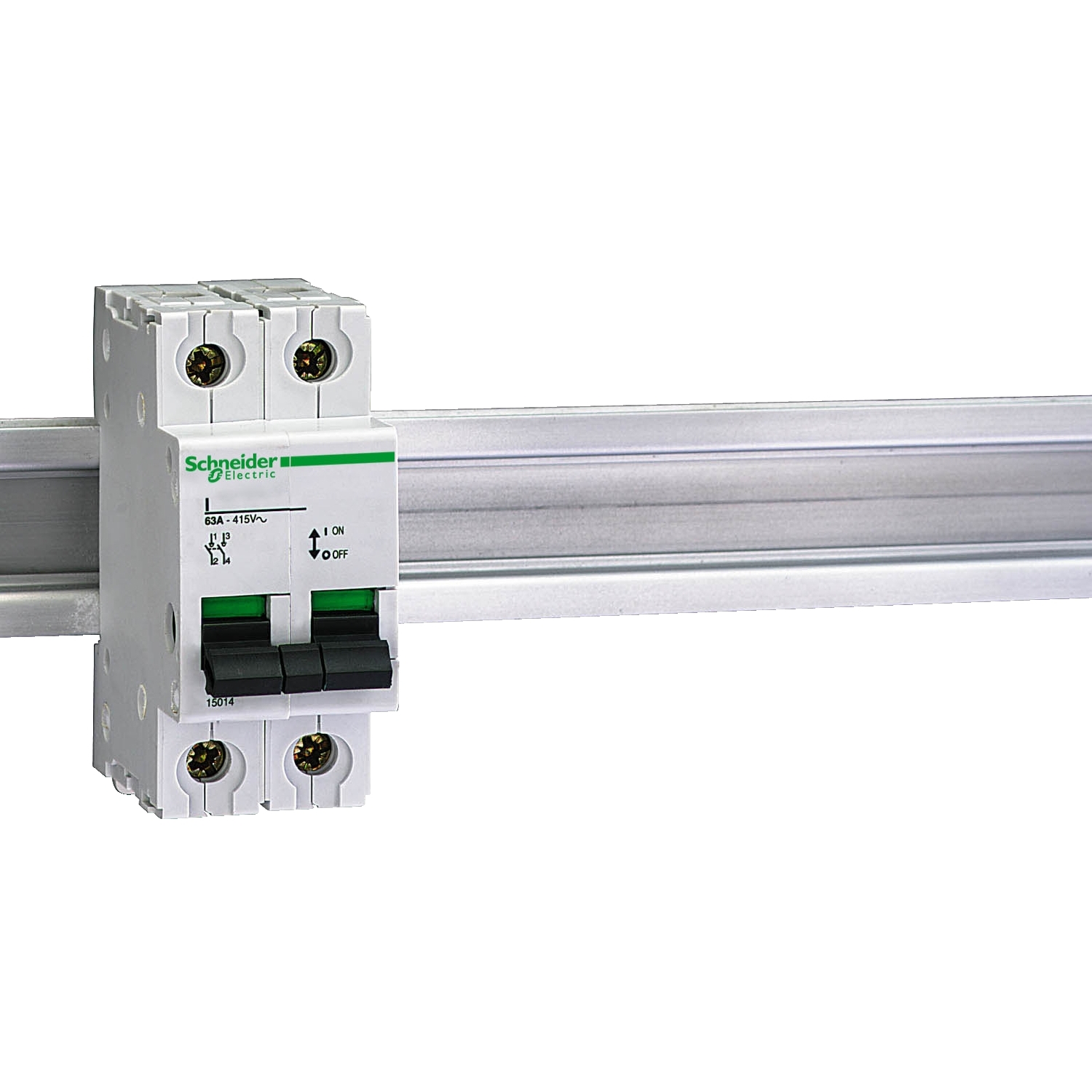

| Product or component type | switch disconnector |
| Range of product | I |
| Complementary | |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz |
| Connection pitch | 18 mm between phases |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-3, 6 kV conforming to EN 60947-3 |
| Local signalling | ON/OFF indication |
| Compatibility code | I |
| Mechanical durability | 50000 cycles |
| [Ie] rated operational current | 100 A at 415 V AC 50/60 Hz |
| Tightening torque | 3.5 N.m |
| Colour | grey |
| Electrical durability | 10000 cycles |
| Mounting mode | fixed |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-3 |
| Wire stripping length | 9 mm |
| Control type | toggle |
| Connections - terminals | tunnel type terminals - 1 x 6...1 x 50 mm² - rigid, tunnel type terminals - 1 x 6...1 x 35 mm² - flexible |
| 9 mm pitches | 4 |
| Mounting support | DIN rail |
| Contact position indicator | yes |
| Environment | |
| Pollution degree | 3 conforming to IEC 60947-3 |
| IP degree of protection | IP4 |
| Tropicalisation | 2 |
| Standards | IEC 60947-3 |
