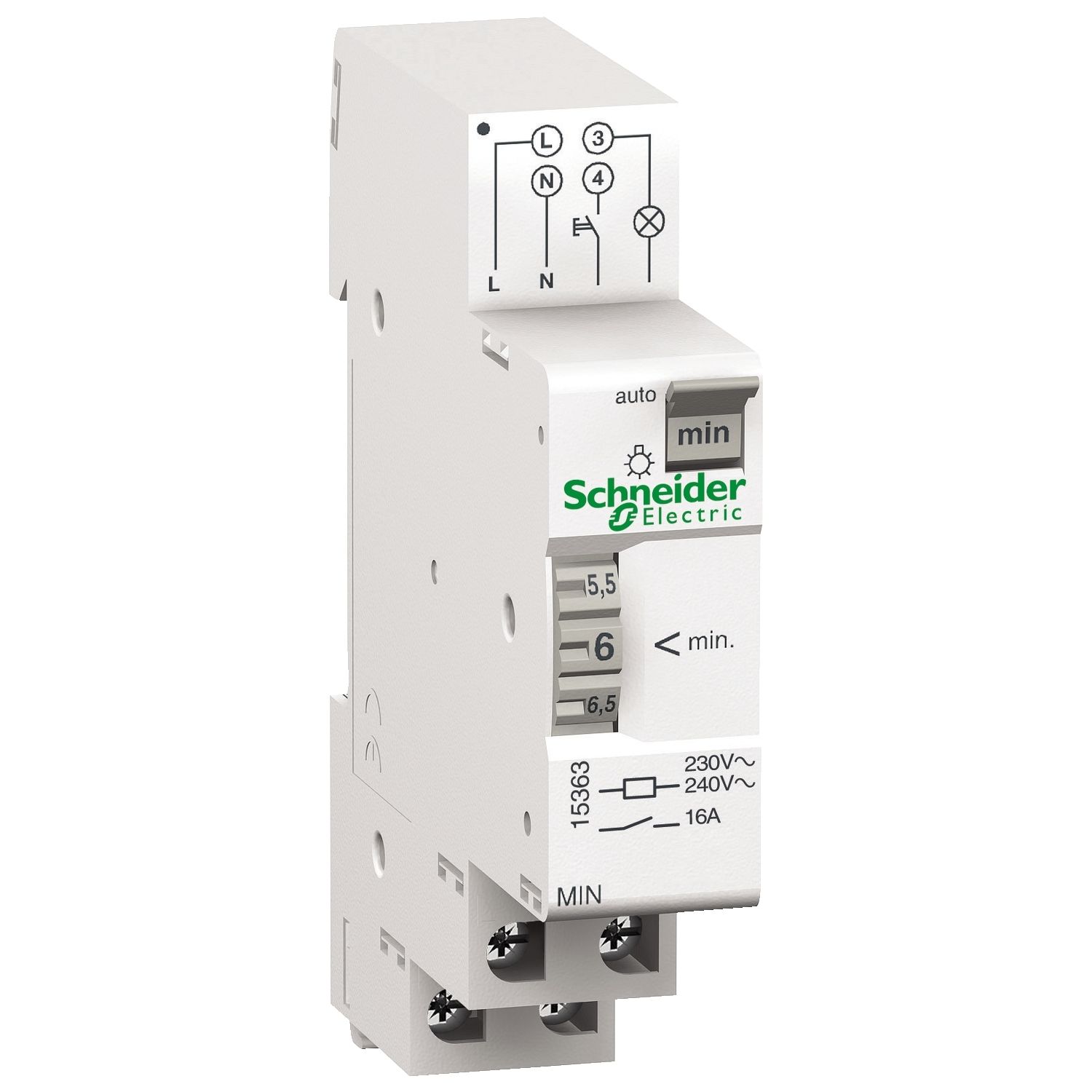

MIN electromechanical staircase timers Width of 18mm (2 modules of 9mm) Closing and then opening of a contact in a determined time Adjustable time delay 1 to 7 minutes Control circuit with connected standard, or luminous 230V push buttons Manual override is possible
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MIN |
| Range | Acti9 |
| Range of product | Acti9 |
| Product name | Acti9 MIN |
| Product or component type | electromechanical timer |
| Colour tint | white (RAL 9003) |
| Complementary | |
| Device application | building |
| Selection of the type of connection | selector switch |
| Insulation shield | no |
| Compatibility code | MIN |
| Switch off warning | no |
| Time delay | adjustable from 1 to 7 minutes |
| Connections - terminals | screw terminals - <= 6 mm² |
| Load type | LED lamp > 2 W 300 W, LED lamp < 2 W 30 W, compact fluorescent lamp 7 x 20 W, compact fluorescent lamp 10 x 15 W, compact fluorescent lamp 13 x 11 W, compact fluorescent lamp 21 x 7 W, fluocompact lamp 2300 VA, 230 V AC incandescent lamp 2300 W, 230 V AC halogen lamp 2300 W, parallel-corrected fluorescent tube 3.0 x 100 W 18 µF, parallel-corrected fluorescent tube 10 x 58 W 7 µF, parallel-corrected fluorescent tube 14 x 40 W 4.7 µF |
| Maximum switching current | 16 A - 230 V AC pf = 1 |
| Height | 83 mm |
| Depth | 68 mm |
| Market segment | small commercial |
| Width | 18 mm |
| Power consumption in VA | 1 VA |
| Additional function | none |
| Net weight | 84 g |
| 9 mm pitches | 2 |
| [Ue] rated operational voltage | 230 V AC at 50 Hz |
| Mounting support | DIN rail |
| Environment | |
| IP degree of protection | IP20 B |
| Ambient air temperature for operation | -10-50 °C |
