Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TBS |
| Device application | control |
| Range | Multi9 |

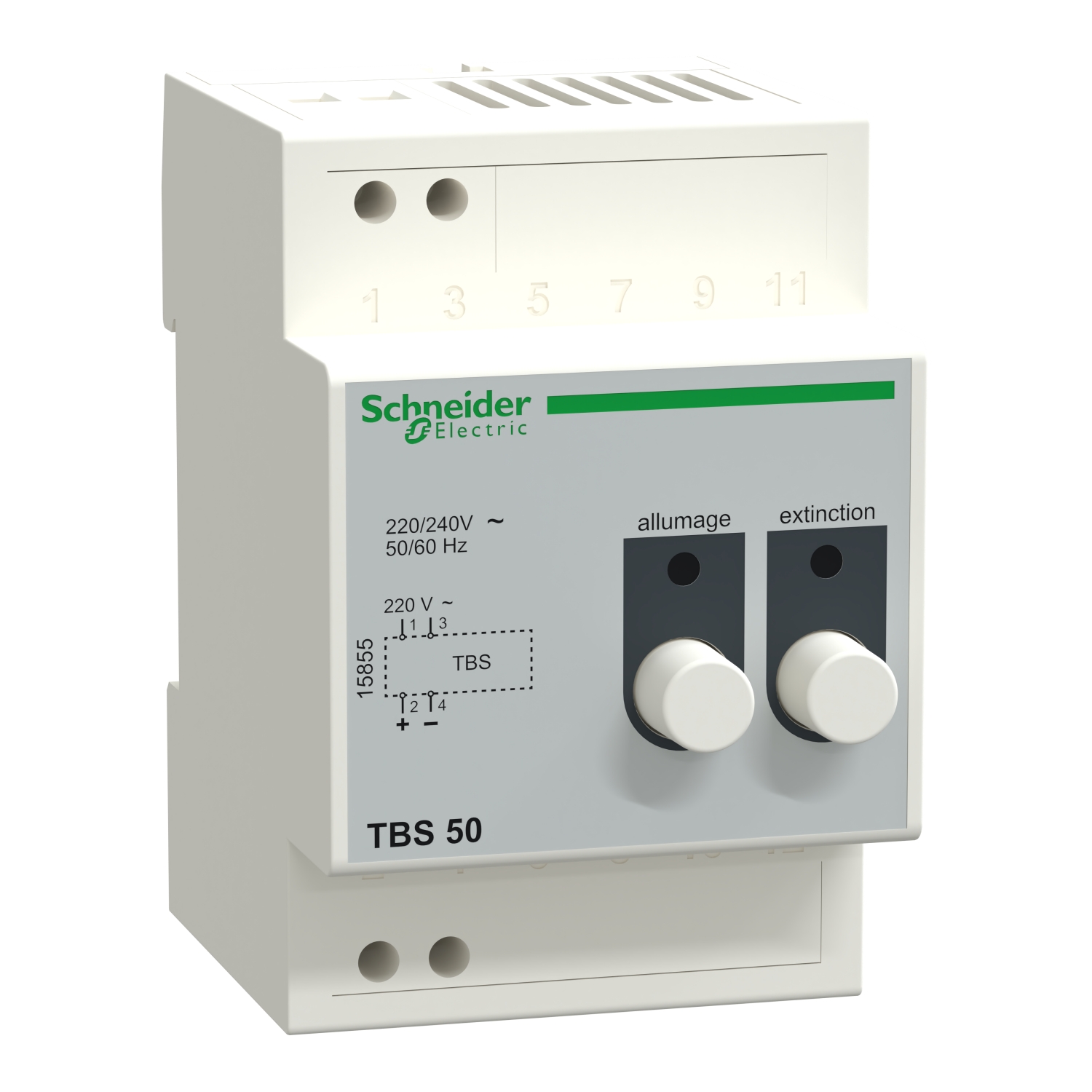

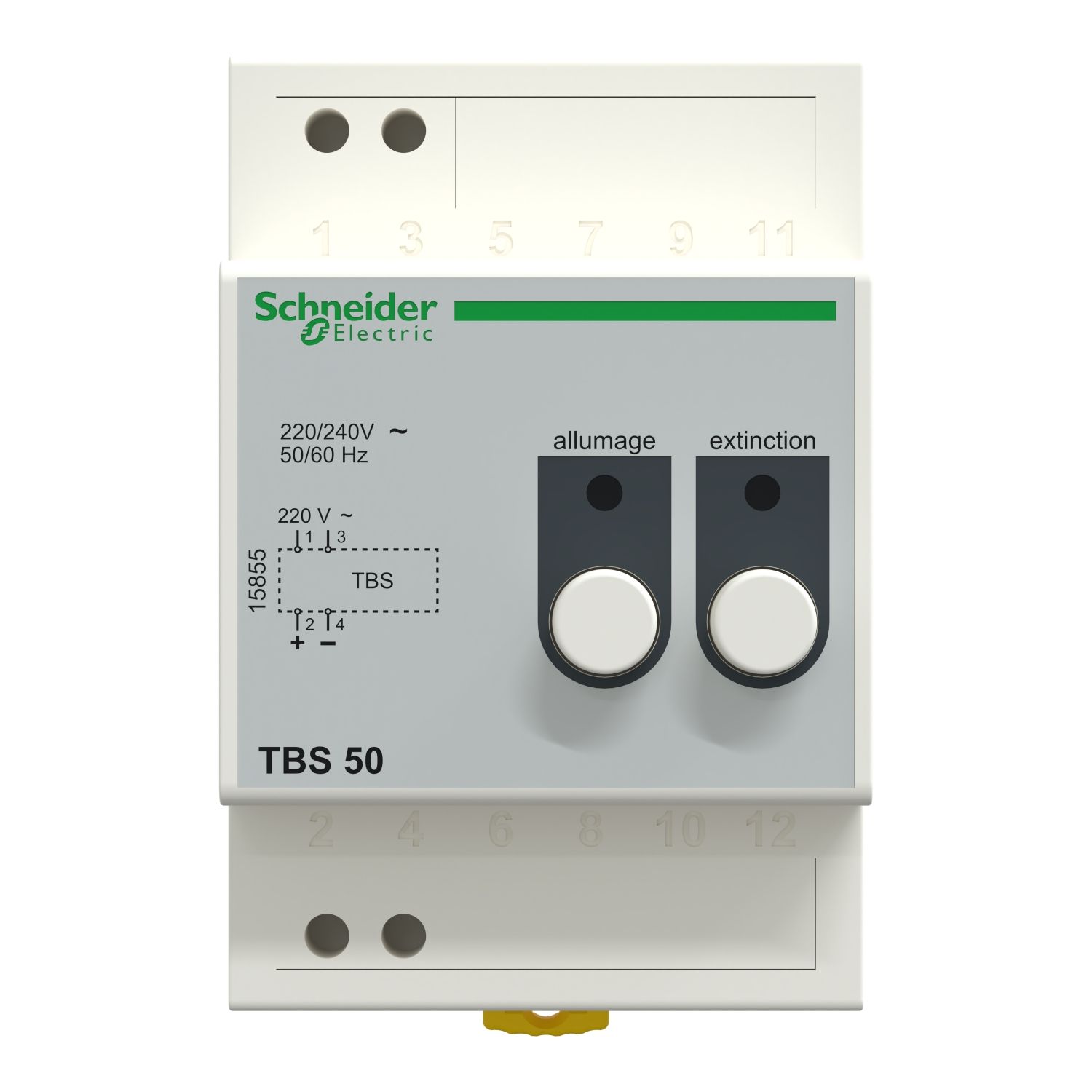

| Product name | Multi9 TBS |
| Product or component type | remote control for emergency light block |
| Range of product | Multi9 |
| Complementary | |
| Compatibility code | TBS_50 |
| Number of cables | 2 cable(s) 2.5-2.5 mm² |
| Number of light blocks | 30 TA41BDMMe, 30 TA41BDM, 30 BAASMaMe, 30 BAASMa, 50 1.5-1.5 mm² BAES |
| Charging time | 24 h |
| Rated power in VA | 3.5 VA |
| Net weight | 0.25 kg |
| 9 mm pitches | 6 |
| Mounting support | DIN rail |
| [Ue] rated operational voltage | 220/240 V AC 45...60 Hz |
| Connections - terminals | screw terminal |
| Output voltage | 7.2 V DC |
| Environment | |
| Ambient air temperature for operation | 0-40 °C |
