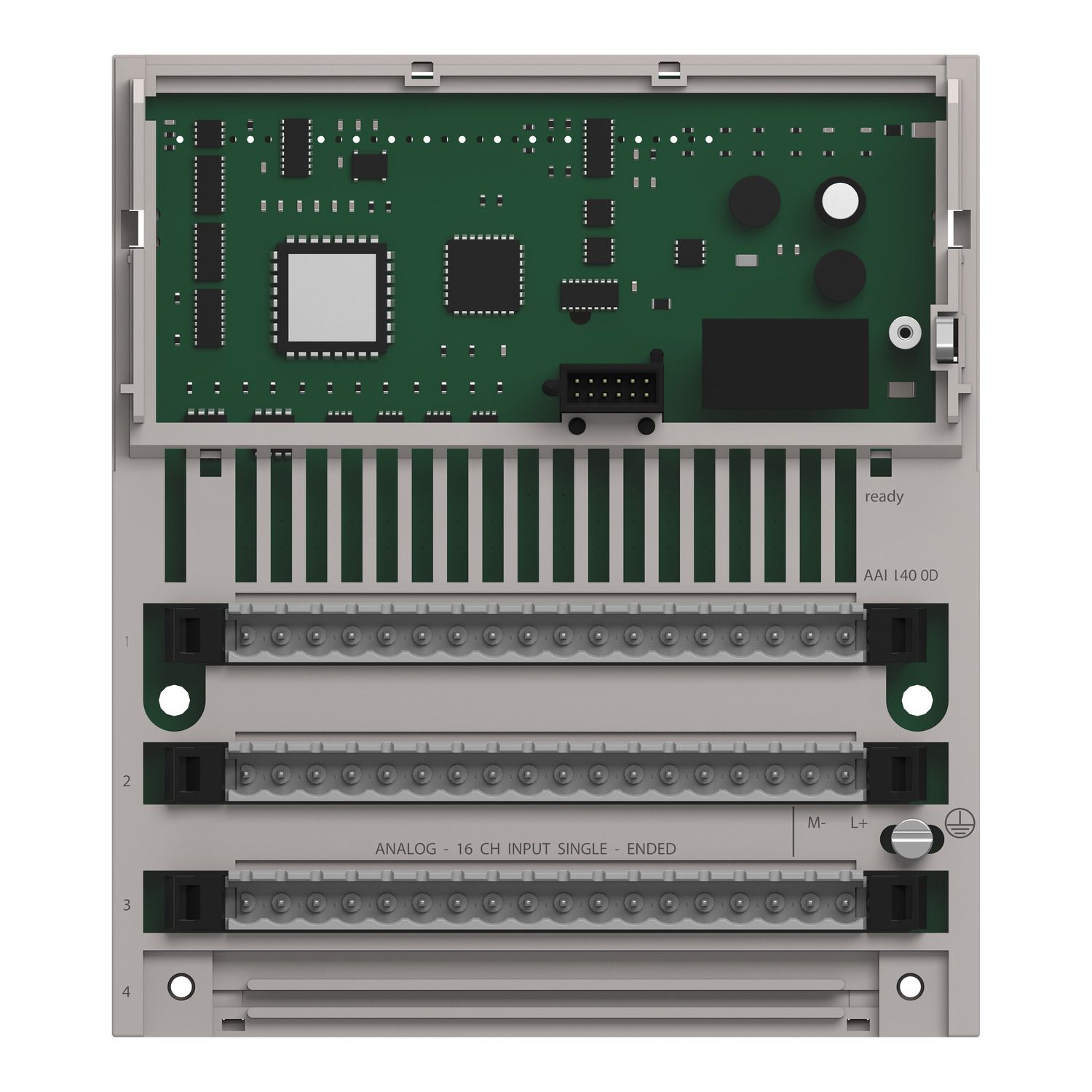

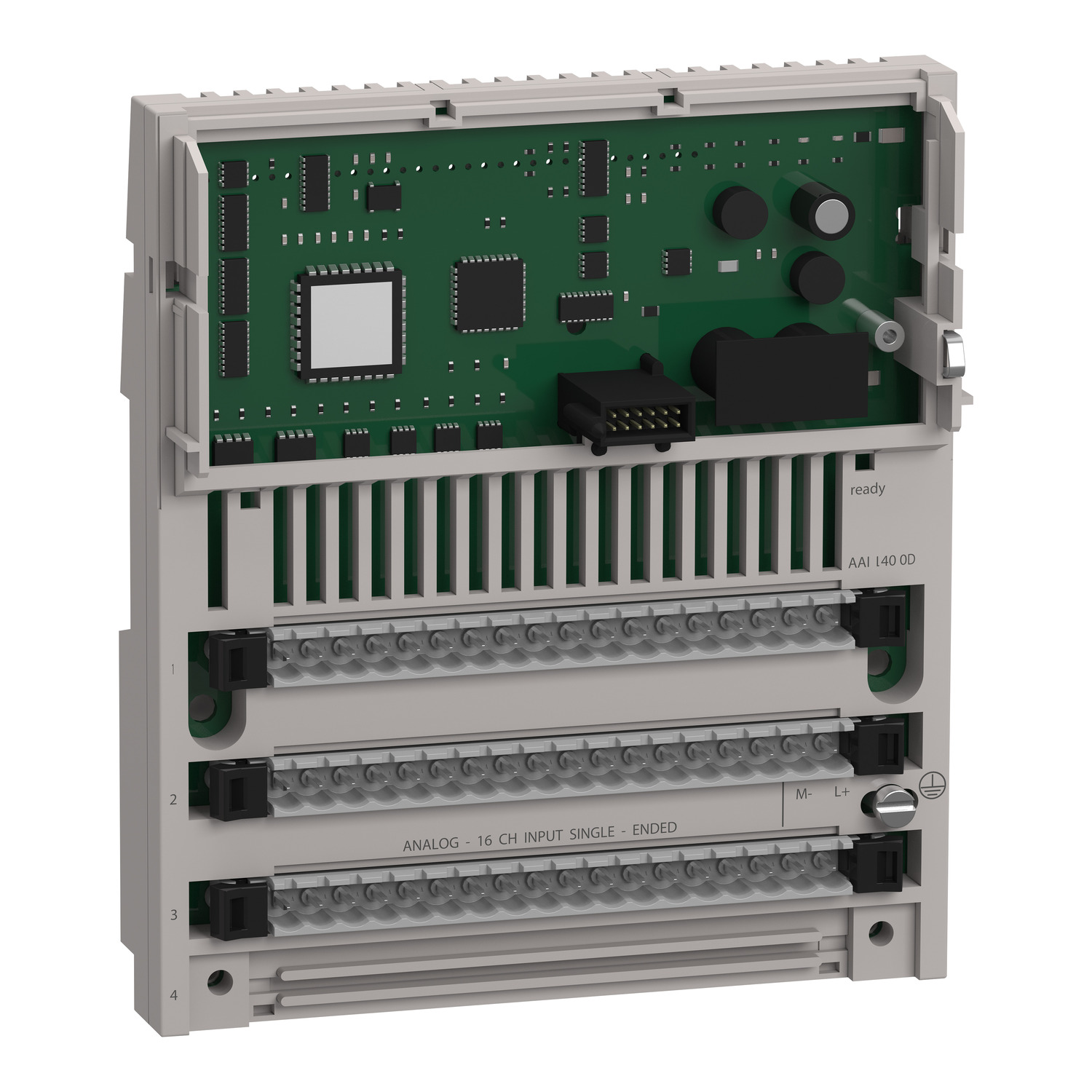

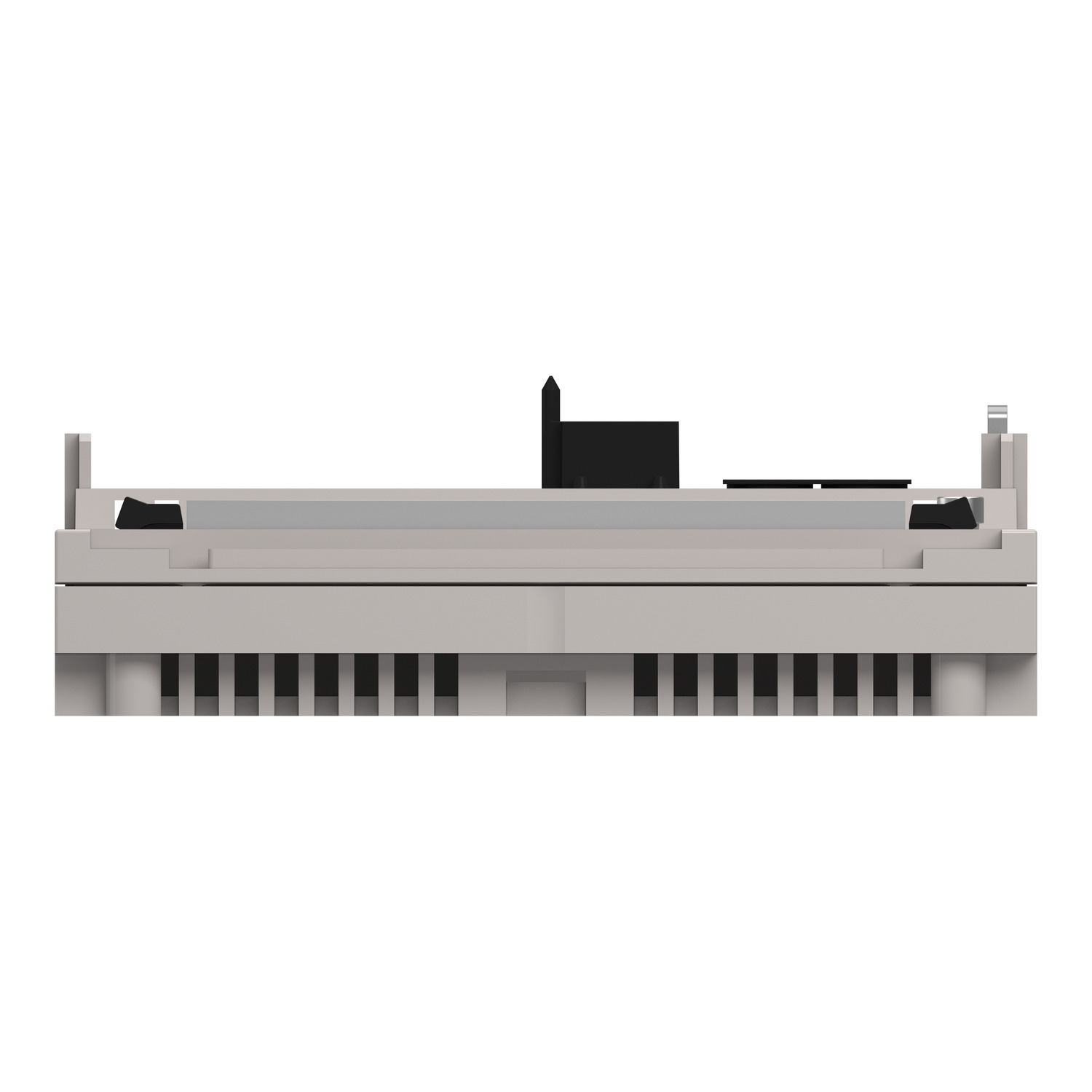

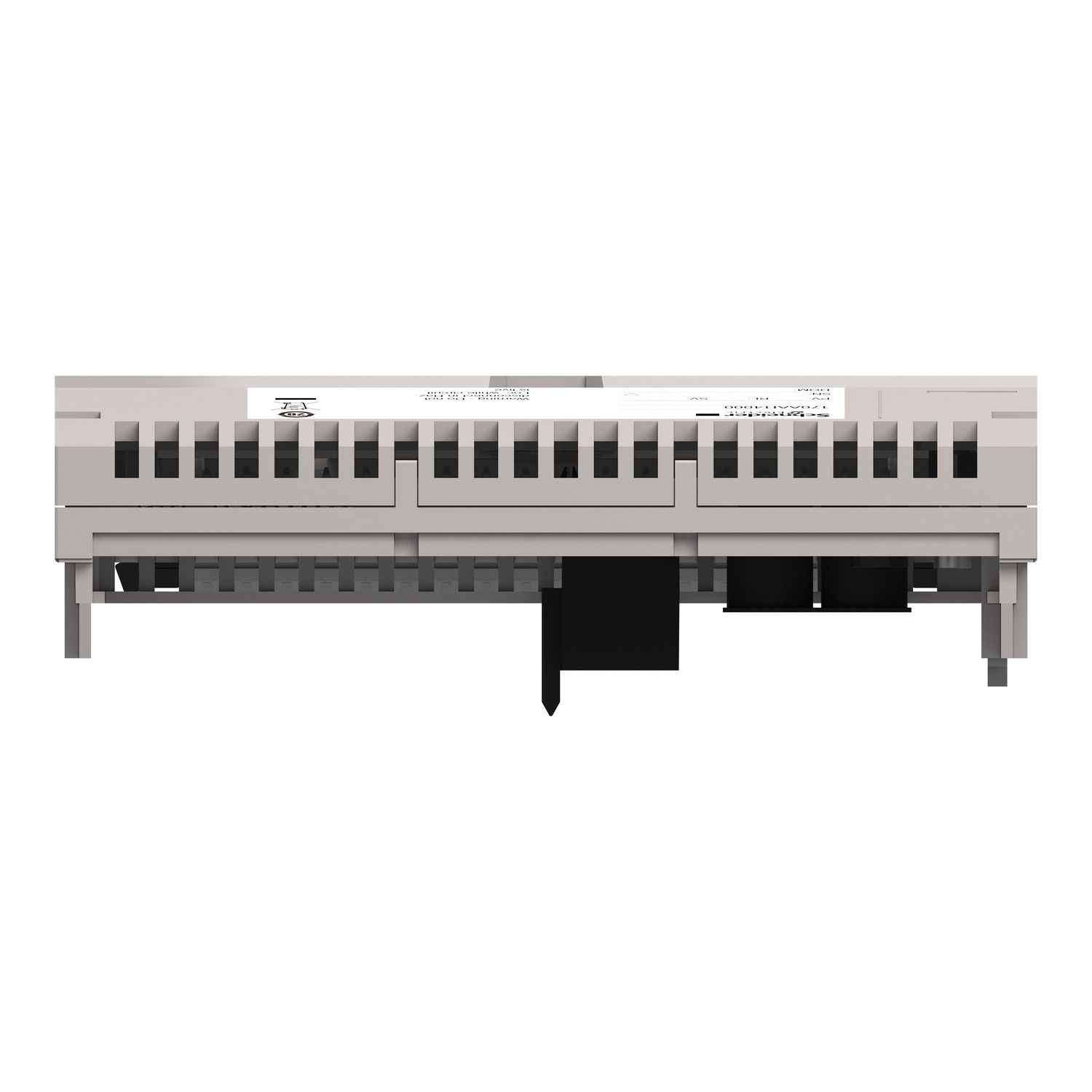

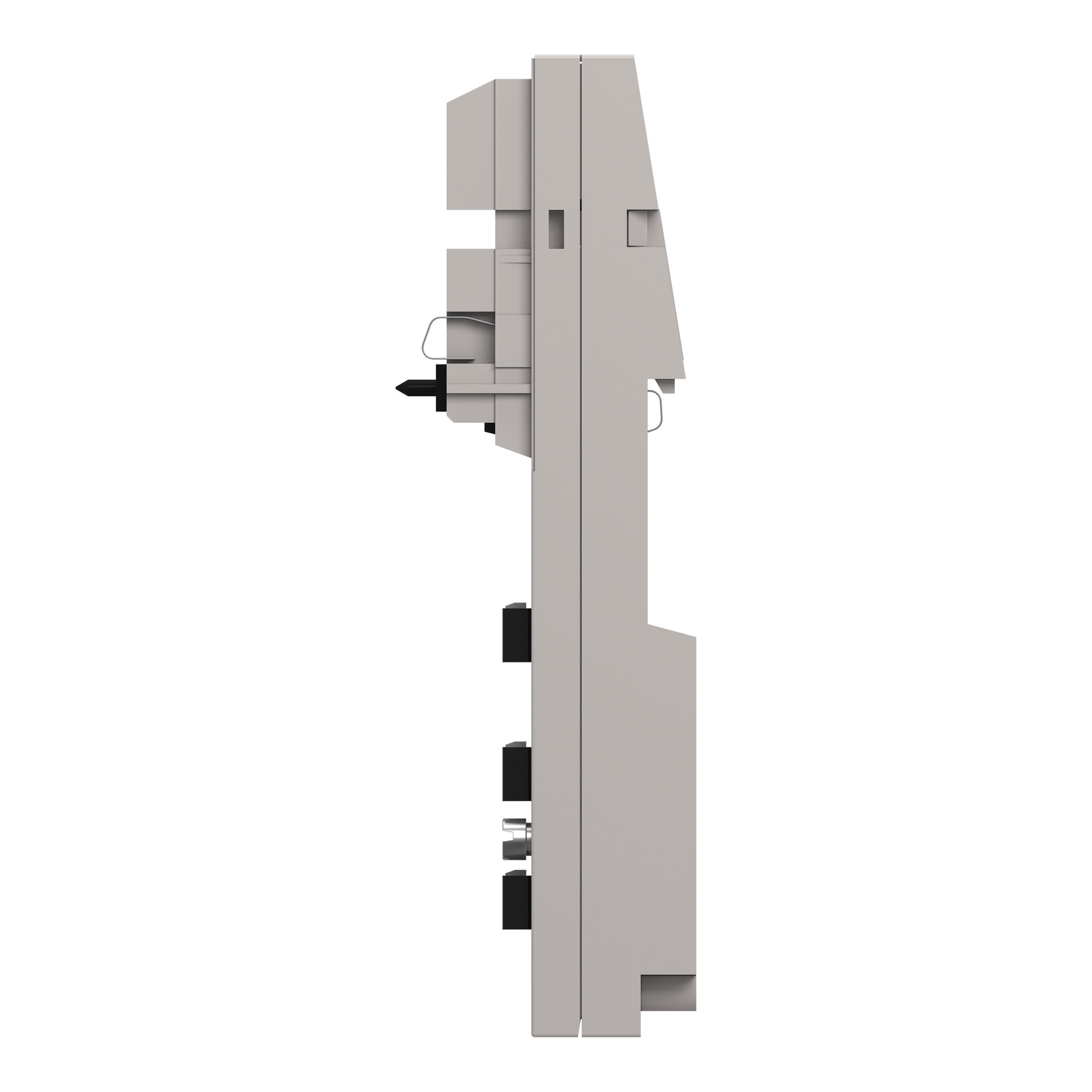

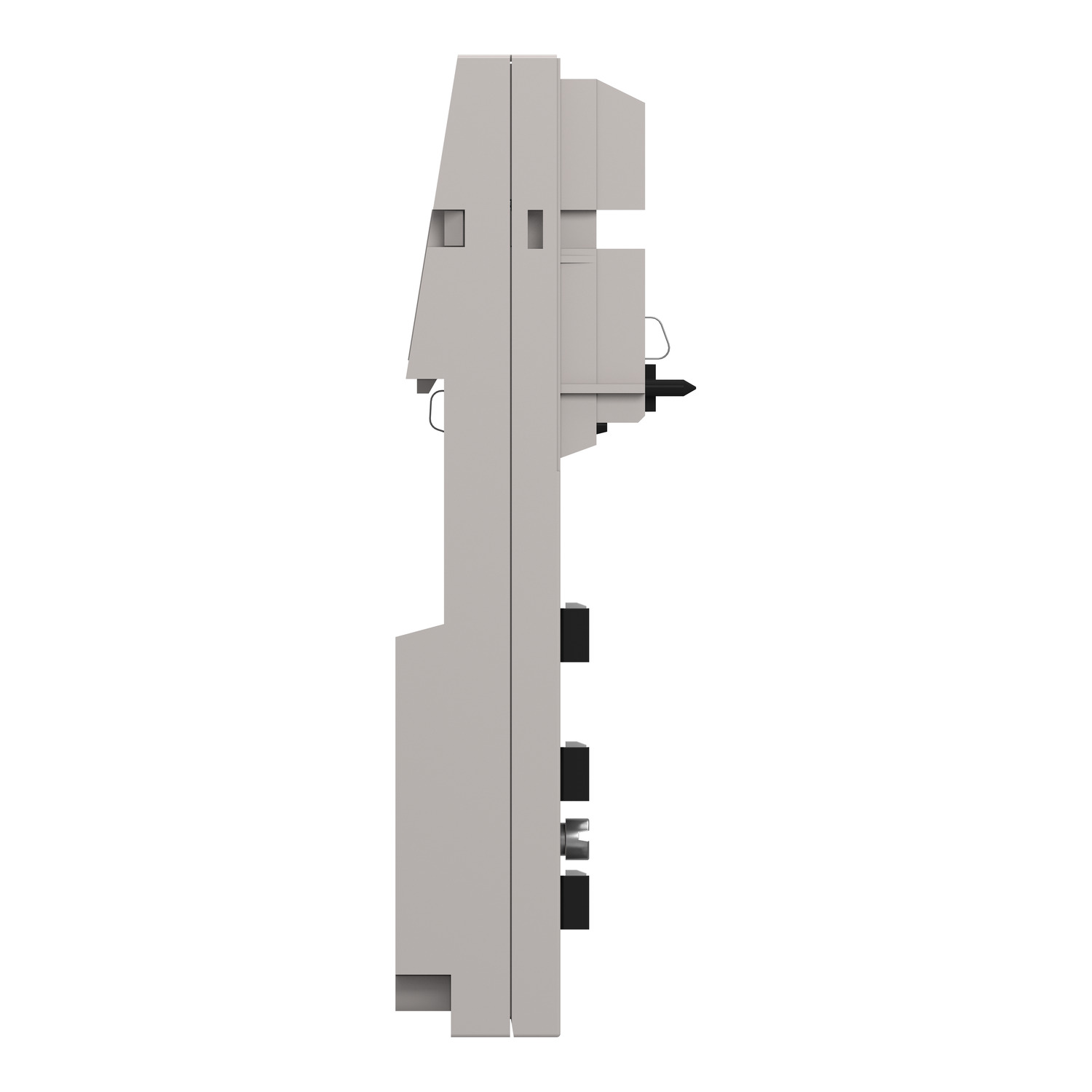

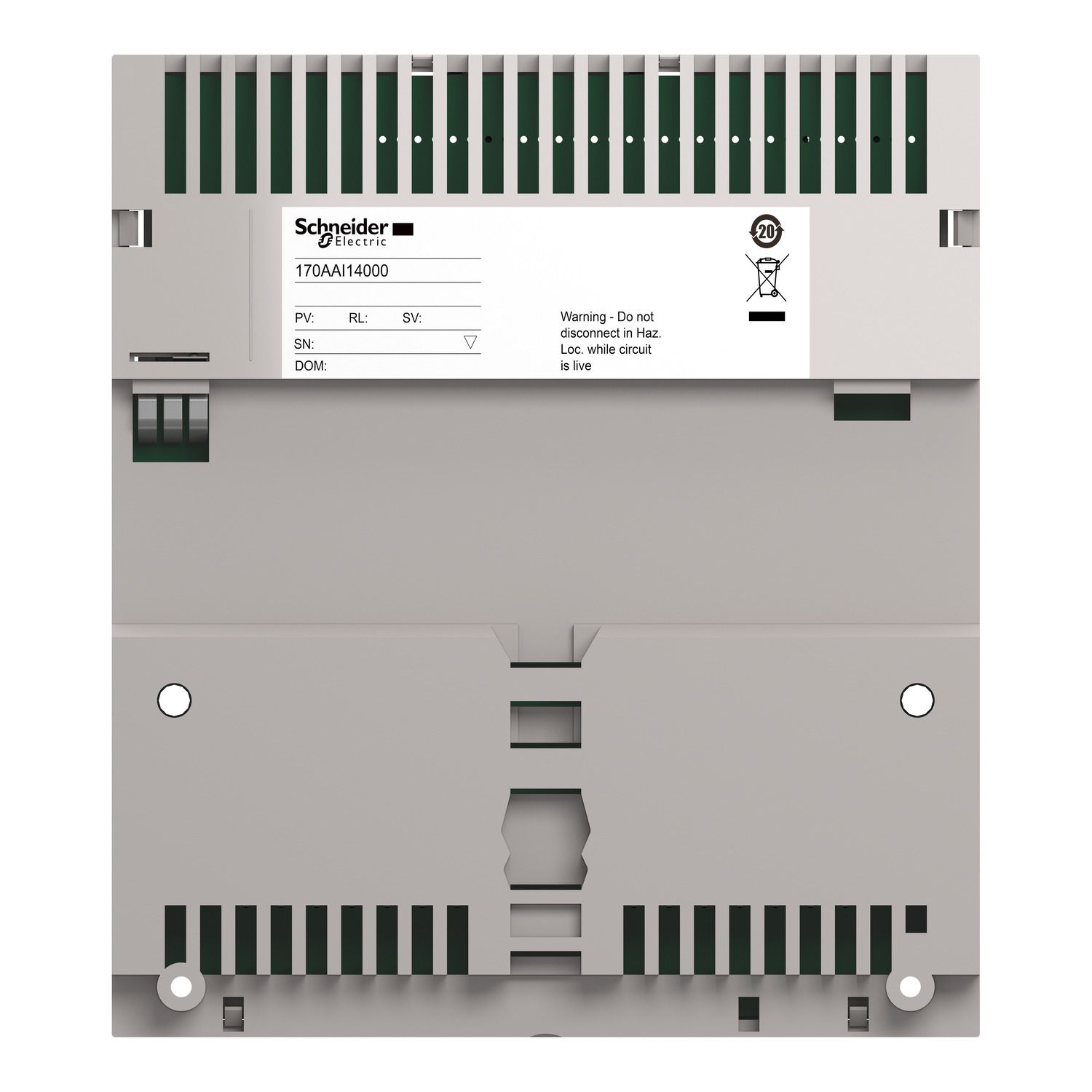

This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | single ended |
| Analogue input range | +/- 5 V 12 bits + sign > 2200 kOhm, +/- 10 V 12 bits + sign > 2200 kOhm, 4...20 mA 12 bits < 0.25 Ohm |
| Type of filter | low pass input filter 10 kHz |
| Range of product | Modicon Momentum automation platform |
| Analogue input number | 16 |
| Product or component type | analogue input base |
| Complementary | |
| Protection type | internal 2 A slow-blow |
| Update time | 25 ms |
| Maximum power dissipation in W | 5.55 W |
| Full scale | 5 V +/- 5 V, 16 mA 4...20 mA, 10 V +/- 10 V |
| Associated fuse rating | 500 mA, fast blow |
| Marking | CE |
| Data format | full 16 bits signed |
| Isolation between channels and ground | 1780 V AC for 1 minute |
| Temperature drift | 60 %oFS/°C 4...20 mA 60 °C, 30 %oFS/°C +/- 5 V 60 °C, 30 %oFS/°C +/- 10 V 60 °C |
| Height | 125 mm |
| Isolation between supply and ground | 500 V for 1 minute |
| Reverse polarity protection | internal |
| Depth | 47.5 mm |
| Width | 141.5 mm |
| Local signalling | 16 LEDs for channel status |
| Permissible common mode voltage | 250 V 47...63 Hz AC between channels to ground, 100 V 47...63 Hz DC between channels to ground |
| Absolute accuracy error | +/- 0.45 % full scale 60 °C 4...20 mA, +/- 0.25 % full scale 60 °C +/- 5 V, +/- 0.25 % full scale 60 °C +/- 10 V, +/- 0.25 % full scale 25 °C 4...20 mA, +/- 0.15 % of full scale 25 °C +/- 5 V, +/- 0.15 % of full scale 25 °C +/- 10 V |
| Net weight | 0.215 kg |
| External power requirement | +/- 30 V DC |
| Current consumption | 305 mA at 24 V DC |
| Electrical connection | 2 connectors for removable terminal blocks |
| Environment | |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | <= 5000 m |
| Product certifications | CSA, FM Class 1 Division 2, UL |
