Products specifications

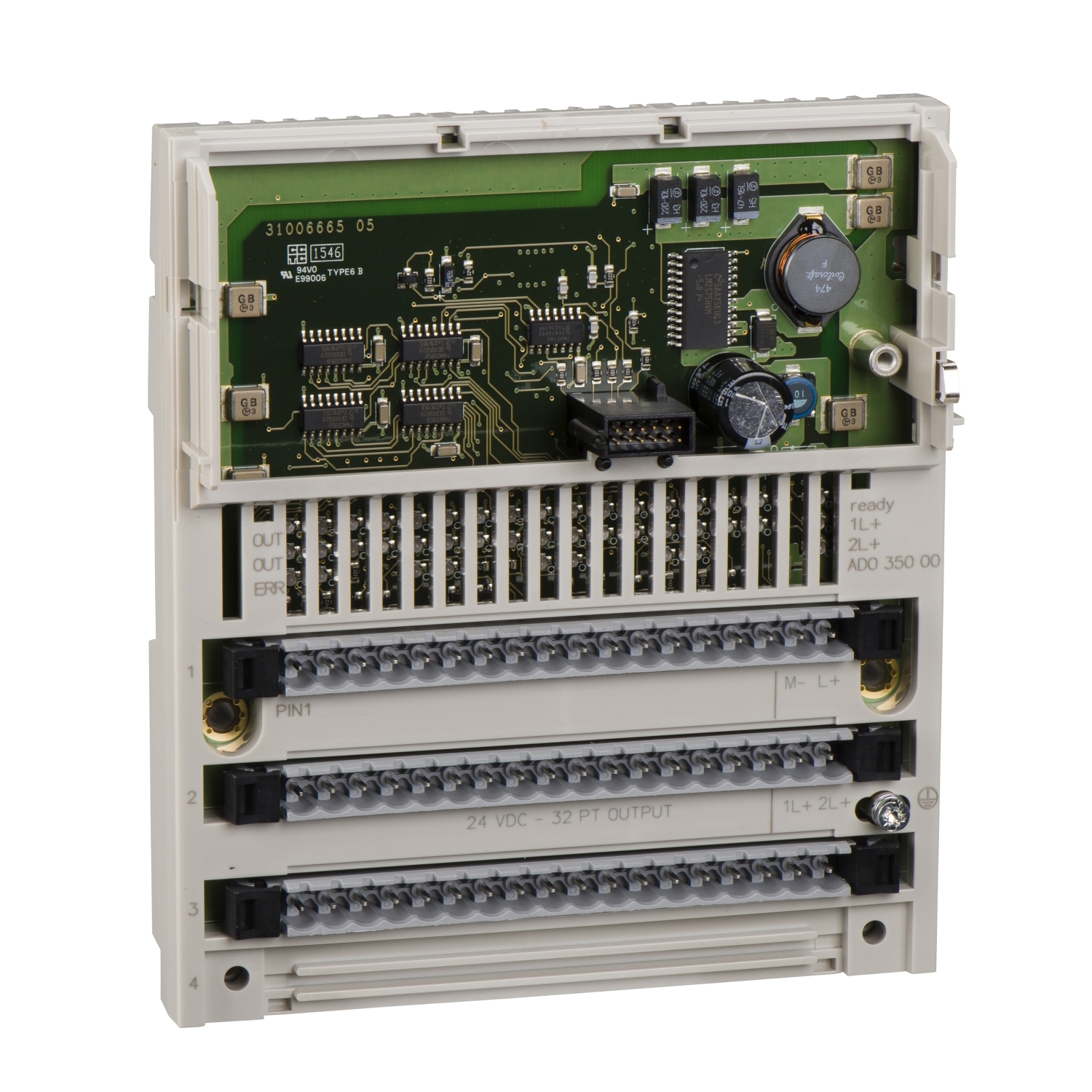

| Attribute name | Attribute value |
|---|---|
| Main | |
| Protective treatment | TC |
| Short-circuit protection | internal fuse, 5 A slow-blow per group |
| Discrete output number | 16 |
| Discrete output voltage | 230 V AC |
| Product or component type | discrete output base AC |
| Current per channel | 0.5 A |
| Range of product | Modicon Momentum automation platform |
| Group of channels | 2 groups of 8 outputs |
| Discrete output type | triac |
| Complementary | |
| Isolation between channels and bus | 1780 V AC for 1 minute |
| Depth | 47.5 mm |
| Width | 125 mm |
| Output overload protection | internal fuse |
| Local signalling | 16 LEDs for channel status |
| Maximum leakage current | 2.4 mA 230 V AC |
| Net weight | 0.284 kg |
| Discrete output current | 8 A per module, 4 A per group |
| Marking | CE |
| Surge current | 5 A for 3 cycles, 15 A for 1 cycle, 10 A for 2 cycles |
| Current consumption | 65 mA at 230 V AC |
| Response time | 1/2 x 1/f (= 0.5 of one line cycle) from state 1 to state 0, 1/2 x 1/f (= 0.5 of one line cycle) from state 0 to state 1 |
| Maximum voltage drop | <1.5 V 0.5 A at state 1 |
| Terminals description PLC n°1 | (3)OUT_DIS#3, (15)OUT_DIS#15, (14)OUT_DIS#14, (16)OUT_DIS#16, (12)OUT_DIS#12, TB, (4)OUT_DIS#4, (13)OUT_DIS#13, (11)OUT_DIS#11, (1L+)PW, (1N)PW, (9)OUT_DIS#9, (5)OUT_DIS#5, (2)OUT_DIS#2, (8)OUT_DIS#8, (1)OUT_DIS#1, (6)OUT_DIS#6, (10)OUT_DIS#10, (7)OUT_DIS#7 |
| [Ue] rated operational voltage | 230 V AC |
| Minimum output current | 30 mA |
| Height | 141.5 mm |
| Power dissipation | 7.5 W maximum, 6 W typical |
| Environment | |
| Operating altitude | <= 5000 m |
| Resistance to electrostatic discharge | 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2 |
| Relative humidity | 95-95 % without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | FM Class 1 Division 2, CSA, UL |
