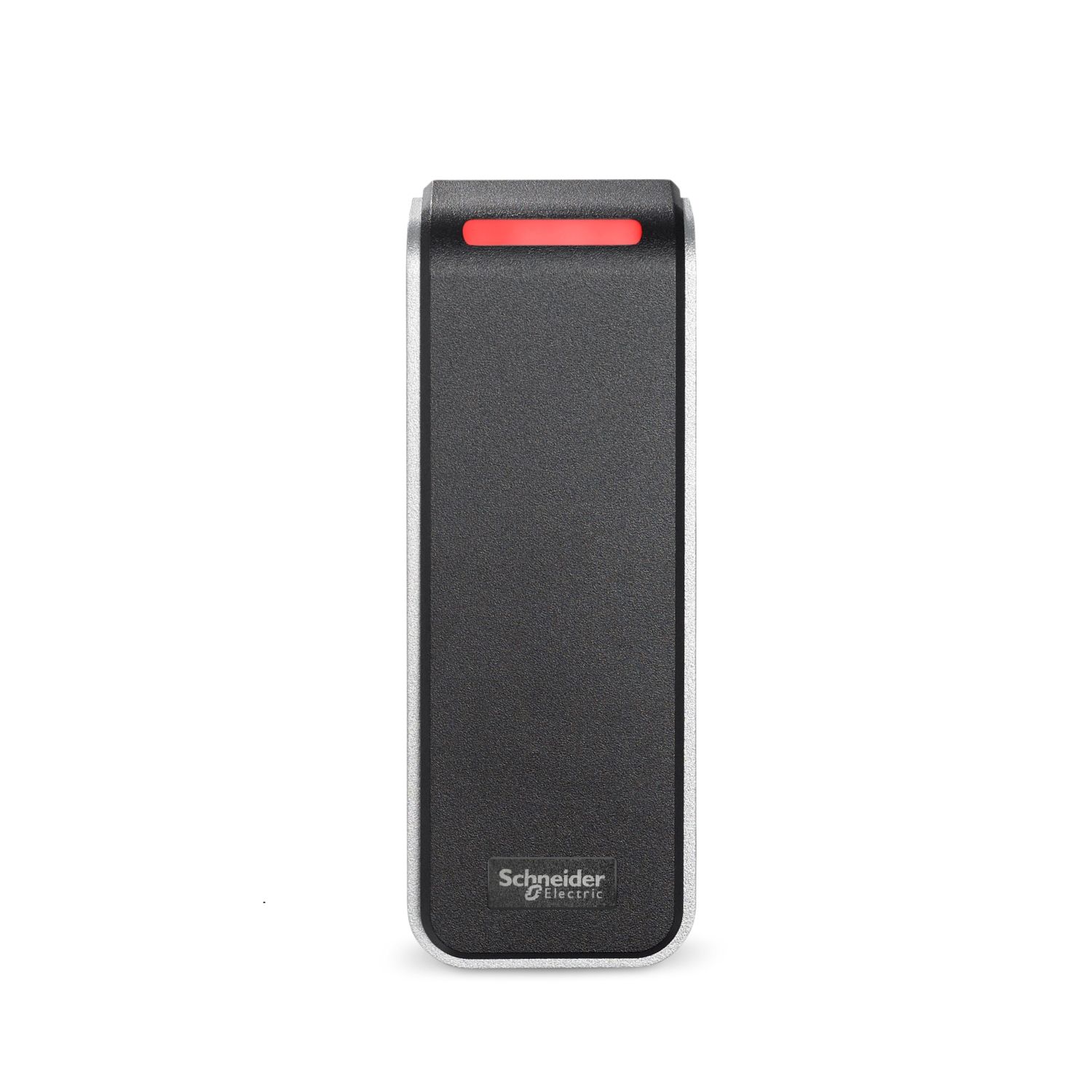

HID Signo 20 Mullion Reader, Pigtail, Standard profile, Andover 37 format, Multi Tech
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | access control |
| Depth | 19.5 mm |
| Width | 119.5 mm |
| [In] rated current | 80 mA |
| Electrical connection | pigtail connector |
| IP degree of protection | IP65 |
| Relative humidity | 0-95 % RH, non-condensing |
| Technology type | iCLASS Seos, bluetooth, Continuum Indala, HID Prox |
| Ambient air temperature for storage | -40-85 °C |
| Colour | black and silver |
| Mounting mode | wall-mounted |
| Reading distance | 6...10 cm for |
| Current consumption | 250 mA |
| Net weight | 95 g |
| Status LED | tricolor LED |
| Product or component type | reader |
| RFID frequency | 2.4 GHz, 13.56 MHz, 125 kHz |
| Standards | UL 294 |
| Communication port protocol | OSDP, Wiegand, Bluetooth |
| Maximum cable distance between devices | 152 m |
| Ambient air temperature for operation | -35-66 °C |
| Height | 121.5 mm |
| [Us] rated supply voltage | 12 V DC |
| Product certifications | UL |
| Range | Signo |
| Model | Signo 20 |
