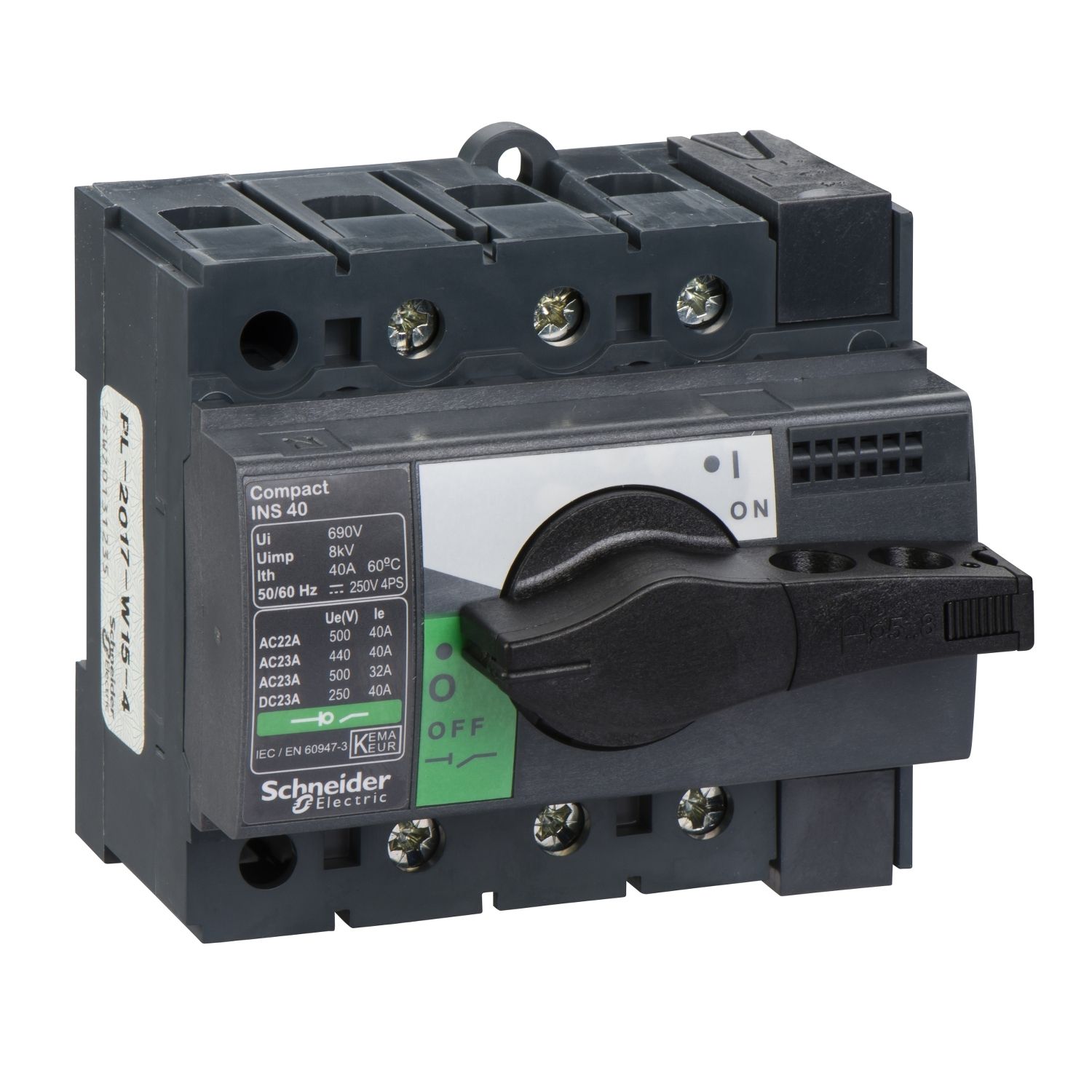

This Compact INS40 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS40 is a class II insulation level front-face device as per IEC 60664 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | Compact INS40 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | DC-23A: 40 A DC 125 V 2 poles in series, DC-22A: 40 A DC 50/60 Hz 125 V 2 poles in series, AC-23A: 40 A AC 50/60 Hz 440/480 V, AC-23A: 40 A AC 50/60 Hz 380/415 V, AC-23A: 40 A AC 50/60 Hz 220/240 V, AC-23A: 32 A AC 50/60 Hz 500 V, AC-22A: 40 A AC 50/60 Hz 500 V, AC-22A: 40 A AC 50/60 Hz 440/480 V, AC-22A: 40 A AC 50/60 Hz 380/415 V 2 poles in series, AC-22A: 40 A AC 50/60 Hz 220/240 V |
| Suitability for isolation | yes |
| Pollution degree | 3 |
| Switch-disconnector name | Compact INS40 |
| Range | ComPacT |
| [Ith] conventional free air thermal current | 40 A at 60 °C |
| Range of product | INS40...160 |
| Poles description | 3P |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity | 75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz, 15 kA switch-disconnector alone 500 V AC at 50/60 Hz |
| Product name | ComPacT INS |
| Product or component type | switch disconnector |
| Visible break | no |
| Network type | AC, DC |
| Contact position indicator | yes |
| [Ue] rated operational voltage | 500 V AC 50/60 Hz, 125 V DC |
| Network frequency | 50/60 Hz |
| Complementary | |
| Rated duty | uninterrupted |
| [Icw] rated short-time withstand current | 5.5 kA during 30 s conforming to IEC 60947-3, 3 kA during 1 s conforming to IEC 60947-3, 1.73 kA during 3 s conforming to IEC 60947-3, 0.067 kA during 20 s conforming to IEC 60947-3 |
| Compatibility code | INS40 |
| Cable cross section | 1.5-50 mm² |
| Electrical durability | DC-23A: 1500 cycles 250 V DC 2 poles in series, DC-22A: 1500 cycles 250 V DC 50/60 Hz 2 poles in series, AC-23A: 1500 cycles 500 V AC 50/60 Hz, AC-23A: 1500 cycles 440 V AC 50/60 Hz, AC-23A: 1500 cycles 380/415 V AC 50/60 Hz, AC-23A: 1500 cycles 220/240 V AC 50/60 Hz, AC-22A: 1500 cycles 500 V AC 50/60 Hz, AC-22A: 1500 cycles 440 V AC 50/60 Hz, AC-22A: 1500 cycles 380/415 V AC 50/60 Hz 2 poles in series, AC-22A: 1500 cycles 220/240 V AC 50/60 Hz |
| Mounting mode | fixed |
| Upside connection | front |
| Control type | rotary handle |
| Downside connection | front |
| Connection pitch | 18 mm |
| Intermittent duty class | class 120 - 60 % |
| Height | 85 mm |
| Maximum power | AC-23: 22 kW at 440 V AC 50/60 Hz, AC-23: 20 kW at 380/415 V AC 50/60 Hz, AC-23: 18.5 kW at 500/525 V AC 50/60 Hz, AC-23: 11 kW at 220/240 V AC 50/60 Hz |
| Depth | 62.5 mm |
| Width | 90 mm |
| Enclosure dimensions for Ithe | 190 mm x 115 mm x 55 mm |
| Mechanical durability | 20000 cycles |
| Net weight | 0.5 kg |
| Handle colour | black |
| Mounting support | plate, DIN rail |
| Environment | |
| Ambient air temperature for storage | -50-85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK07 conforming to EN 50102 |
| Standards | IEC 60947-3, IEC 60947-1 |
| Product certifications | CCC, KEMA-KEUR |
