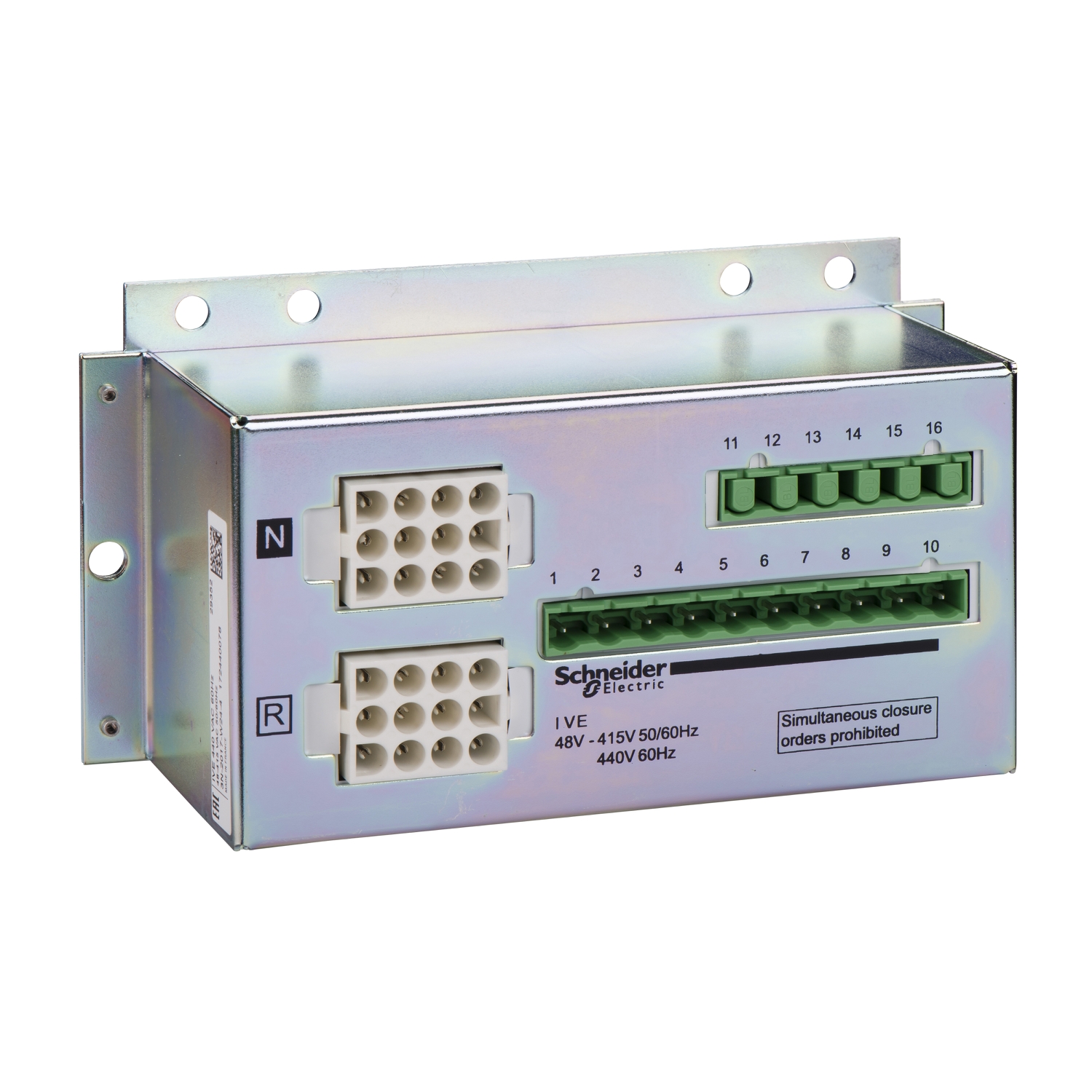

It is an IVE integrated control circuit for the electrical interlocking of Compact NSX, Compact NS and Masterpact devices. The electrical interlocking is used with a mechanical interlocking system. The relays controlling the closing order to the “N” and “R” circuit breakers must be mechanically and/or electrically interlocked to prevent them from giving simultaneous closing commands. The control voltage is from 48VAC to 415VAC 50/60Hz, or 440VAC 60Hz.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 48...415 V AC at 50/60 Hz, 440 V AC at 60 Hz |
| Device short name | IVE |
| Device application | interlocking |
| Range | TransferPacT, ComPacT, MasterPacT |
| Product or component type | electrical interlocking with plate |
| Accessory / separate part category | interlocking accessory |
| Range compatibility | Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker |
| Range of product | MasterPact NW, NS100...250, MasterPact NT, NS630b...1600, NSX100...250, NSX400...630 |
| Complementary | |
| Product compatibility | Compact NS630b...1600, Compact NSX100...250, Compact NSX400...630 |
| Range compatibility | MasterPact NT, MasterPact NW, Compact NS, Compact NSX |
| Control type | remote control |
