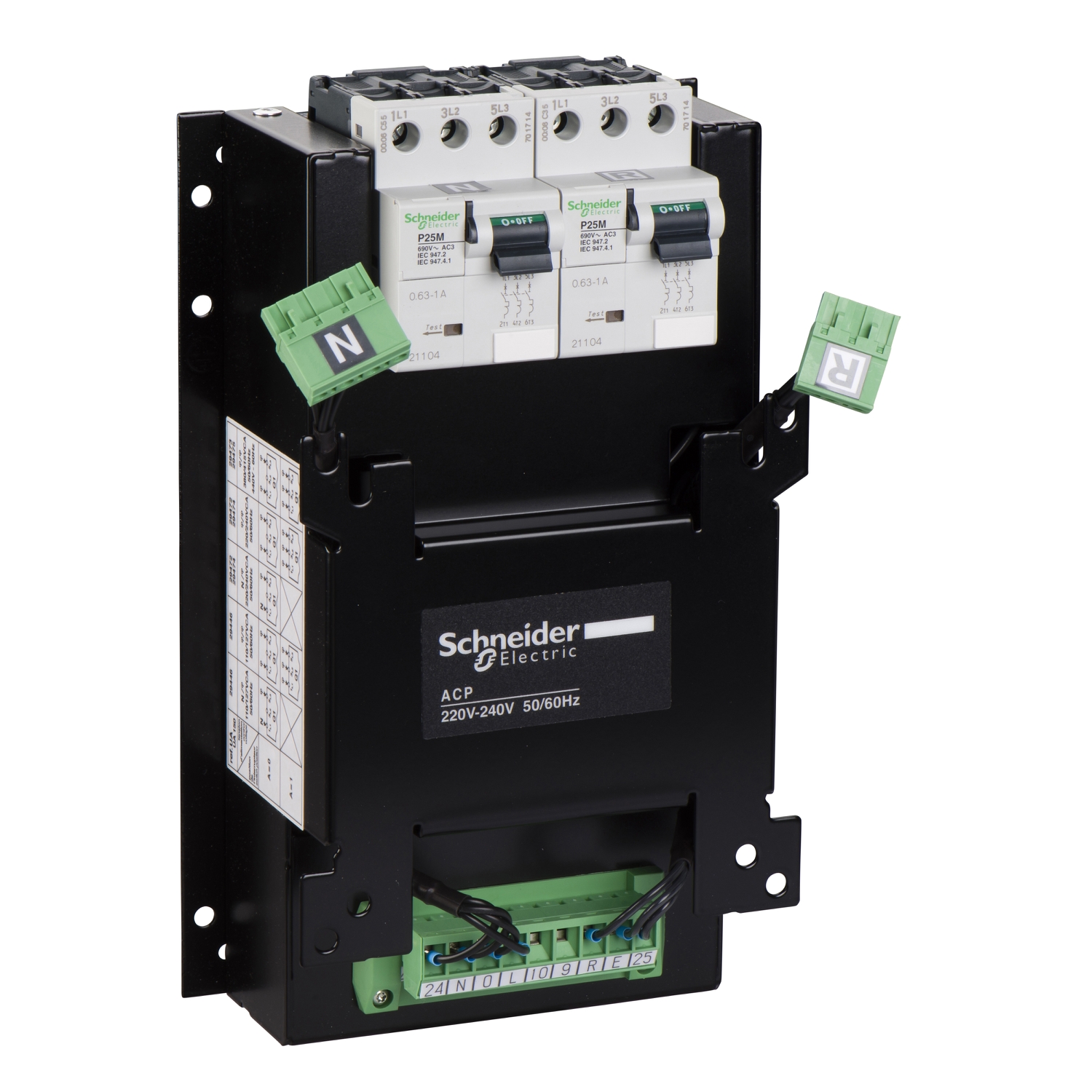

It is a control plate for source changeover system using ComPact NSX, ComPact NS and MasterPact devices. This ACP provides in a single unit the protection of the controller, the control and the connection to the devices. The control voltages are 110 VAC 50/60 Hz, 220 to 240 VAC 50/60 Hz, 380 to 415 VAC 50/60 Hz.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 440 V AC at 60 Hz, 380...415 V AC at 50/60 Hz |
| Device short name | ACP |
| Range | ComPacT |
| Product or component type | control plate |
| Accessory / separate part category | interlocking accessory |
| Range compatibility | Masterpact MasterPact NW switch disconnector, Masterpact MasterPact NW circuit breaker, Masterpact MasterPact NT switch disconnector, Masterpact MasterPact NT circuit breaker, ComPact ComPact NSX circuit breaker, ComPact ComPact NS circuit breaker |
| Range of product | NSX100...250, MasterPact NT, MasterPact NW, Compact NS100...630, NSX400...630, ComPact NS630b...1600 |
| Complementary | |
| Product compatibility | Compact NS630b...1600, Compact NSX100...250, Compact NSX400...630 |
| Input type | contacts customer voluntary order to transfer to source R |
| Selection modes | circuit breaker on R, circuit breaker on N |
| Output type | contacts customer: indication of operation in automatic or stop mode |
| Interlocked device | MasterPact NT, Compact NS100...630, Compact NS630b...1600, NSX100...250, NSX400...630, MasterPact NW |
| Environment | |
| IP degree of protection | IP30 side: conforming to EN 60529, IP40 front: conforming to EN 60529, IP20 connectors: conforming to EN 60529 |
| IK degree of protection | front: IK07 conforming to EN 50102 |
