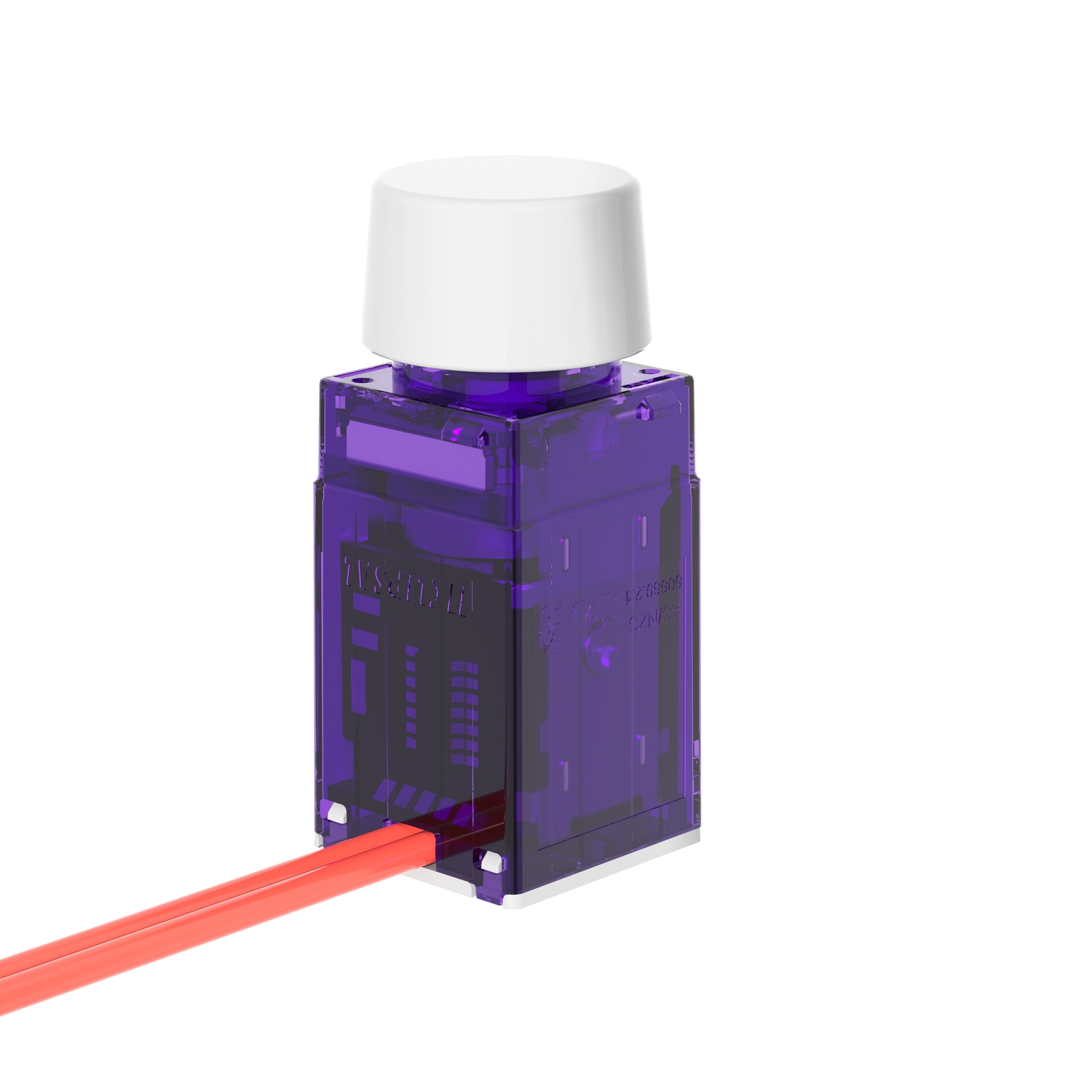

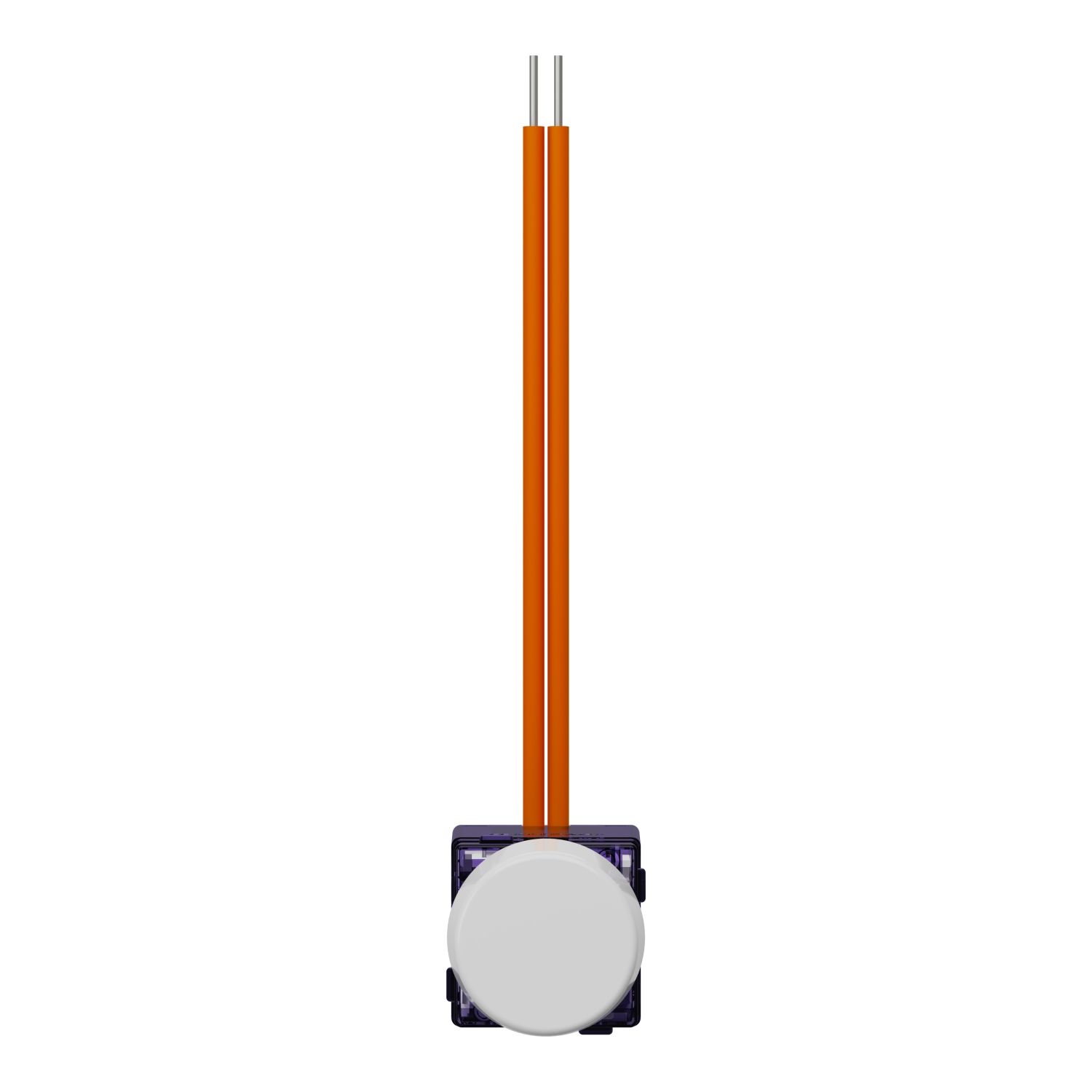

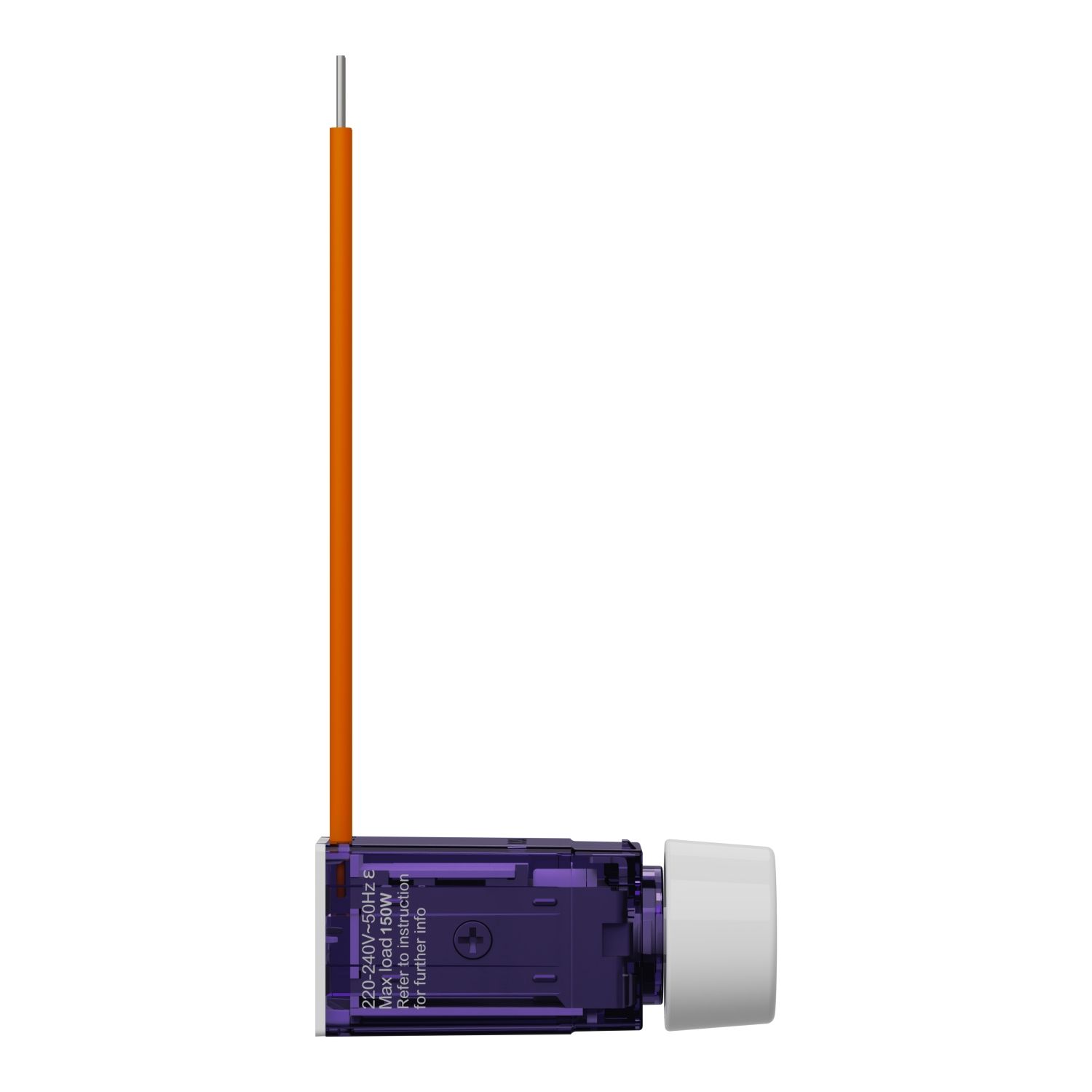

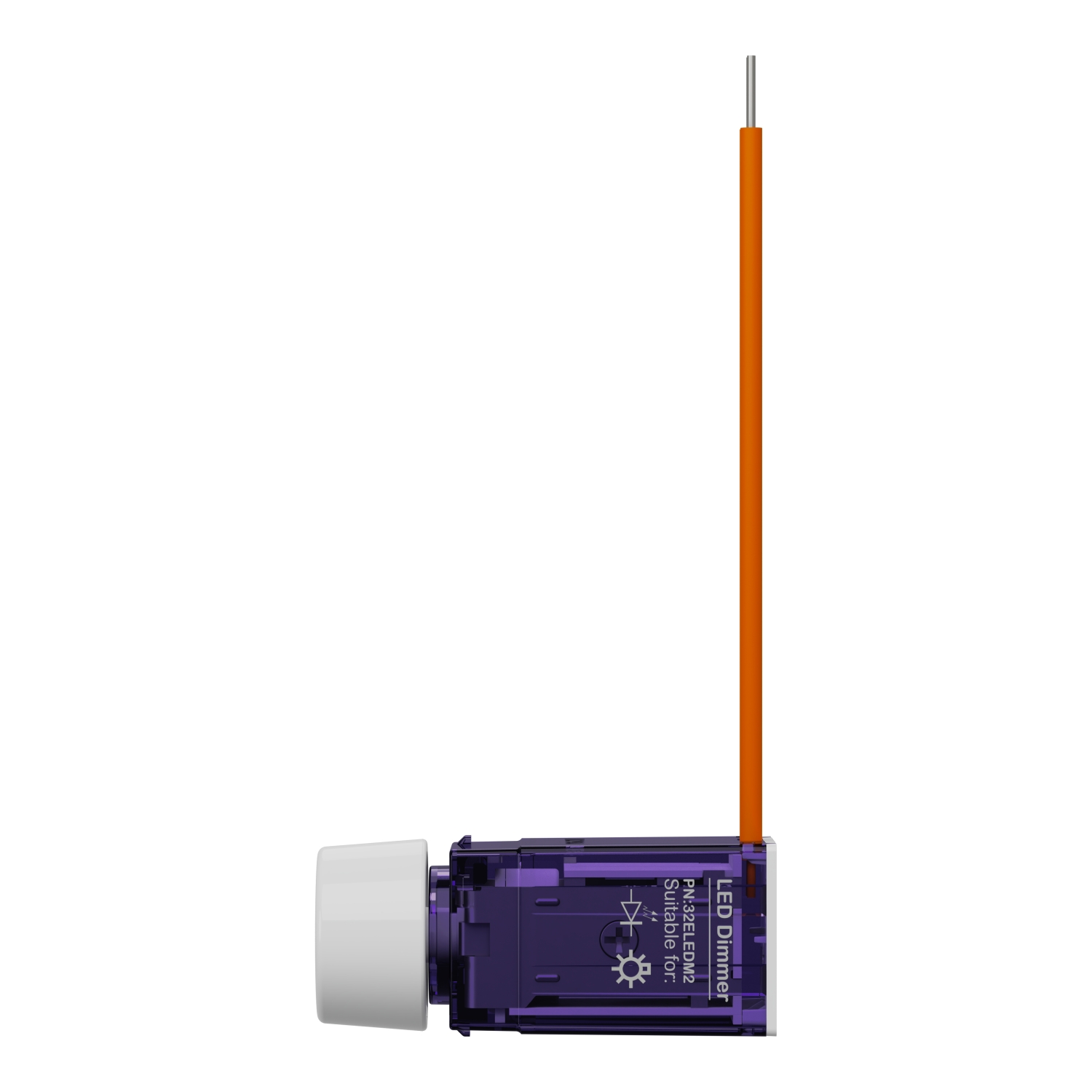

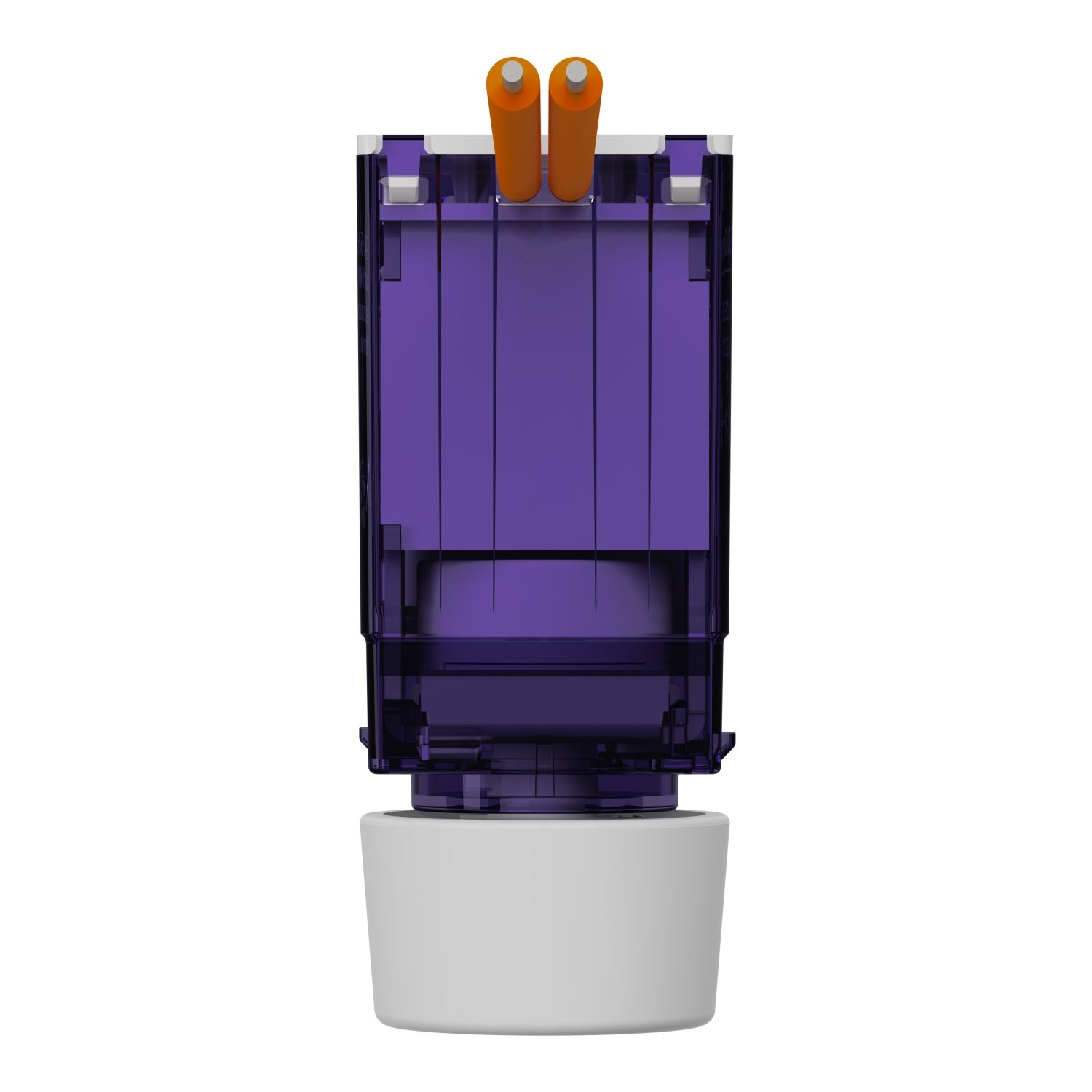

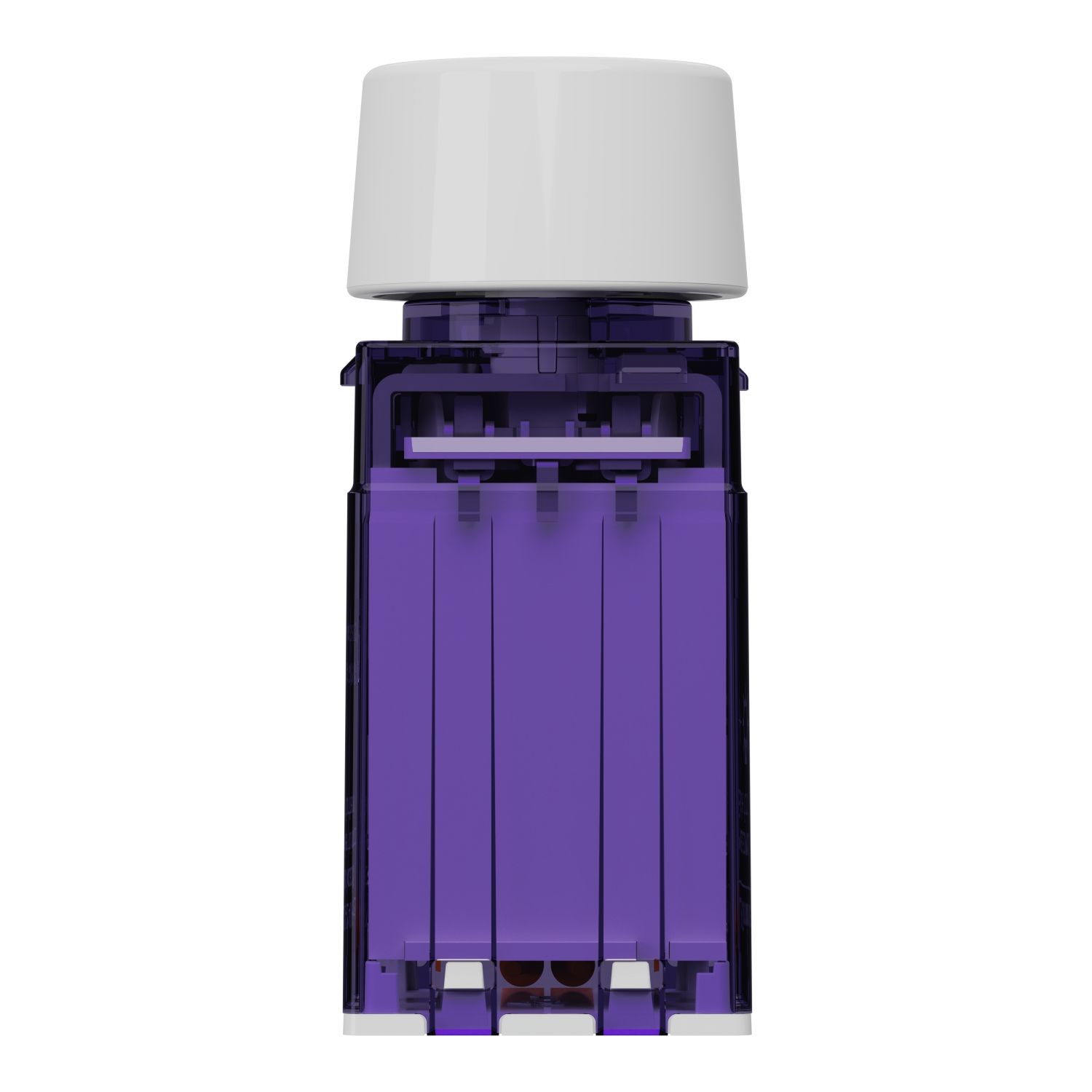

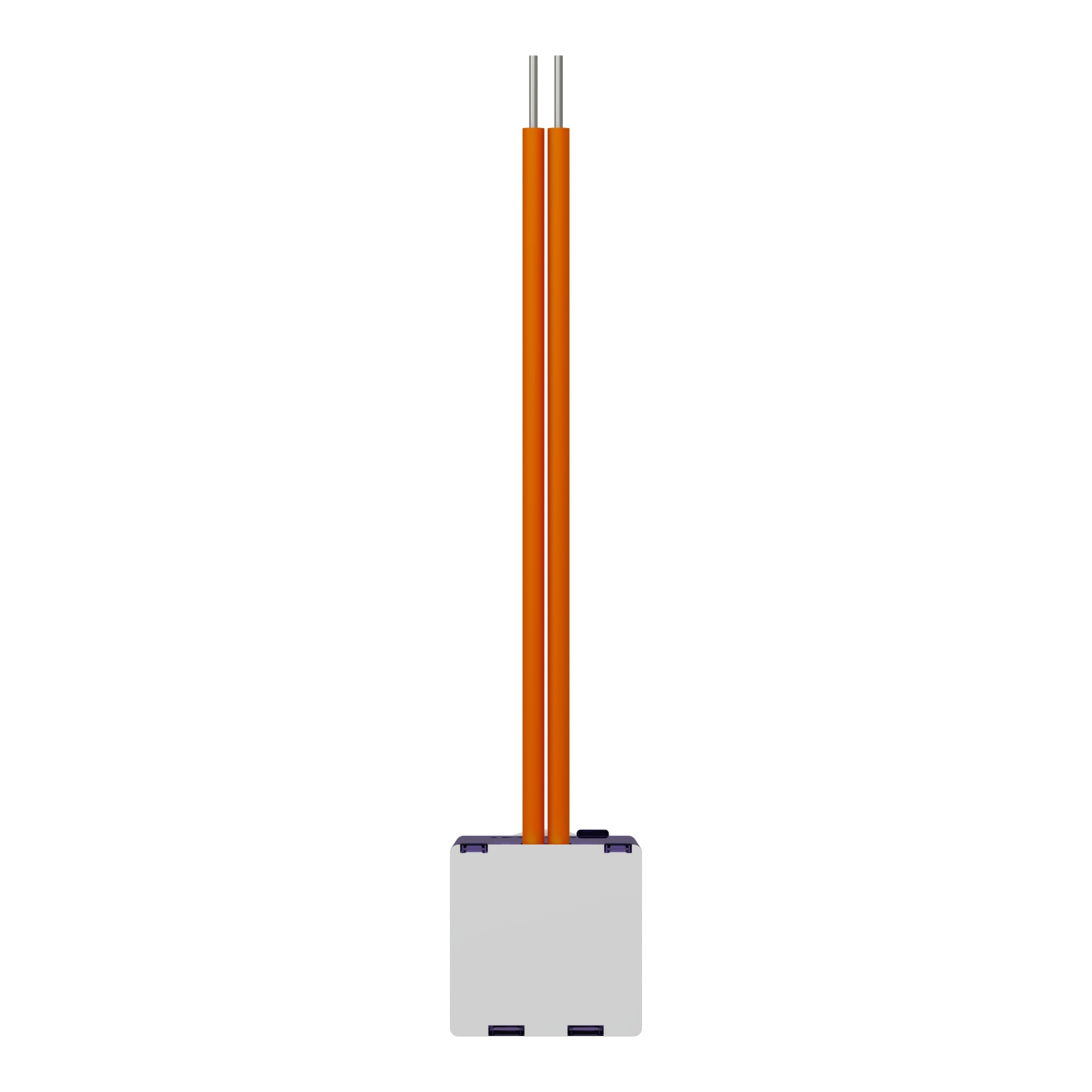

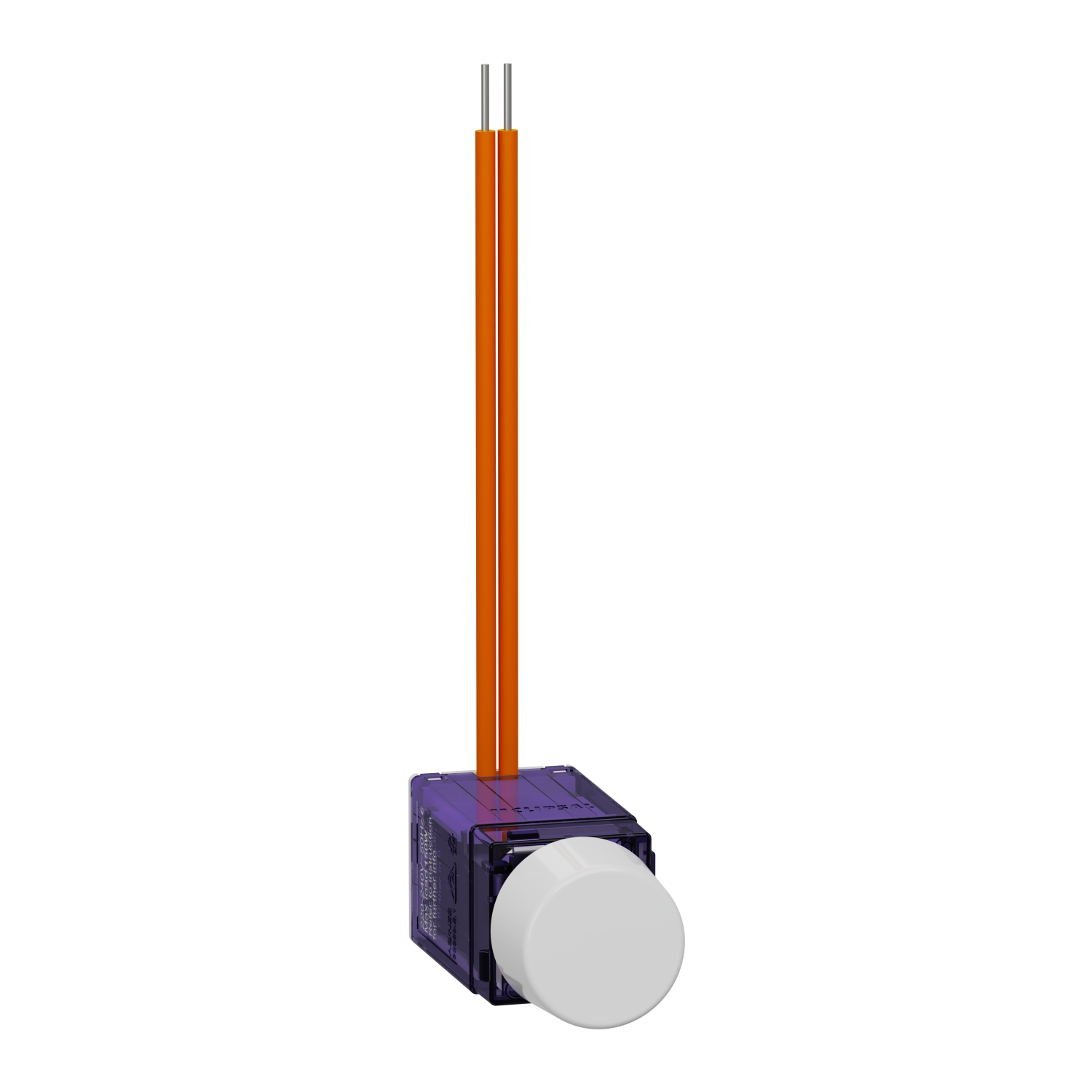

The Clipsal 30 Series module Rotary LED Dimmer is used for lighting control. The dimmer comes with the option to adjust the minimum brightness level. This dimmer comes with a rotary knob. It is suitable for Clipsal C2000. It requires a separate switch for operating. It requires installation by an appropriately licensed electrician. The operating voltage is 240VAC and the frequency is 50Hz. The load rating is 150W dimmable LED. The dimension of the product is (W) 22.84mm x (H) 22.84mm x (D) 54.7mm. The Embedded depth is 39mm. The color of this device is white electric with a glossy finish.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device presentation | mechanism |
| Range | 30 Series |
| Dimmer type | trailing edge |
| Range of product | 30 Series |
| Load type | incandescent - 150 W, dimmable LED - 150 W |
| Type of packing | box |
| Colour tint | white electric (WE) |
| Product or component type | dimmer |
| Complementary | |
| Main colour tint | white electric |
| Range compatibility | Clipsal |
| [Ue] rated operational voltage | 220...240 V AC 50 Hz 150 W |
| Protection type | thermal protection, overload protection, short-circuit |
| Ambient air temperature for storage | 0-60 °C |
| Relative humidity | 5-90 % |
| Function available | brightness adjustment |
| Surface finish | glossy |
| Ambient air temperature for operation | 0-45 °C |
| Height | 22.84 mm |
| Depth | 54.7 mm |
| Width | 22.84 mm |
| Material | PC MAS056 (UL94 V-2): bottom, PC (UL94 V-2): top |
| Dimmer control | rotary |
| Fixing mode | clip-in |
| Embedding depth | 39 mm |
| Connections - terminals | 2-wire supply |
| Environment | |
| IP degree of protection | IP20 |
| Standards | AS/NZS 60669.2.1 |
