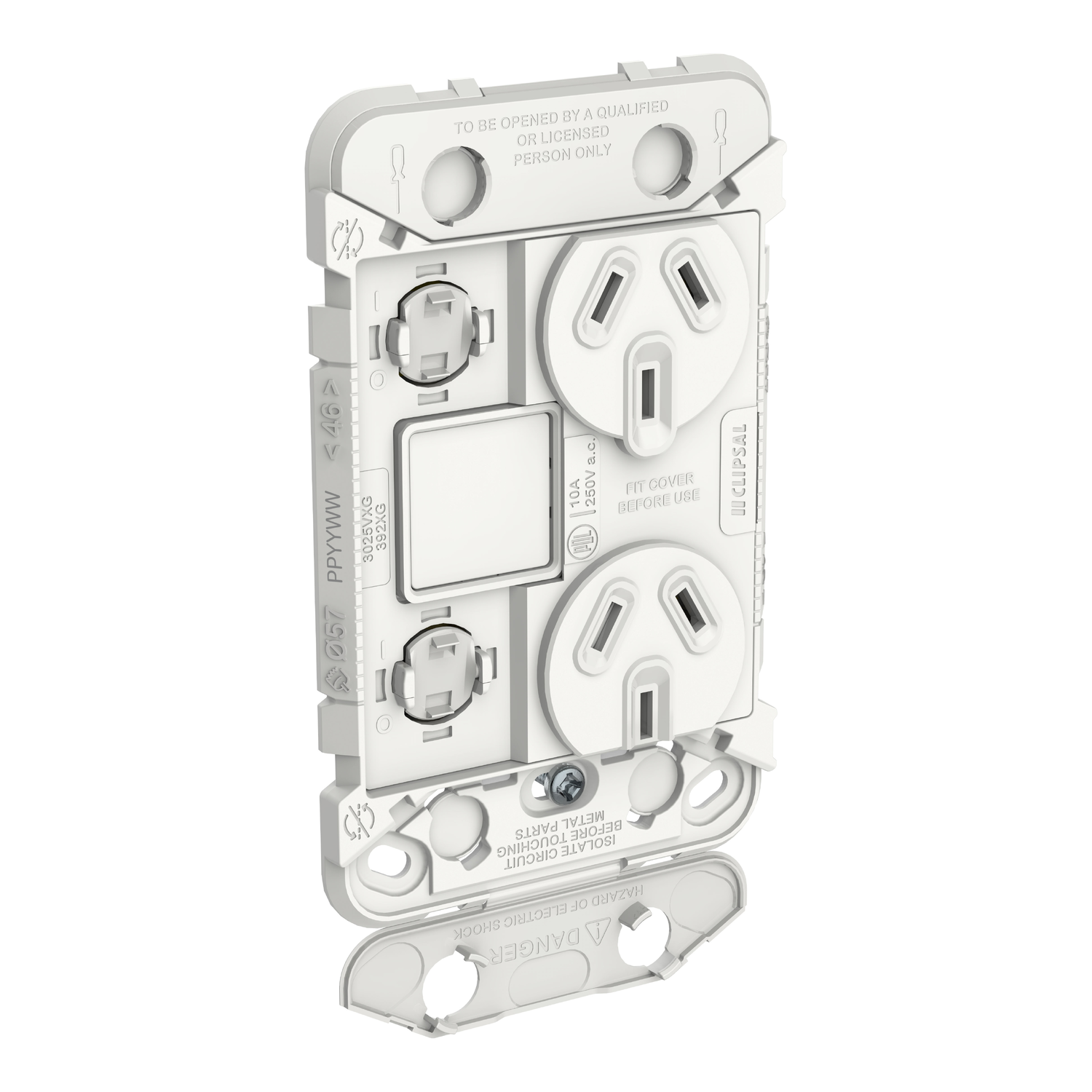

With two outlets and provision for an extra switch to activate lights, a heater, or exhaust fan, the Clipsal Iconic Vertical Double Power Point grid is designed for use in a bathroom or kitchen. The grid has multiple safety features and is ready for a Clipsal Iconic skin to be fitted safely and easily.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | mechanism with fixing frame |
| Outlet standard | Australian |
| Range | Clipsal Iconic |
| Product or component type | switched socket |
| Complementary | |
| Number of power socket outlets | 2 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Height | 115 mm |
| Connections - terminals | 3 screw terminals |
| Electrical durability | 12000 cycles |
| Number of rocker | 2 |
| Material | POM (polyoxymethylene): locking bar, POM (polyoxymethylene): shutter, PP (polypropylene): rocker, PC (polycarbonate): fixing frame |
| Net weight | 0.094 kg |
| Type of packing | polybag |
| Clamping connection capacity | 1 x 2.5...4 x 2.5 mm² for flexible cable(s), 1 x 2.5...4 x 2.5 mm² for stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid cable(s) |
| Range compatibility | Clipsal Iconic cover frame |
| Number of gangs | 1 gang |
| Device mounting | flush |
| Embedding depth | 24 mm |
| Ground lug position | straight 180° position |
| Surface finish | matt |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Depth | 31 mm |
| Width | 71 mm |
| Installation direction | vertical |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 10 A at 250 V AC 50 Hz |
| Fixing mode | by screw |
| Colour tint | ash grey |
| Environment | |
| Relative humidity | 10-95 % |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZS 3112 |
