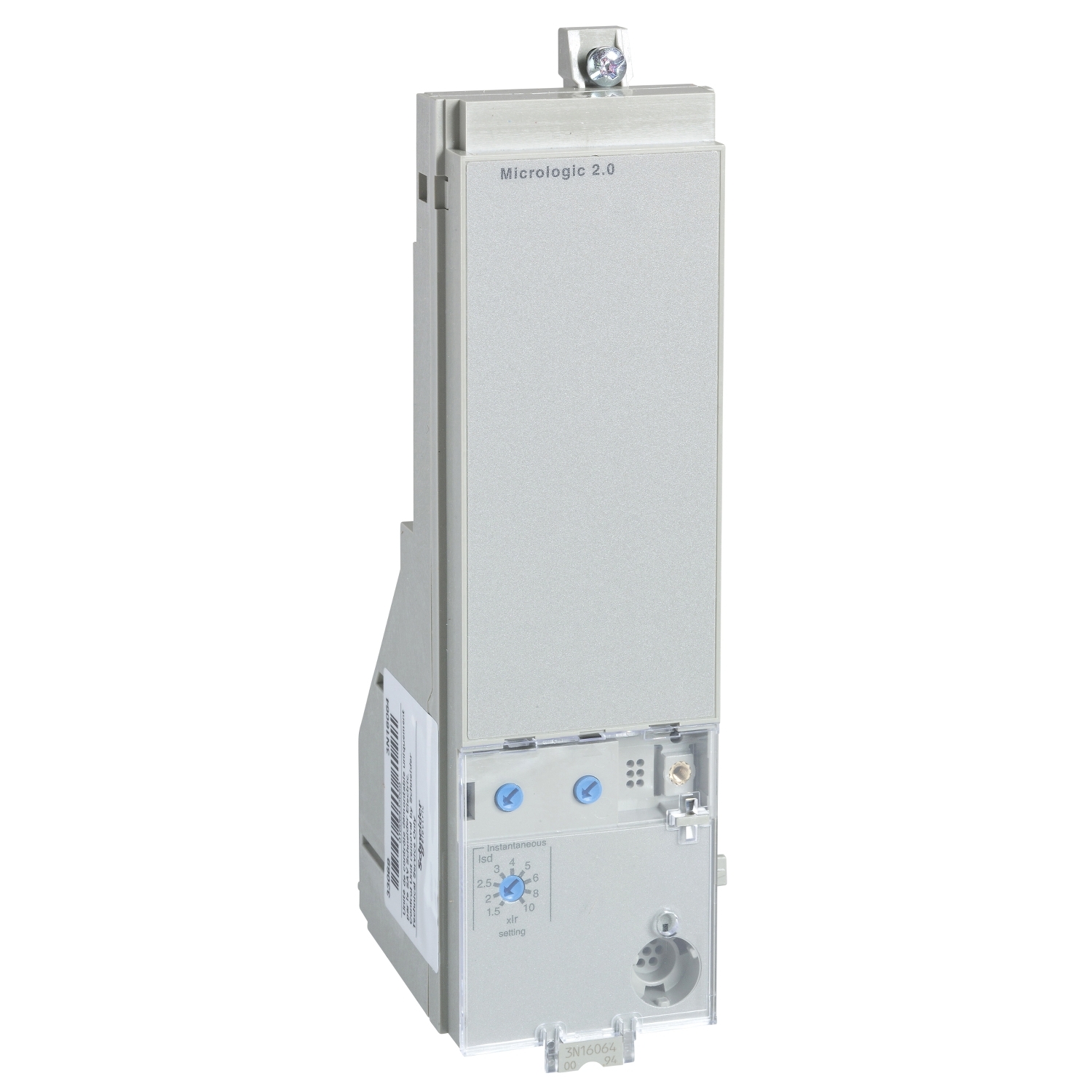

Micrologic 2.0 is an electronic trip unit used on Compact NS630b to NS3200 circuit breakers. This control unit has a basic protection and is designed to protect power circuits and loads. It embeds adjustable long time protection against overloads. It provides also adjustable instantaneous protection against short-circuits. Micrologic 2.0 indicates overloads with an Alarm LED. This trip unit can be associated with Compact NS basic frame.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Range compatibility | ComPact NS630b...1600, ComPact NS1600b...3200 |
| Mounting mode | drawout, fixed |
| Range | ComPacT |
| Protected poles description | 3t + N/2, 3t, 4t |
| Range of product | ComPact NS630b...1600, ComPact NS1600b...3200 |
| Trip unit name | MicroLogic 2.0 |
| Trip unit technology | electronic |
| Poles description | 3P, 4P |
| Product name | MicroLogic |
| Product or component type | trip unit |
| Network type | AC |
| Trip unit protection functions | basic protection |
| Network frequency | 50/60 Hz |
| Complementary | |
| Long time pick-up adjustment type Ir | adjustable 9 settings |
| Long time pick-up adjustment range | 0.4...1 x In |
| Zone selective interlocking ZSI | without |
| Earth-leakage protection | without |
| Thermal memory | 20 mn |
| [tr] long-time delay adjustment range | 12.5-600 s at 1.5 x Ir, 0.5-24 s at 6 x Ir, 0.7-16.6 s at 7.2 x Ir |
| Instantaneous pick-up adjustment type Ii | adjustable 9 settings |
| Long time delay adjustment type | adjustable 9 settings |
| Environment | |
| Ambient air temperature for storage | -50-85 °C |
| Ambient air temperature for operation | -25-70 °C |
