Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Protection technology | thermal limiter, current limiter |

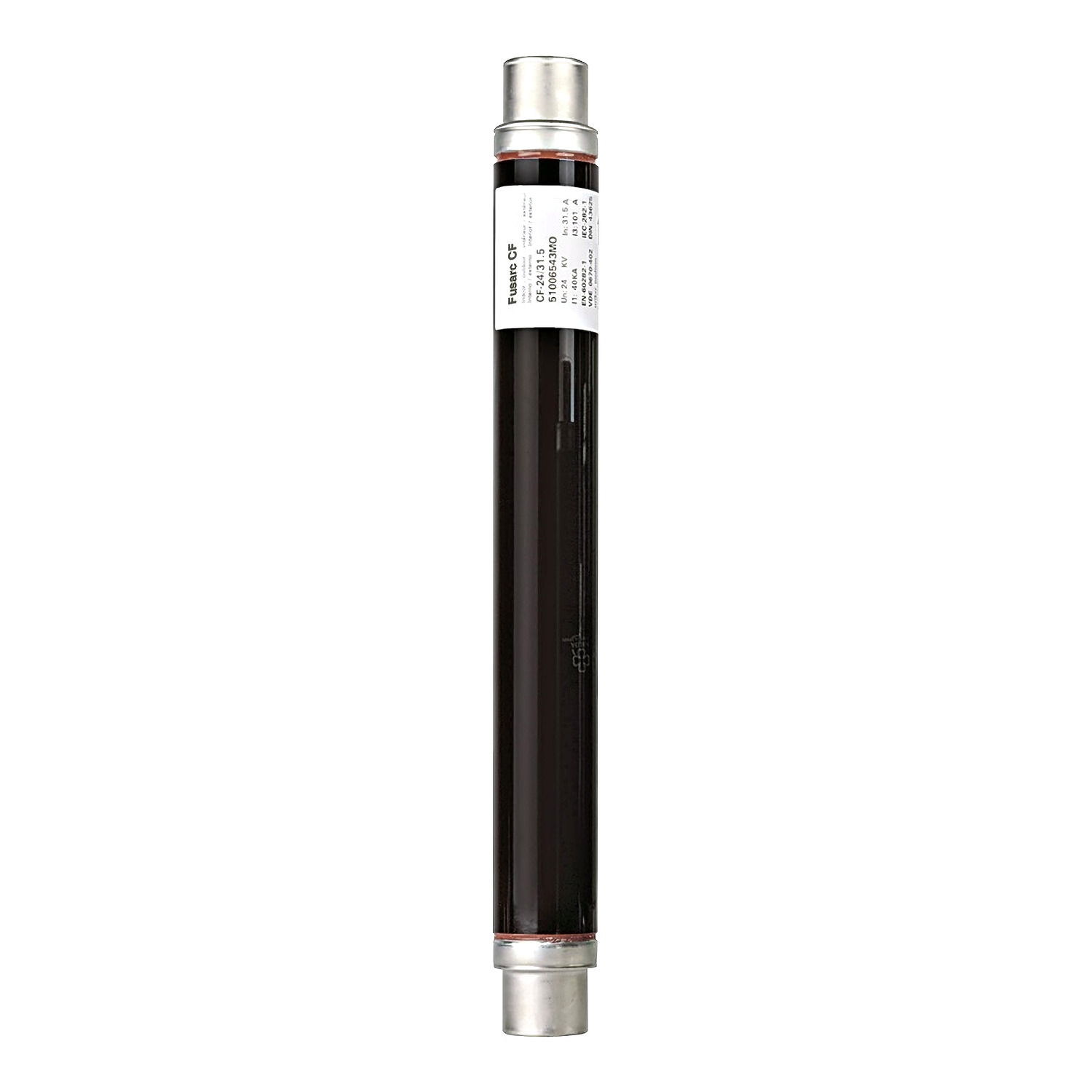

| Product or component type | fuse |
| Quality labels | ISO 9001, ISO 14001 |
| Standards | VDE 0670-402, DIN 43625, IEC 60787, IEC 60282-1 |
| Range of product | Fusarc CF |
| Complementary | |
| Average resistance | 11.1 mOhm at 20 °C +/- 10 % |
| [Ue] rated operational voltage | 6...12 kV |
| Type of installation | indoor/outdoor |
| Net weight | 3.2 kg |
| Material | porcelain |
| Length | 292 mm |
| Maximum discharge current | 63 kA |
| Condition of use | fuse chamber, in open air, cubicle |
| [In] rated current | 80 A |
| Rated voltage (Ur) | 12 kV |
| Power dissipation in W | 102 W |
| Diameter | 76 mm |
| Product destination | voltage transformer, capacitor, power transformer, motor |
| Braking current | 280 A |
