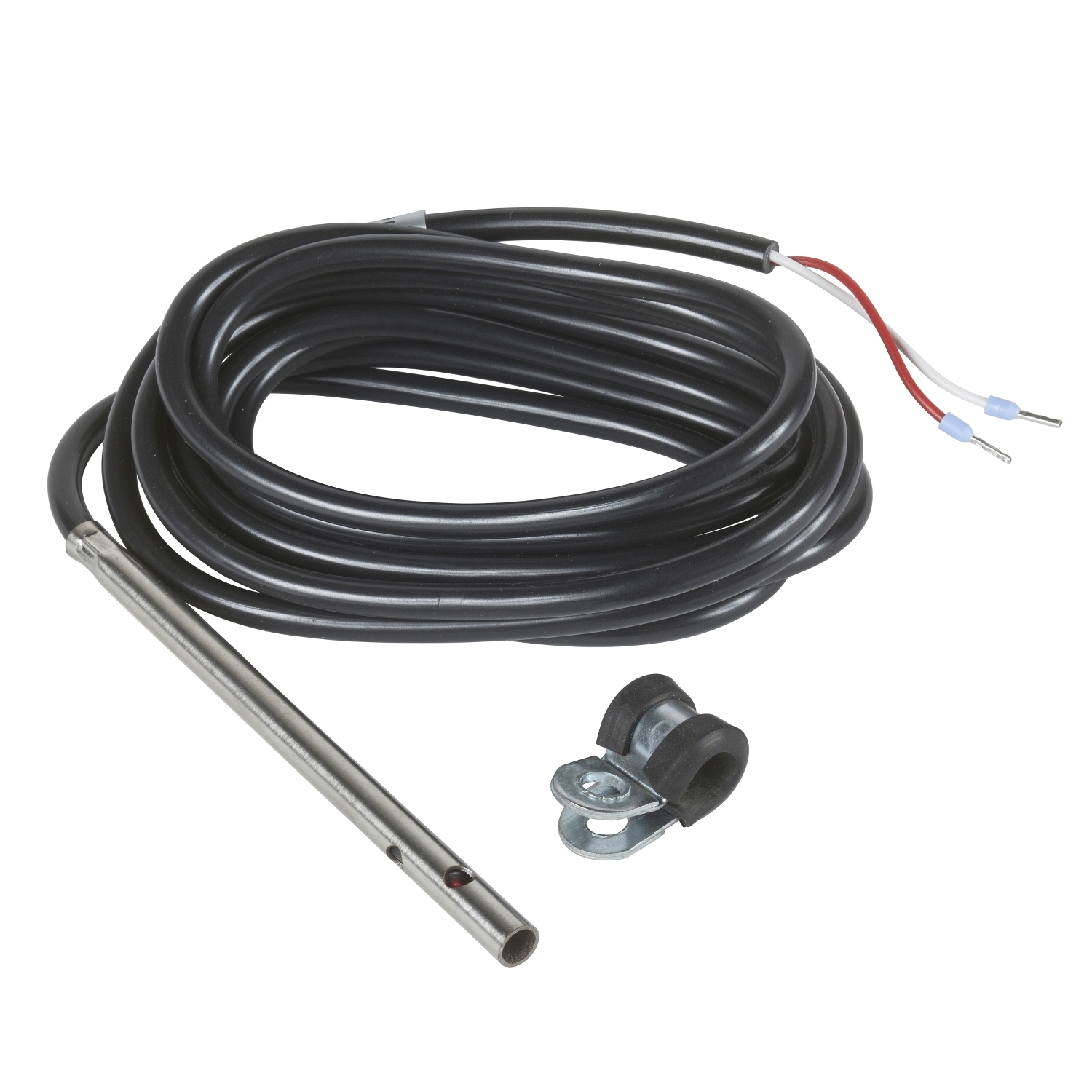

SpaceLogic STD 550 series are duct temperature sensors. STD 550 is intended for measuring air temperature in fan coil applications or exhaust ducts.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP65 |
| Device application | duct |
| Product compatibility | Continuum |
| Depth | 44 mm |
| Colour | black and green |
| Output type | resistive output |
| Width | 65 mm |
| Sensor type | 10 kOhm NTC temperature |
| Relative humidity | 0-90 % |
| Net weight | 0.09 kg |
| Location | plant room |
| Ambient air temperature for operation | -40-100 °C |
| Product or component type | sensor |
| Type of measurement | temperature |
| Targeted region | Europe, Asia Pacific. |
| Standards | EN 50081-1, EN 50082-2 |
| Mounting support | duct |
| Range of product | STD550 |
| Height | 84 mm |
| Complementary | |
| Measurement accuracy | 0...25 °C +/- 0.2 °C |
| Material | stainless steel: sensor element, PVC (polyvinyl chloride): cable |
| Connections - terminals | wire (AWG 24...AWG 18) |
| Length | 100-100 mm for side sensor |
| Former part number | 5123084000 |
| Time constant | 25000 ms 3 l/min |
| Environment | |
| Product certifications | CE |
