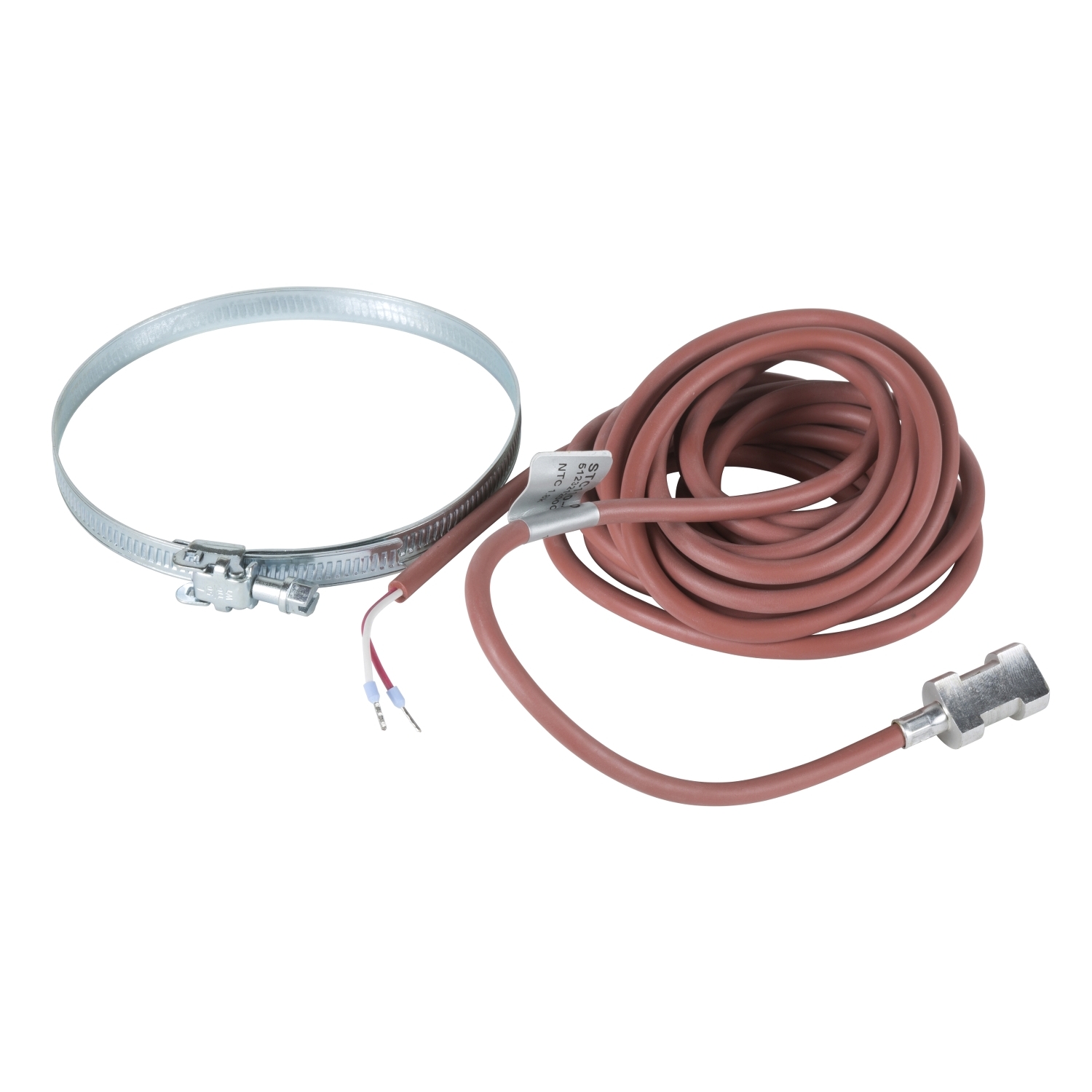

The STC110 and STC210 temperature sensors are designed for mounting on pipe systems of max. Ø 90 mm (3.54 in.). The temperature sensor is supplied with a connection cable of 2 m (6.56 ft.) or 4 m (13.12 ft.).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP54 |
| Device application | pipe |
| Product compatibility | Vista |
| Colour | black and green |
| Mounting mode | strap-on |
| Location | plant room |
| Ambient air temperature for operation | -40-180 °C |
| Standards | EN 50082-1, EN 50081-1 |
| Range of product | STC110 |
| Output type | resistive output |
| Net weight | 0.17 kg |
| Product or component type | sensor |
| Type of measurement | temperature |
| Targeted region | Europe, Asia Pacific. |
| Complementary | |
| Measurement accuracy | 0...25 °C +/- 0.3 °C |
| Former part number | 5123212000 |
| Time constant | 75000 ms |
| Number of cables | 1 <4 m |
| Material | steel: sensor element, silicon: cable |
| Connections - terminals | wire (AWG 24...AWG 18) |
| Environment | |
| Product certifications | CE |
