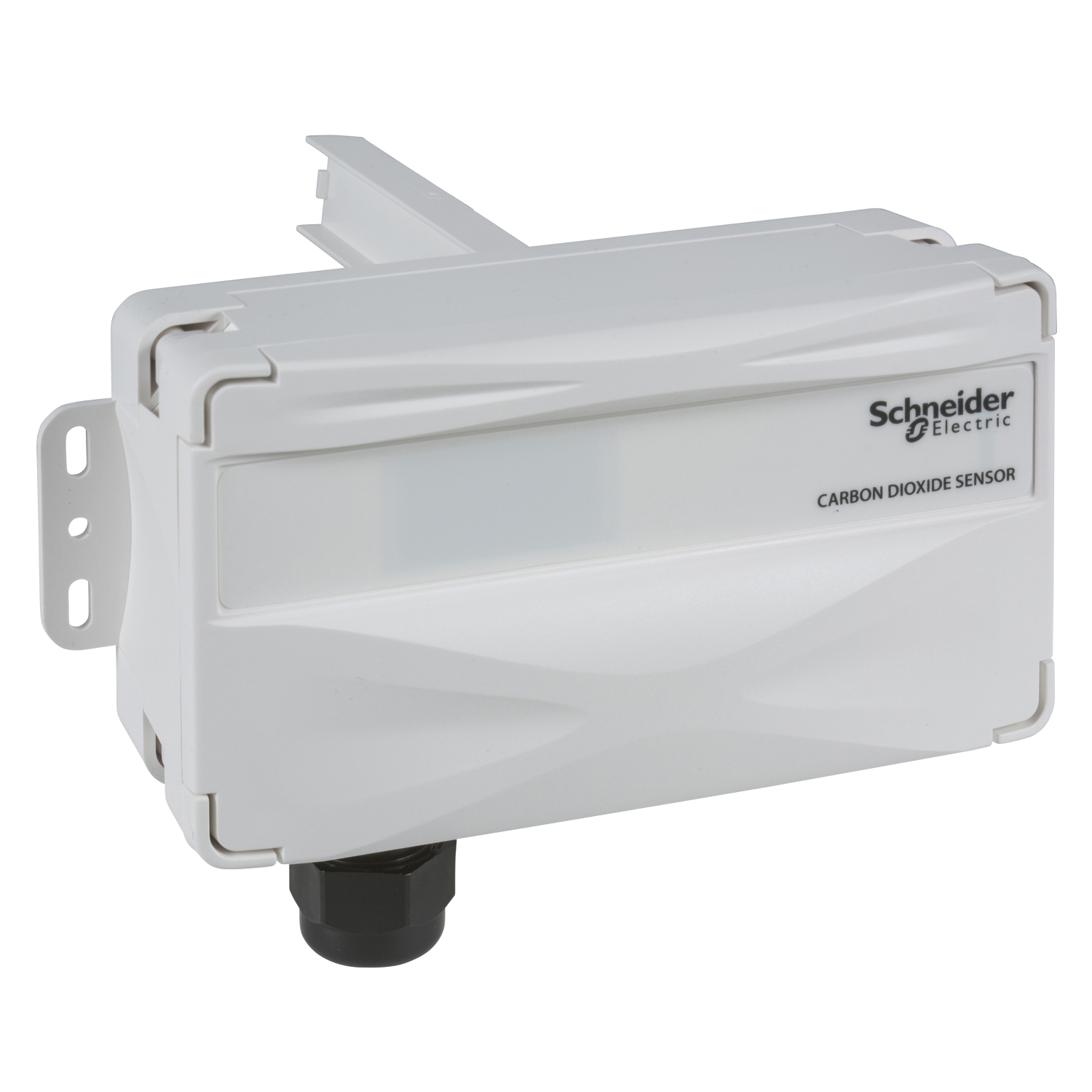

Carbon Dioxide Transmitter: SCD210, Duct, Temp, TAC I/NET, 10 k Ohm T2 Temperature sensing for all current platforms is available dependent on the model selected thus offering lower cost installation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Probe length | 198 mm |
| Device application | duct |
| Depth | 61 mm |
| Colour | cloud white |
| Output type | resistive output, analog |
| Width | 170 mm |
| CO2 measurement accuracy | +/- 2 % of measured value, +/- 1.5 % of measurement range |
| Enclosure material | ABS thermoplastic |
| Probe diameter | 25.4 mm |
| Measurement temperature | 0-50 °C |
| Relative humidity | 0-95 % RH, non-condensing |
| Sensor type | 10 kOhm type 2 thermistor temperature, NDIR (non-dispersive infrared) carbon dioxide (CO2) |
| Response time | less than 60 s for 90 % step change |
| Temperature measurement accuracy | +/- 0.3 °C |
| AWG gauge | AWG 24...AWG 14 |
| CO2 measurement range | 0...2000 ppm |
| Location | plant room |
| Product or component type | sensor |
| Type of measurement | temperature, carbon dioxide (CO2) |
| Targeted region | Asia Pacific., Europe |
| Mounting support | duct |
| CO2 measurement repeatability | +/- 20 ppm +/- 1 % of measured value |
| Range of product | SCD |
| Analogue output type | 0...10 V DC, 0...5 V DC, 4...20 mA |
| Ambient air temperature for operation | 10-35 °C |
| Height | 78 mm |
| [Us] rated supply voltage | 20...30 V DC, 24 V AC |
| Product certifications | UL, CE |
| Sensor model | CDXTXTD |
