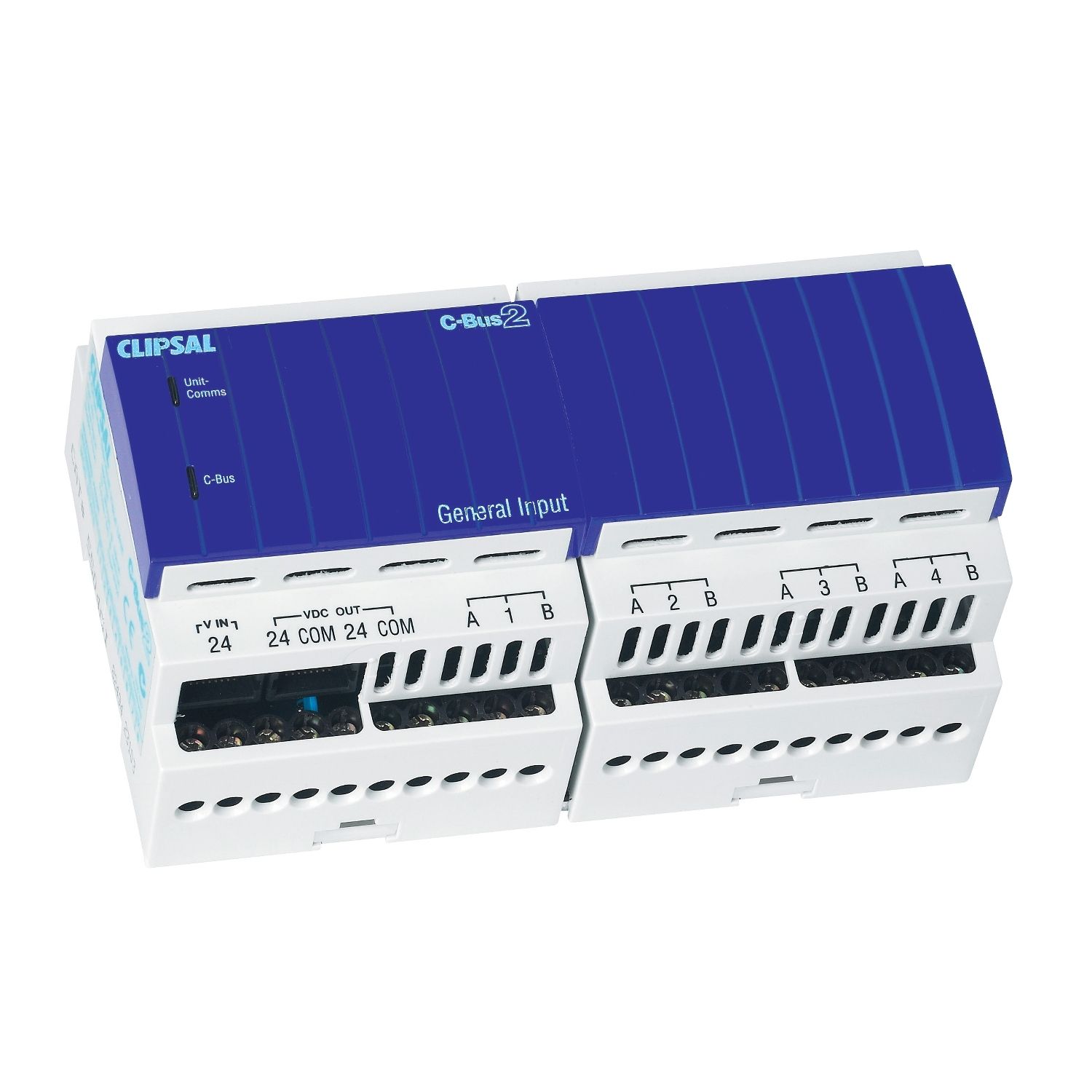

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | connection |
| Range | C-Bus |
| Product or component type | input module |
| Range of product | C-Bus |
| Product brand | Clipsal |
| Complementary | |
| Analogue input type | configurable voltage, current or probe 0...1000 Ohm connection of probes, configurable voltage, current or probe 0...500 Ohm connection of probes, configurable voltage, current or probe 0...20 V 100 kOhm input voltage, configurable voltage, current or probe 0...10000 Ohm connection of probes, configurable voltage, current or probe 4...20 mA 249 Ohm, configurable voltage, current or probe 0...20 mA 249 Ohm, configurable voltage, current or probe 0...10 V 100 kOhm input voltage, configurable voltage, current or probe 0...5 V 100 kOhm input voltage, configurable voltage, current or probe 0...3000 Ohm connection of probes, configurable voltage, current or probe 0...1 V 100 kOhm input voltage |
| [Us] rated supply voltage | communication bus: 15...36 V DC, <0.018 A, supply circuit: 16...27 V AC/DC 50/60 Hz, <0.061 A |
| Depth | 65 mm |
| Width | 143 mm |
| Net weight | 190 g |
| Number of inputs | 4 |
| Mounting support | DIN rail |
| Number of modules | 8 |
| Height | 85 mm |
| Output voltage | 24 V DC (+/- 10 %) , 0.25 A |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0-45 °C |
