Residual current protection relay, VigiPacT RH10P, 300mA, 220/240VAC 50/60Hz, front panel mounting

Manufacturer: Schneider Electric

SKU: 56235

GTIN: 3303430562351

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $995.50 inc GST

Price: $669.37 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

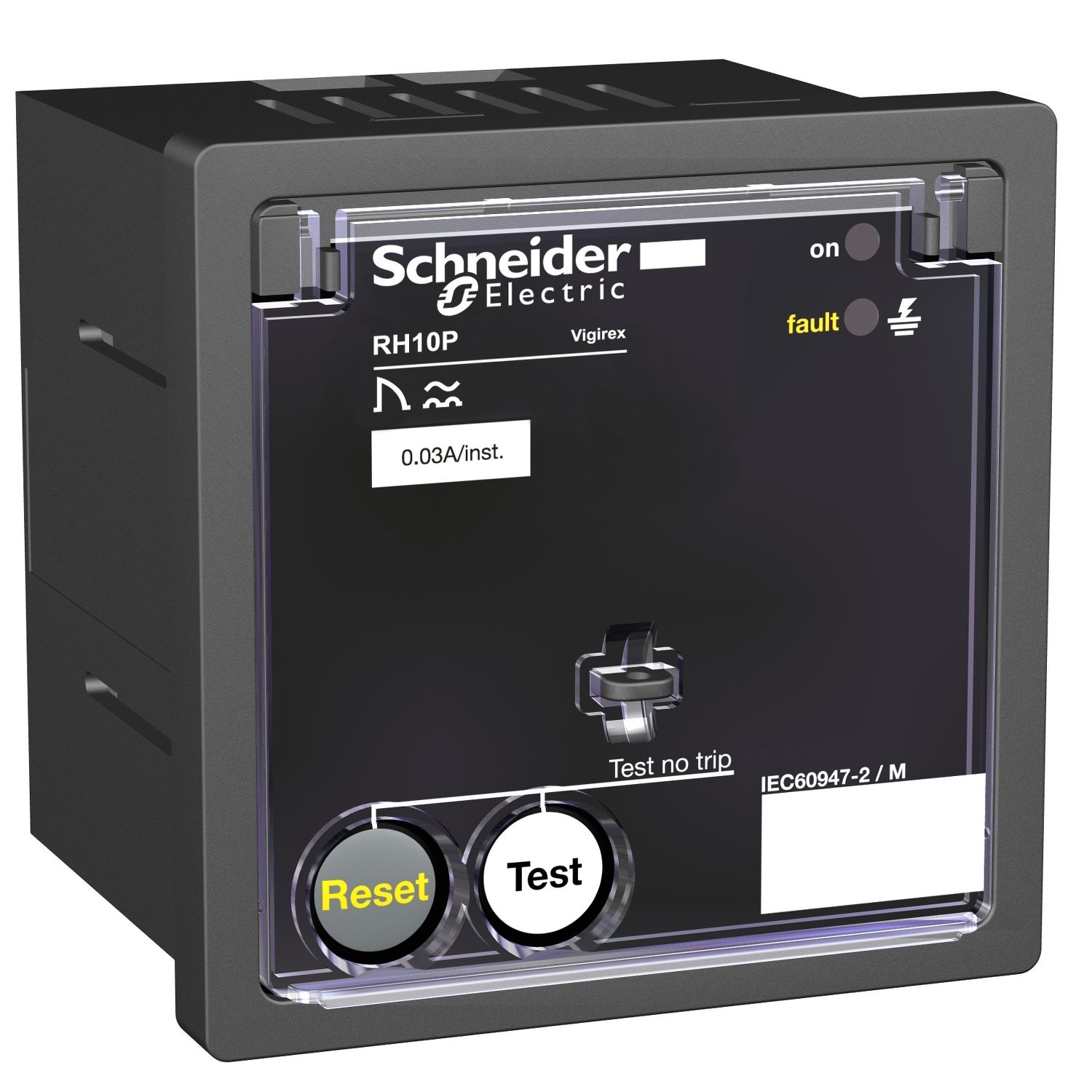

VigiPacT RH10P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity (IDn) is fixed to 300mA. The time delay (Dt) is instantaneous. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000VAC 50/60/400Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.

Products specifications

Attribute name	Attribute value
Main
Minimum load	10 mA at 12 V
[Uimp] rated impulse withstand voltage	8 kV
[Us] rated supply voltage	220...240 V AC 50/60 Hz 55...110 %
Residual earth-leakage time delay adjustment type	instantaneous
Earth-leakage protection class	type A
Reset	manual reset
[Ithe] conventional enclosed thermal current	8 A
Network rated voltage	1000-1000 V - AC at 400 Hz (maximum) , 1000-1000 V - AC at 50/60 Hz (maximum)

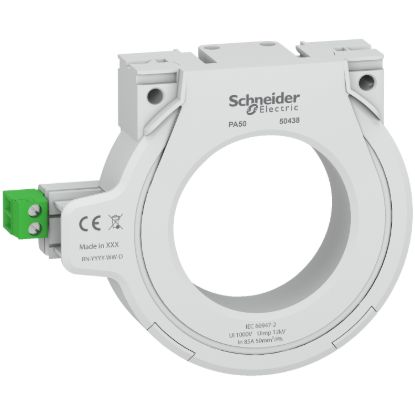

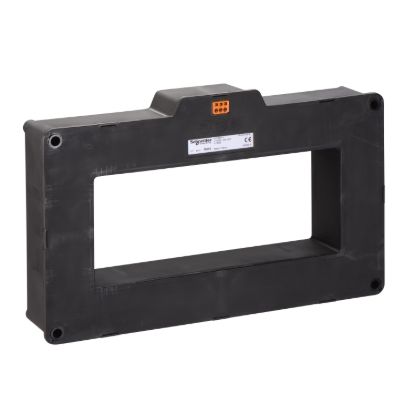

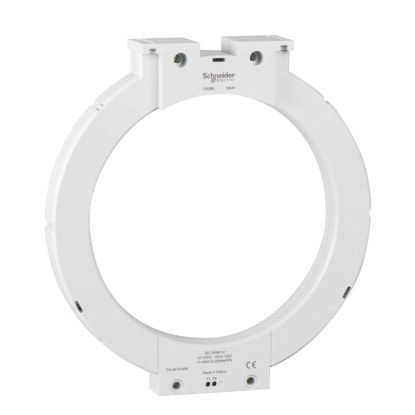

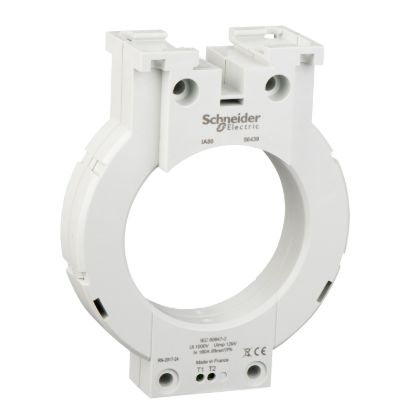

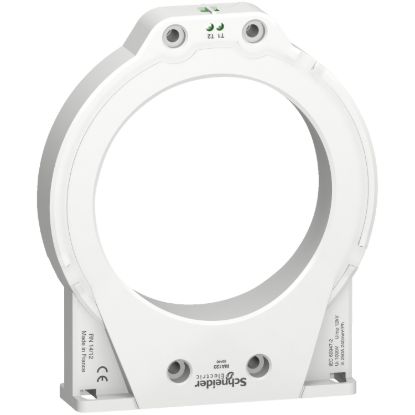

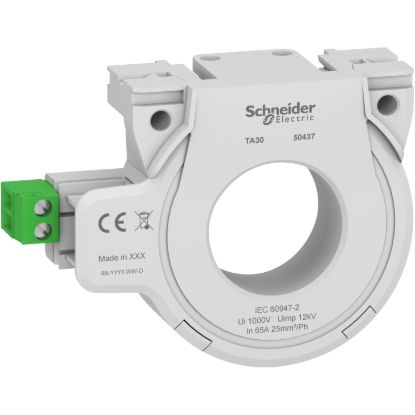

Range compatibility	VigiPacT L earth leakage current sensor, VigiPacT A earth leakage current sensor, VigiPacT TOA earth leakage current sensor
Device short name	RH10P
Range	VigiPacT
Earthing system	TT, TN-S, IT
Power consumption in VA	4 VA
Residual earth-leakage sensitity adjustment type	fixed
Product or component type	residual current protection relay
Relay application	protection relay
Mounting support	front panel
Earth leakage current	0.3-0.3 A
Type of setting	none
Complementary
Compatibility code	RH10P
Height	72 mm
Monitoring	relay/sensor link (continuous) , power supply (continuous) , electronics (continuous)
Net weight	0.3 kg
Tightening torque	voltage presence: 0.6-0.6 N.m, sensor: 0.6-0.6 N.m, relay test and fault reset: 0.6-0.6 N.m, fault: 0.6-0.6 N.m, auxiliary power supply: 0.6-0.6 N.m
IP degree of protection	IP20 on connection terminals: conforming to EN/IEC 60529, IP30 on side parts: conforming to EN/IEC 60529, IP40 on front face: conforming to EN/IEC 60529
Cut-out dimensions	68 x 68 mm
Wire stripping length	voltage presence: 7 mm, sensor: 7 mm, relay test and fault reset: 7 mm, fault: 7 mm, auxiliary power supply: 7 mm
Type of measurement	earth fault current internal measurement, range: 80...100 %
Mechanical robustness	vibrations 2...13.2 Hz: +/- 1 mm, vibrations 13.2...100 Hz: 0.7 g, IK protection 2 joules: IK07 conforming to EN 50102, fire resistance conforming to IEC 60695-2-1
IK degree of protection	IK07 conforming to EN 50102
Depth	78 mm
Width	72 mm
Test function	remote test, local
Connections - terminals	voltage presence: terminal block cable(s) 0.25-2.5 mm² flexible AWG 24...AWG 12, voltage presence: terminal block cable(s) 0.2-2.5 mm² rigid AWG 24...AWG 12, voltage presence: terminal block cable(s) 0.2-2.5 mm² flexible AWG 24...AWG 12, sensor: terminal block cable(s) 0.25-2.5 mm² flexible AWG 24...AWG 12, sensor: terminal block cable(s) 0.2-2.5 mm² rigid AWG 24...AWG 12, sensor: terminal block cable(s) 0.2-2.5 mm² flexible AWG 24...AWG 12, relay test and fault reset: terminal block cable(s) 0.25-2.5 mm² flexible AWG 24...AWG 12, relay test and fault reset: terminal block cable(s) 0.2-2.5 mm² rigid AWG 24...AWG 12, relay test and fault reset: terminal block cable(s) 0.2-2.5 mm² flexible AWG 24...AWG 12, fault: terminal block cable(s) 0.25-2.5 mm² flexible AWG 24...AWG 12, fault: terminal block cable(s) 0.2-2.5 mm² rigid AWG 24...AWG 12, fault: terminal block cable(s) 0.2-2.5 mm² flexible AWG 24...AWG 12, auxiliary power supply: terminal block cable(s) 0.25-2.5 mm² flexible AWG 24...AWG 12, auxiliary power supply: terminal block cable(s) 0.2-2.5 mm² rigid AWG 24...AWG 12, auxiliary power supply: terminal block cable(s) 0.2-2.5 mm² flexible AWG 24...AWG 12
Tamperproof of settings	protected by sealable cover
Standards	CAN/CSA C22.2 No. 144, UL 1053, EN/IEC 60755, EN/IEC 60947-2 Annex M
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-55-85 °C
Overvoltage category	IV
Pollution degree	3 conforming to IEC 60664-1
Electromagnetic compatibility	radiated susceptibility: , 3, conforming to IEC 61000-4-3, low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4, high-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5, electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2, conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6, conducted and radiated emissions: , B, conforming to CISPR 11
Ambient air temperature for operation	-35-70 °C
Electrical shock protection class	class II
