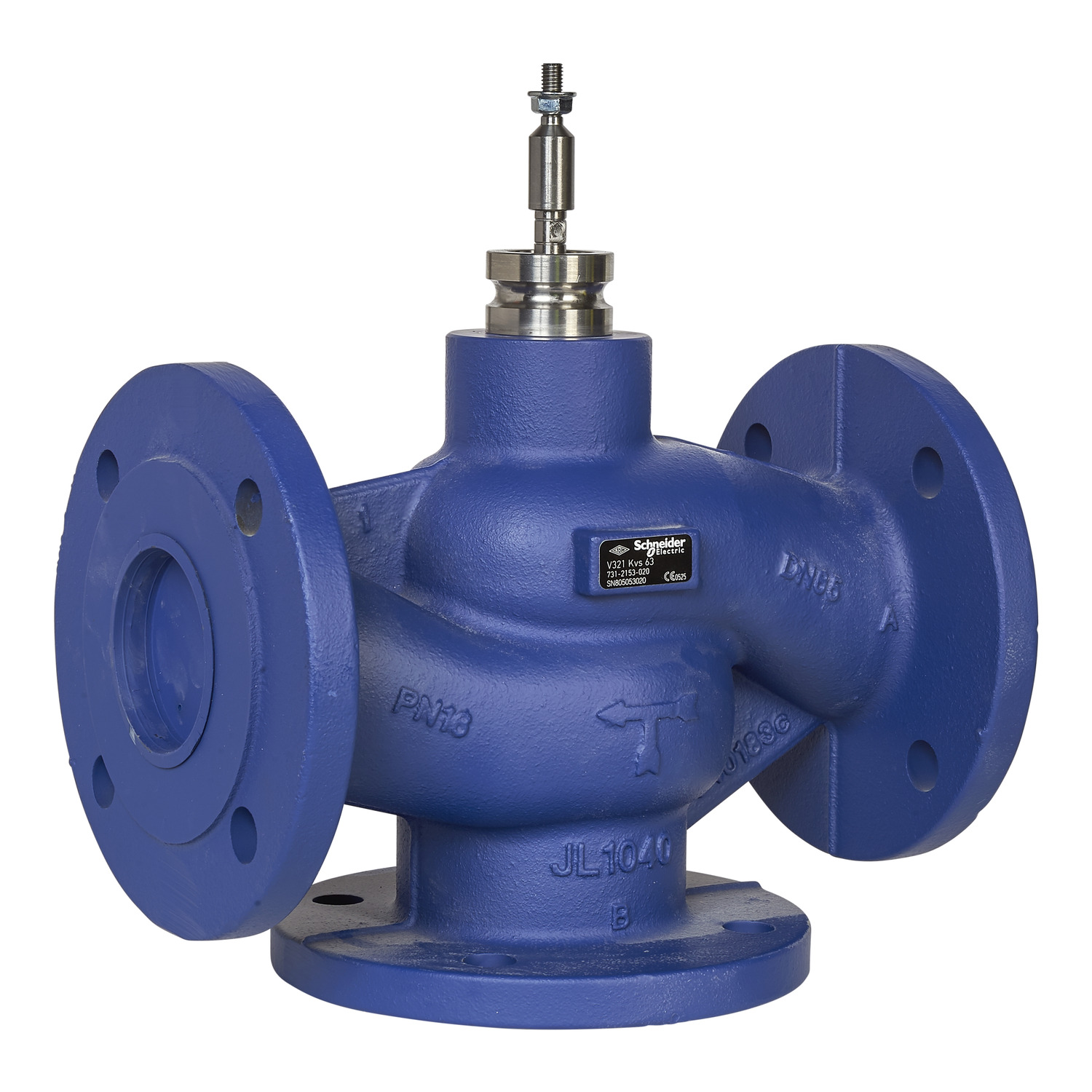

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | -10-130 °C |
| Body material | grey cast iron GG-25 |
| Seating seal material | Port A:metal to metal |
| Seat leakage | Port A: Less than 0.05 % of kvs |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Valve connection size | DN100 (ISO 7005-2) |
| Seat material | Port B: stainless steel AISI 420, Port A: stainless steel AISI 420 |
| Medium compatibility | Water, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Control valve rangeability | greater than 30:1 |
| Plug material | stainless steel AISI 420 |
| Valve product series | V321 |
| Flow coefficient | 160 kvs, 185 cv |
| Stem flow action | Stem up closes A and opens B to AB |
| Valve configuration | 3-Way |
| Stem movement | linear |
| Pressure fluid max delta P normal life | 9 psi |
| Valve type | globe |
| Packing material | EPDM (ethylene propylene diene monomer) |
| Valve connection type | flanged |
| Stem seal material | EPDM (ethylene propylene diene monomer) |
| Flow characteristic | equal percentage |
| Trim material | stainless steel |
| Stroke length | 30 mm |
| Stem material | stainless steel 316Ti |
| Pipe size | 100 mm |
| Pressure class | PN16 |
| Body size | 100 mm (4 in) |
