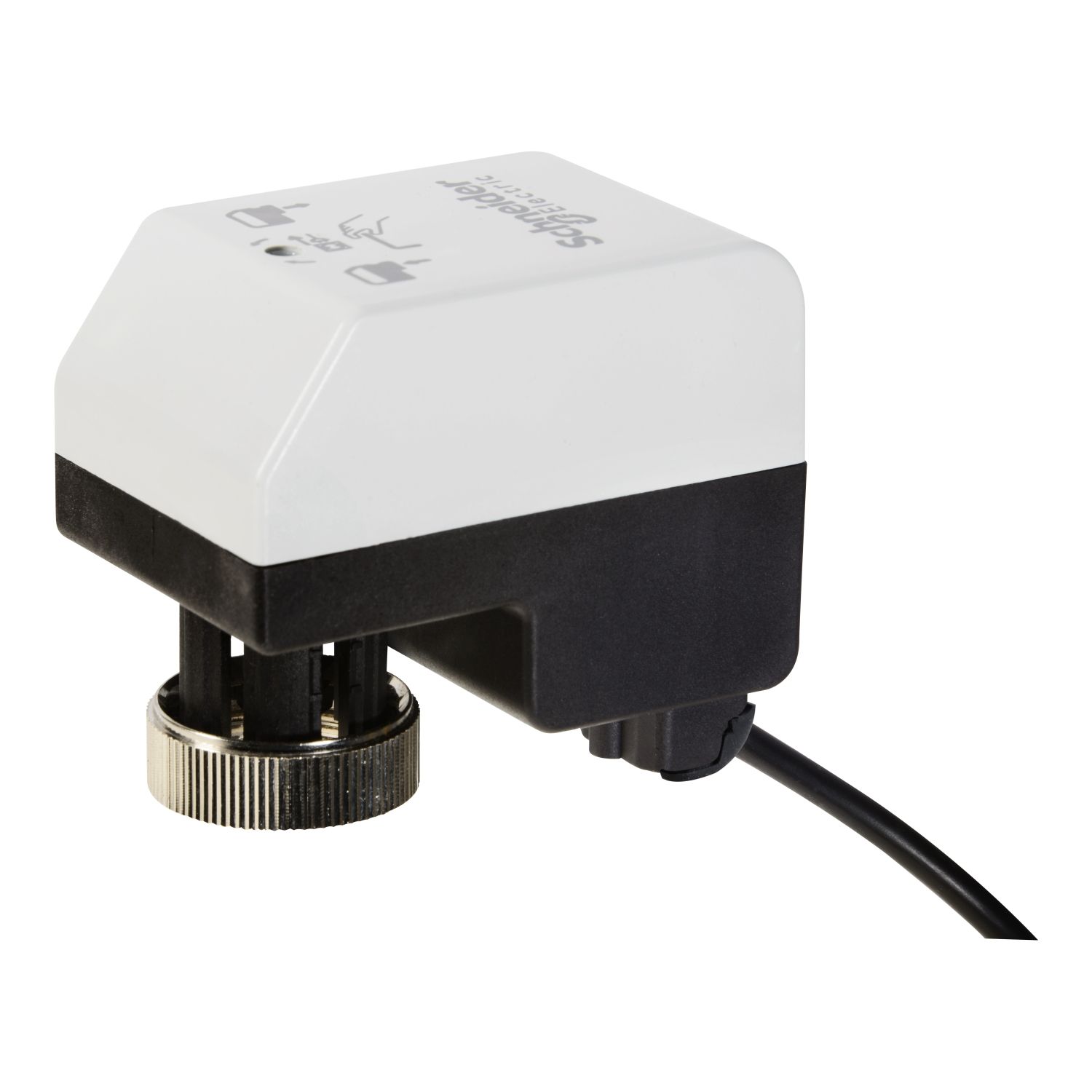

The MZ20 is a compact precise actuator for the VZ219, VZ319 and VZ419 valves. The long stroke is an electro-mechanical zone actuator. The actuator provides precise valve position and flow for good hydronic control. Reliable long term operation is provideed by the optimal design without feedback potentiometer or end switches. Supply voltage, 24 Vac and Force, 200 N. Control voltage: …1 V, 6…9 V, 1…5 V, 2…1 V, 4…7 V, 6…1 V, 8…11 V. IP 43 for vertical mounting. Working temperature: -5 to 55 °C. Connection cable: 5.5 m. 6 m 24 V pluggable cabe pack, 1 pieces.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Hold-in power consumption in VA | 1-1 VA AC |
| Product destination | zone valves |
| Product or component type | actuator |
| Targeted region | Australia., Asia Pacific., Europe |
| Complementary | |
| Force N | 200 N |
| Stroke running time | 117 s |
| [Us] rated supply voltage | 24 V AC |
| Control type | automatic reset |
| Stroke length | 5.5-5.5 mm |
| Analogue input range | 0...10 V DC |
| Force lbf | 45 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP43 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -25-65 °C |
| Ambient air temperature for operation | -5-55 °C |
| Power loss return | non-spring return |
| Actuator model | MZ20 |
| Control signal | proportional/modulating |
| Lead length | 1.5 m |
| Connection valve | coupling ring M30 x 1.5 |
| Stroke auto calibration | False |
| Actuator type | electric |
| Actuator product series | MZ20 |
| Position indicator | Stem position cut out on yoke |
