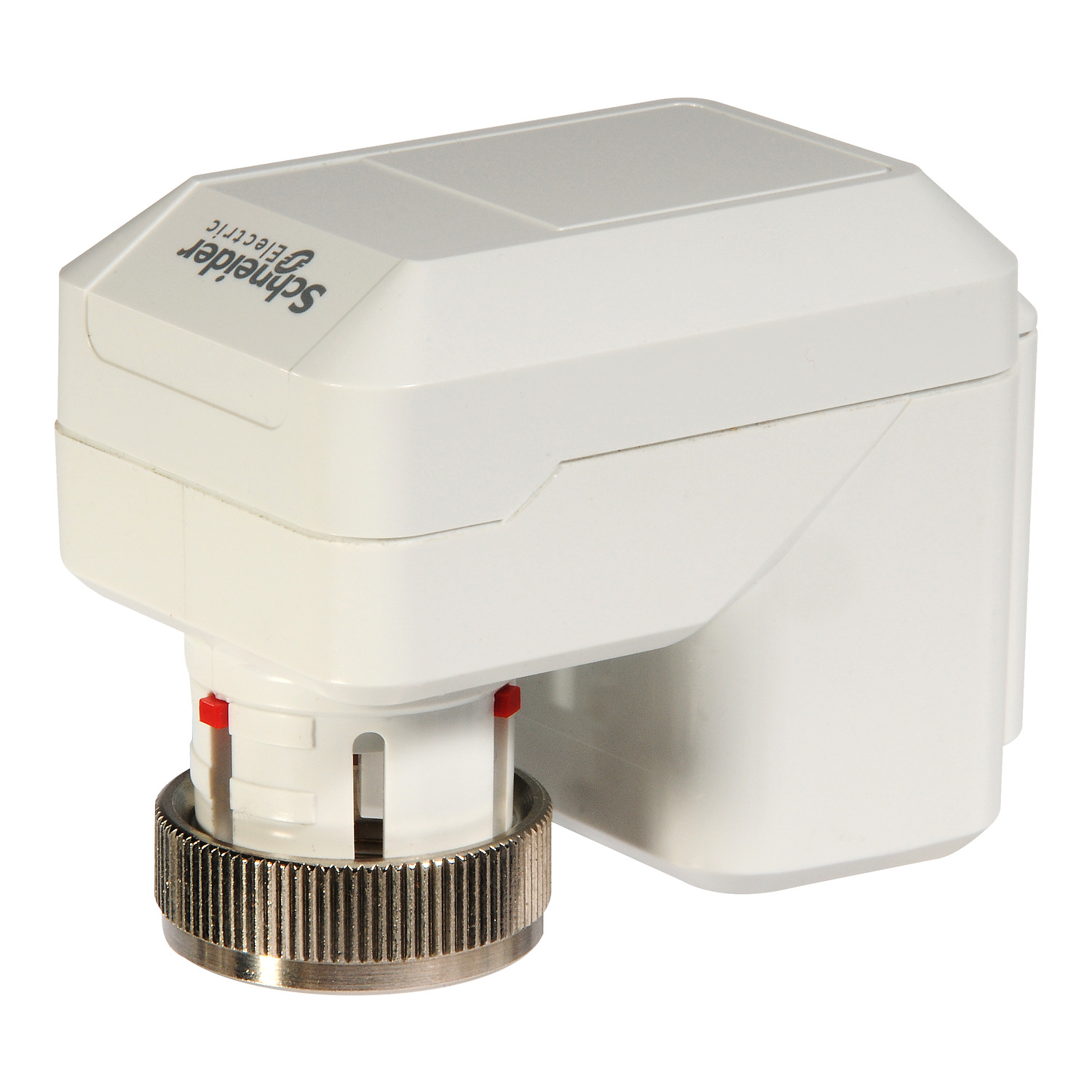

The MZ18B is a compact electromechanical actuator for the VZ22, VZ32 and VZ42 Zone valves. The actuators feature reliable long term operation ensured from a simple design without the need for end switches. With visual position indication. Supply voltage, 24 Vac and Force, 180 N. 3-point Floating. Couple ring M 3 x 1.5. Power Consumption, .7 VA. Ambient Temperature, to 6 °C. Connection cable: 1.5 m.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Hold-in power consumption in VA | 0.7-0.7 VA AC |
| Product destination | zone valves |
| Product or component type | actuator |
| Targeted region | Asia Pacific., Europe |
| Complementary | |
| Force N | 183 N |
| Switch function | 2 SPDT |
| Stroke running time | 150 s |
| Electrical insulation class | class III |
| Control type | manual override with 5/32 allen wrench |
| Stroke length | 6.5-6.5 mm |
| Force lbf | 41 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP44 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -25-65 °C |
| Ambient air temperature for operation | 0-60 °C |
| Power loss return | non-spring return |
| Actuator model | MZ18B |
| Control signal | 3-point floating |
| Lead length | 1.5 m |
| Connection valve | coupling ring M30 x 1.5 |
| Stroke auto calibration | False |
| Actuator type | electric |
| Actuator product series | MZ18 |
| Position indicator | Stroke indicator on bracket |
