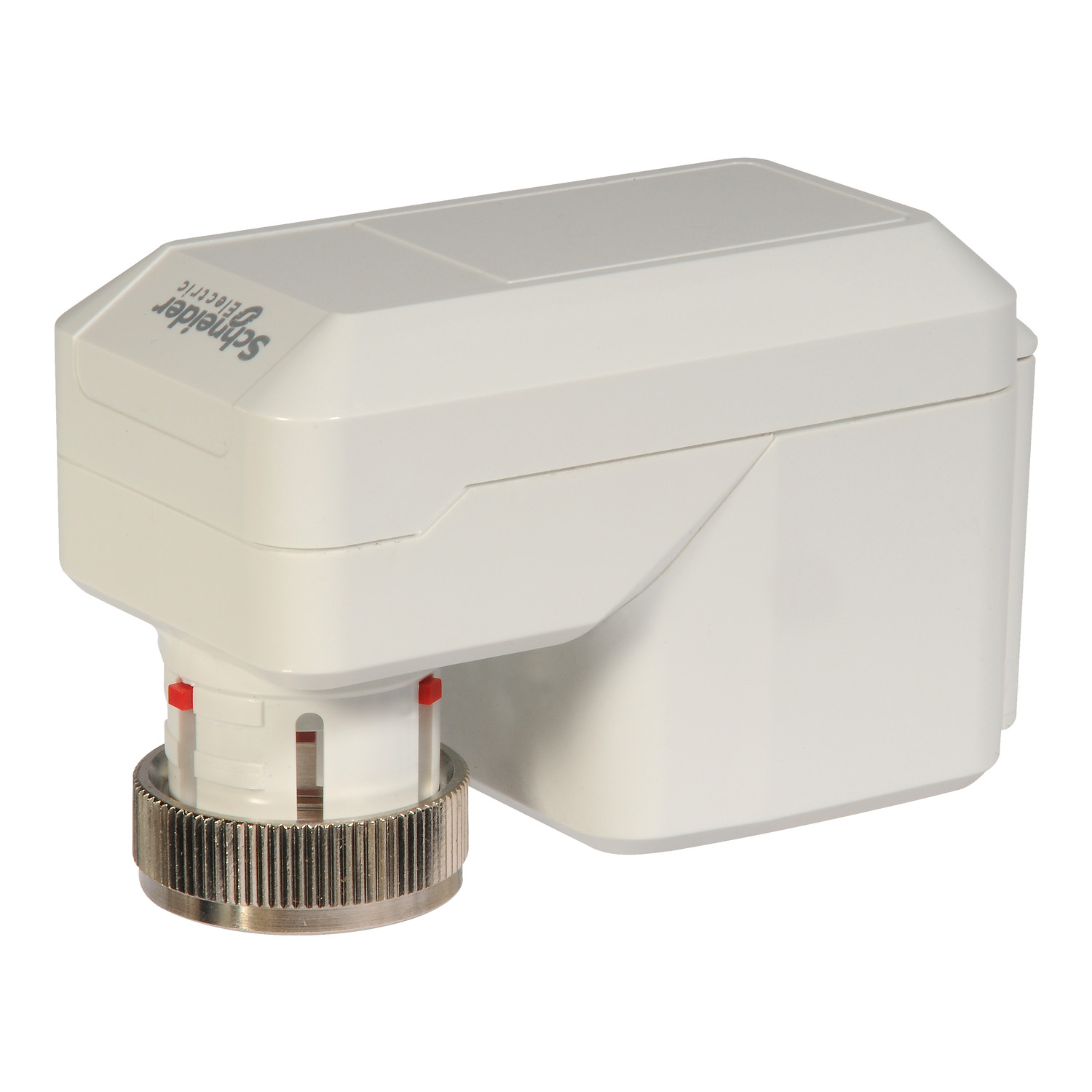

Electric Actuator, LON, Non-Spring Return, 24 VAC, 180 N, Linear, IP42
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 183 N |
| Hold-in power consumption in VA | 1.4-1.4 VA AC |
| Switch function | 2 SPDT |
| Stroke running time | 150 s |
| IP degree of protection | IP44 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -25-65 °C |
| Communication port protocol | LonTalk |
| Product destination | zone valves |
| Control type | manual override with 5/32 allen wrench |
| Product or component type | actuator |
| Targeted region | Asia Pacific., Europe |
| Stroke length | 6.5-6.5 mm |
| Force lbf | 41 lbf |
| Actuator | linear |
| Ambient air temperature for operation | 0-55 °C |
| Power loss return | non-spring return |
| Actuator model | MZ18L |
| Control signal | LON |
| Lead length | 1.5 m |
| Connection valve | coupling ring M30 x 1.5 |
| Stroke auto calibration | False |
| Actuator type | electric |
| Actuator product series | MZ18 |
| Position indicator | Stroke indicator on bracket |
