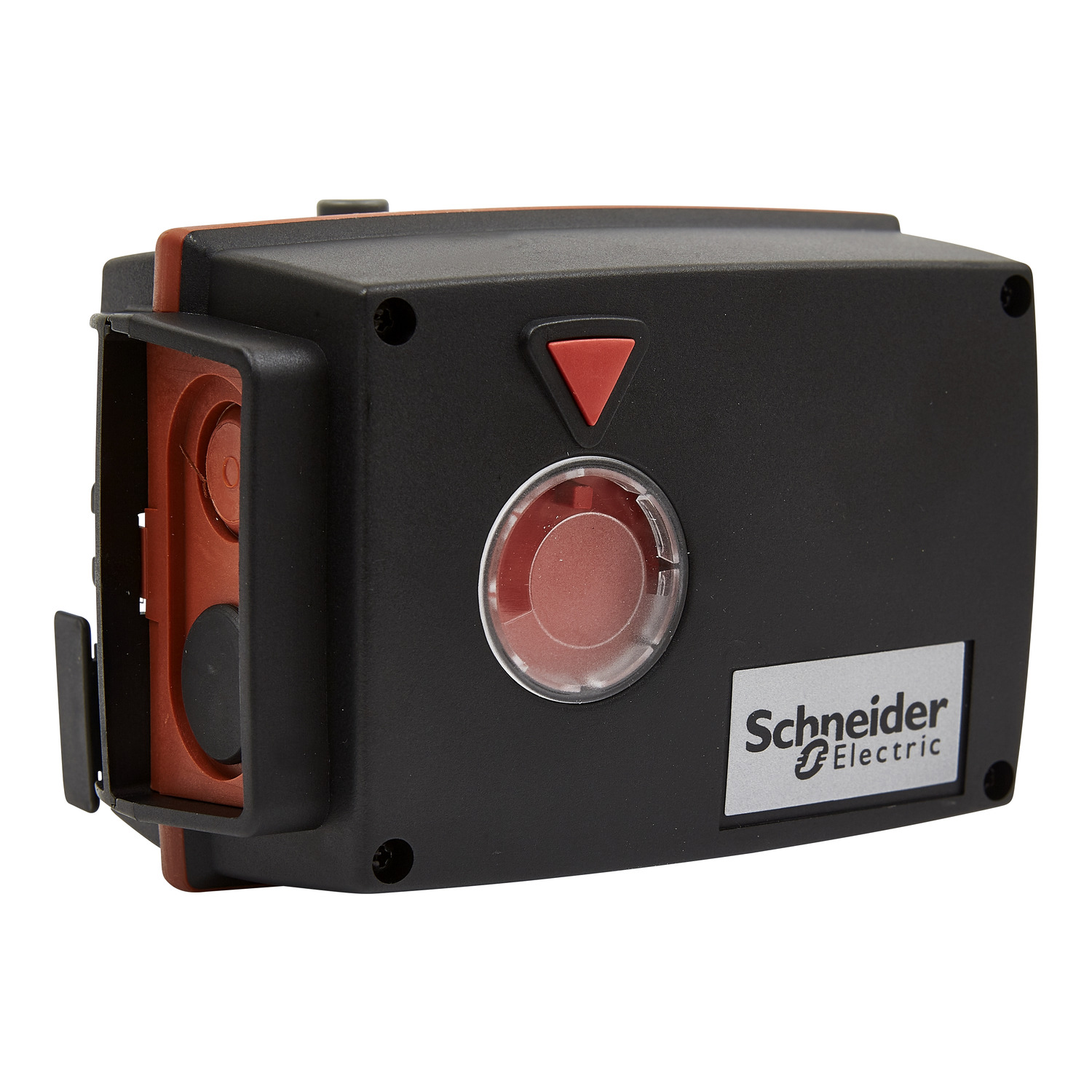

The EM9 is an electronic actuators for motorising VTRE rotary shoe valves. EM9 operates on 24 V and is controlled by selectable control signal. The running time can be programmed. The actuator can be operated manually and has a valve position indicator on the front of the unit. Power consumption: 3 VA. Modulating control signal: …1 Vdc, 2…1 Vdc, …2 mA or 4…2 mA. Working range 18°. Running time 12/18/24s, 24 Vac +/-1%. Torque: 15 Nm, IP 54 Protection class.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Hold-in power consumption in VA | 3-3 VA AC |
| Switch function | 2 SPDT |
| Material | PA66 (polyamide 66) reinforced: housing |
| Stroke running time | 75 s |
| IP degree of protection | IP54 |
| [Us] rated supply voltage | 24 V AC |
| Product destination | shoe valves |
| Control type | electrically operated |
| Duty cycle | 10 % |
| Product or component type | actuator |
| Targeted region | Australia., Asia Pacific., Europe |
| Actuator rotation | 180 ° |
| Analogue input range | 0...20 mA DC, 0...10 V DC |
| Actuator | rotary |
| Ambient air temperature for operation | -15-55 °C |
| Tightening torque | 15 N.m, 133 lb.in |
| Power loss return | non-spring return |
| Control signal | proportional/modulating |
| Actuator type | electric |
| Actuator product series | EM9, M9B |
| Position indicator | green push stem with color markers |
