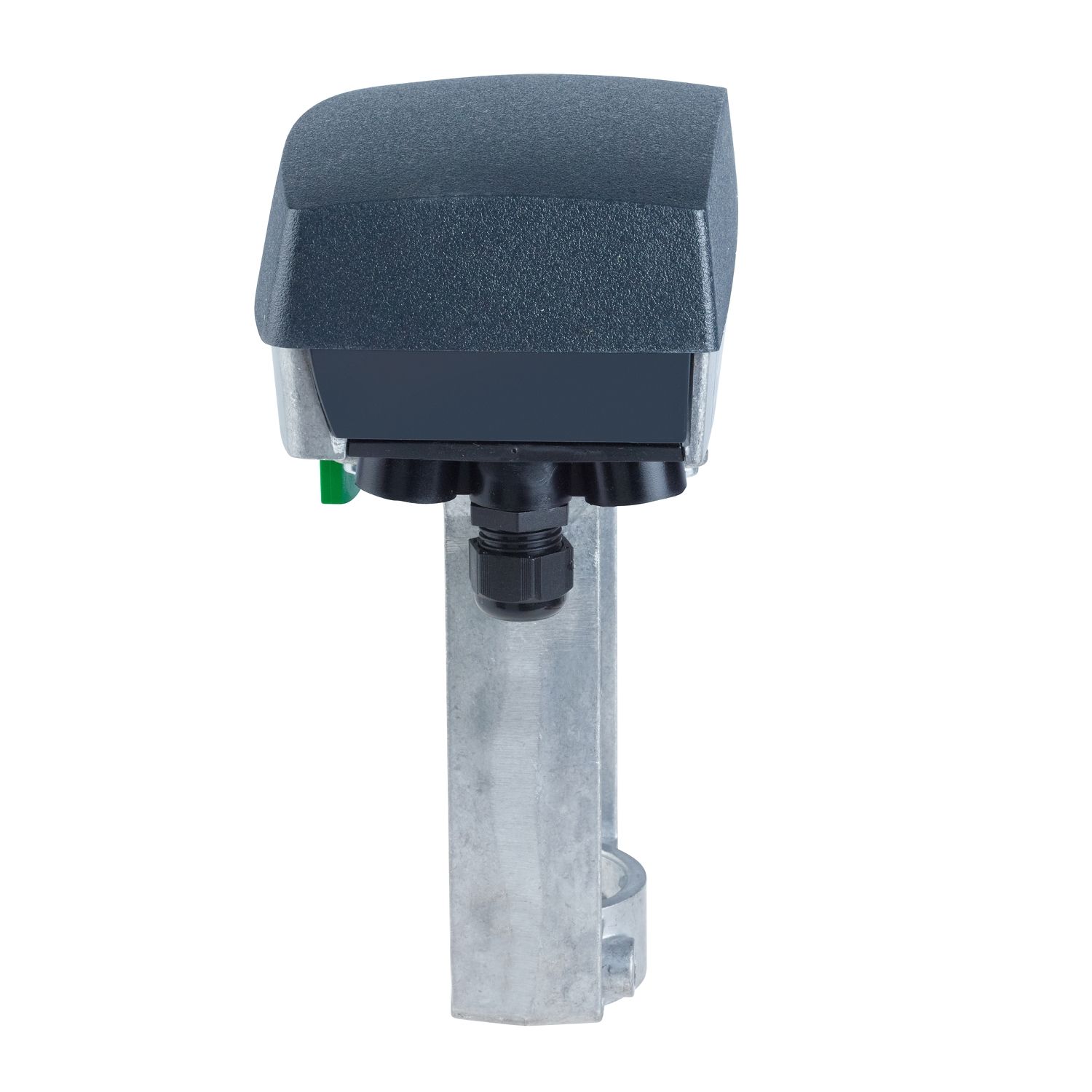

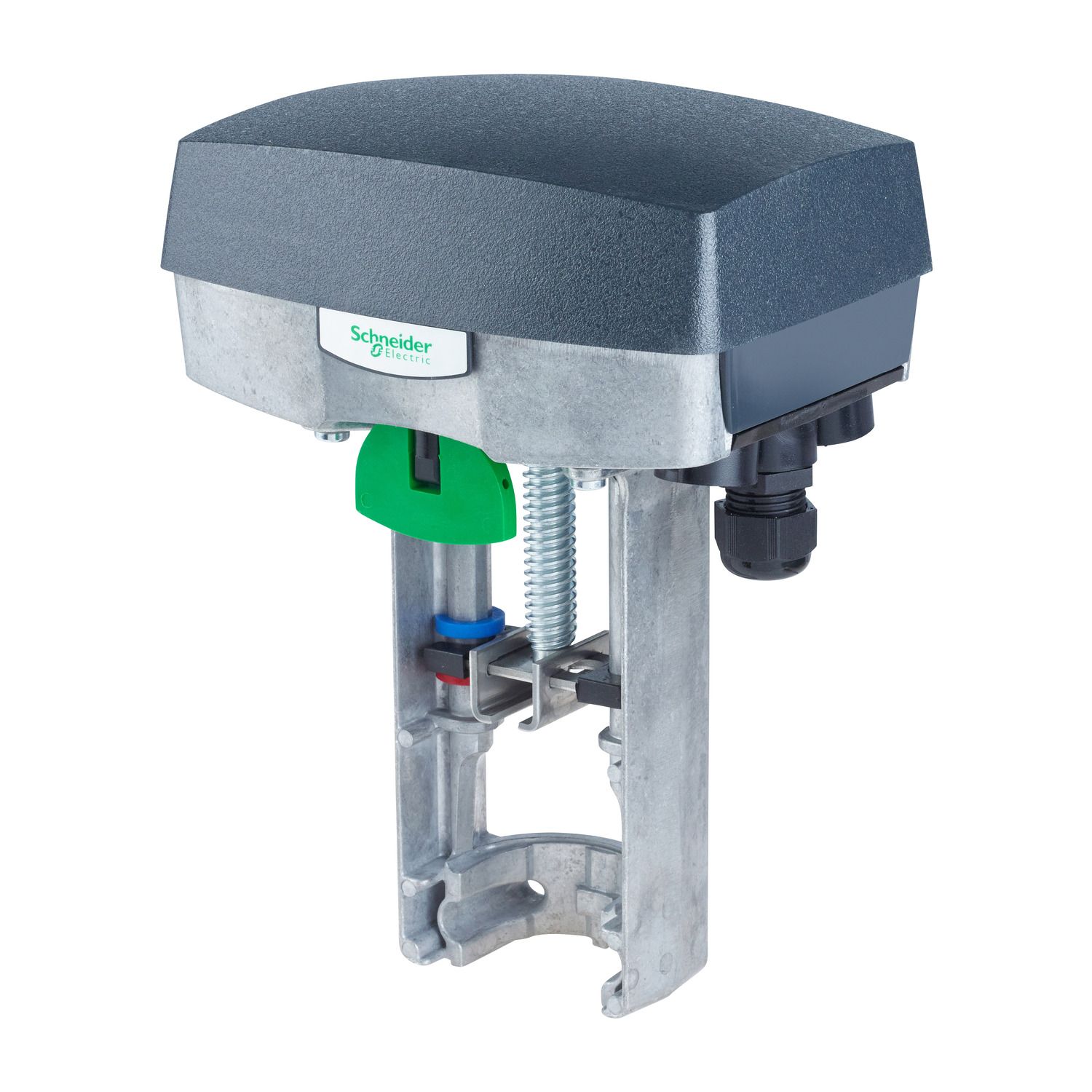

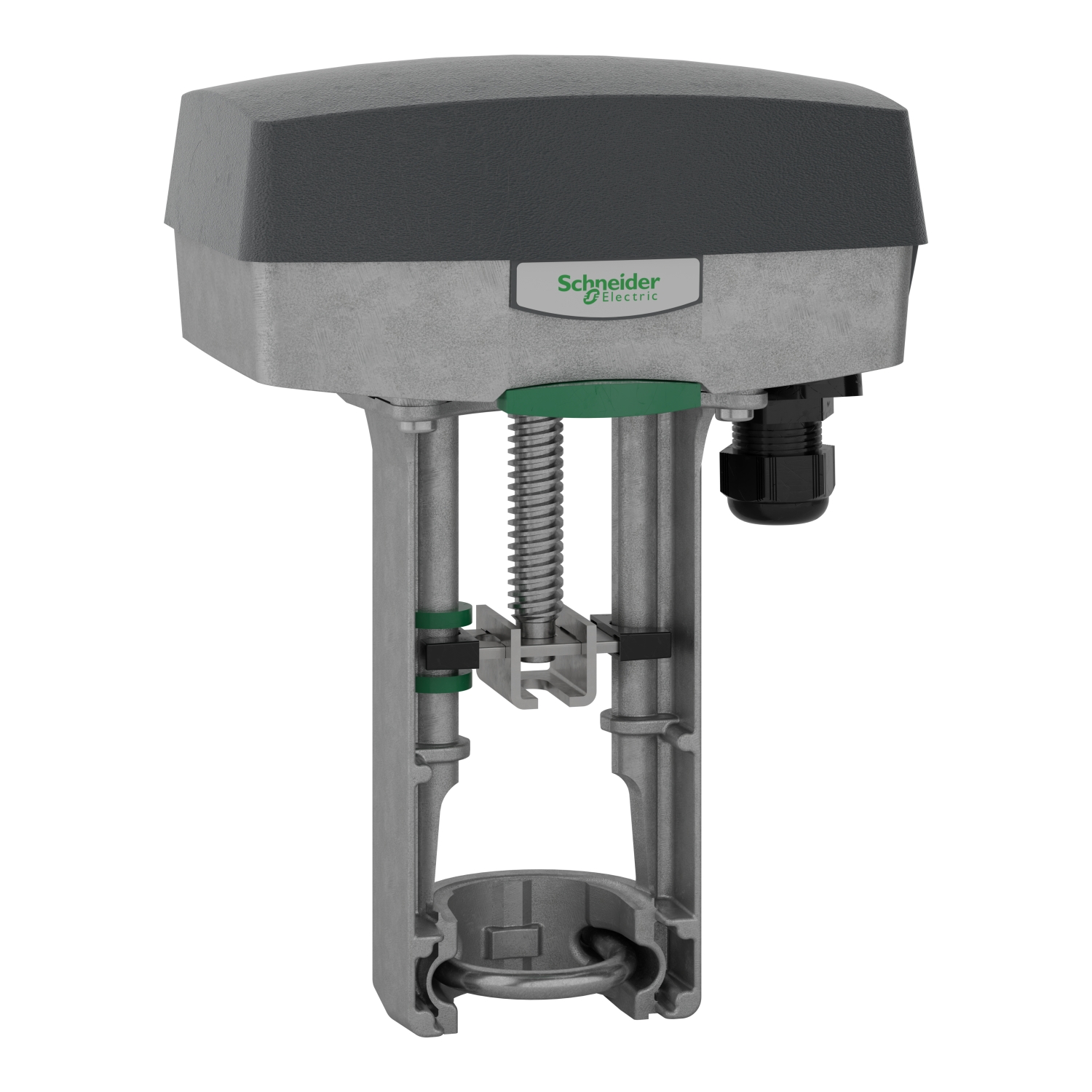

The SpaceLogic M800 is an actuator for the control of 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 V, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 800 N, IP 54 Protection class. S2 Output - Auxiliary end point switch (optional): 2 x SPDT. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal. Conduit connection 3 x M20 screwed.
