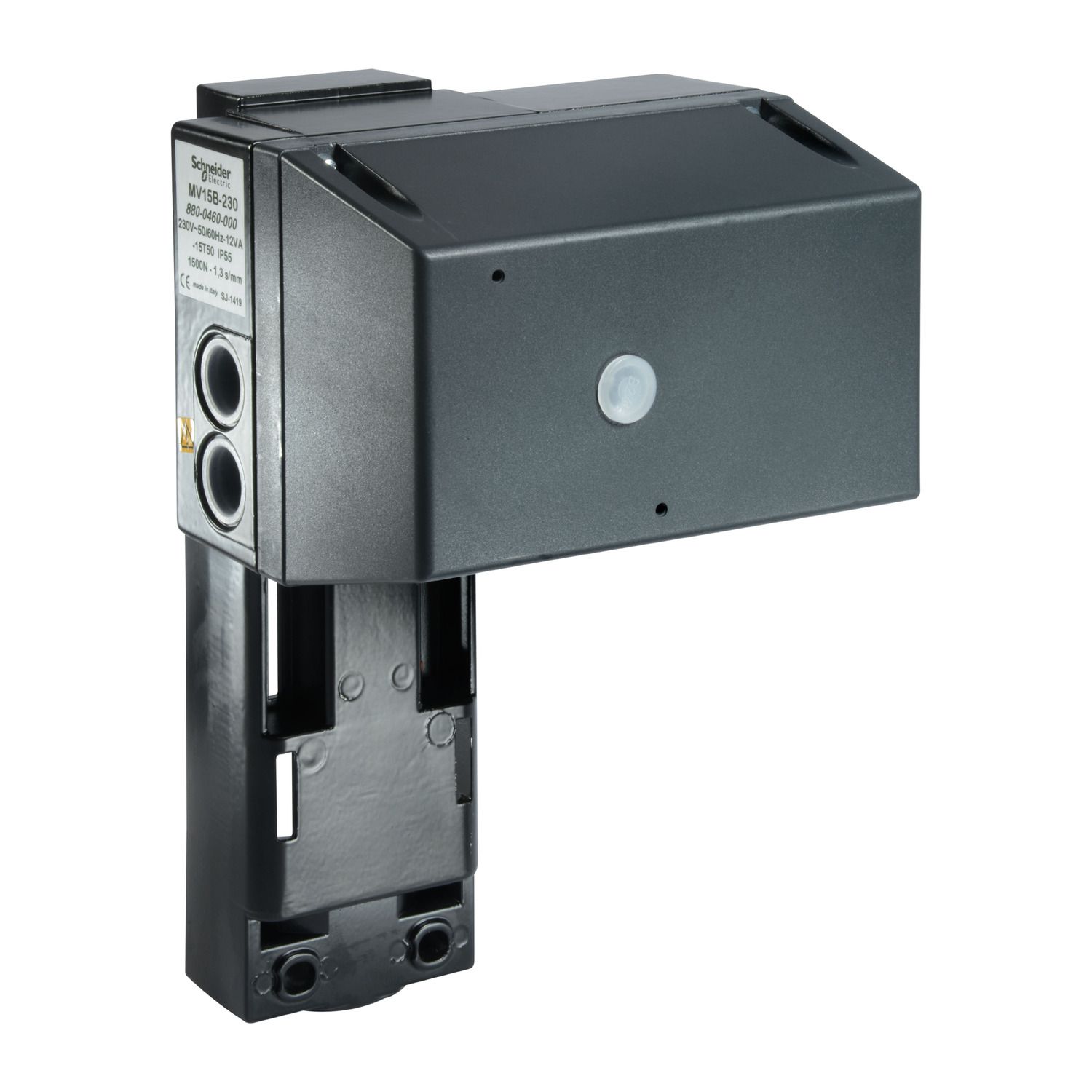

The MV15B is a powerful 3-point floating actuator for the control of 2-way and 3-way globe valves. The actuator self adjusts to the stroke of whatever valve it is connected to. The U-bolt mounting makes for a very easy and quick installation. A manual override is standard on all models. Supply voltage: 230 Vac +/- 10%. Force: 1500 N, IP 54 Protection class. EMC 2014/30/EU, LVD 2014/35/EU. Conduit connection 2 x M20 screwed.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 1500 N |
| Hold-in power consumption in VA | 12-12 VA AC |
| Switch function | 2 SPDT (optional) |
| Stroke running time | 132 s |
| IP degree of protection | IP40 |
| Relative humidity | 0-90 % |
| Motor type | brushless DC motor |
| Ambient air temperature for storage | -10-50 °C |
| [Us] rated supply voltage | 230 V AC |
| Electrical insulation class | class II |
| Product destination | globe valve |
| Control type | automatic reset |
| Product or component type | actuator |
| Power consumption in VA | 12 VA AC |
| Transformer rated power in VA | 15 VA |
| Targeted region | Australia., Asia Pacific., Europe |
| Stroke length | 9-52 mm |
| Force lbf | 337 lbf |
| Actuator | linear |
| Ambient air temperature for operation | -15-50 °C |
| Power loss return | non-spring return |
| Actuator model | MV15B |
| Control signal | floating |
| Stroke auto calibration | True |
| Conduit connection | 2 x 20 mm conduit hole |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | MV15B |
| Position indicator | Stroke indicator on yoke |
