Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product specific application | motor-control feeder |
| LV panel system name | Prisma Plus disconnectable Motor Control Center |
| Range | Prisma |

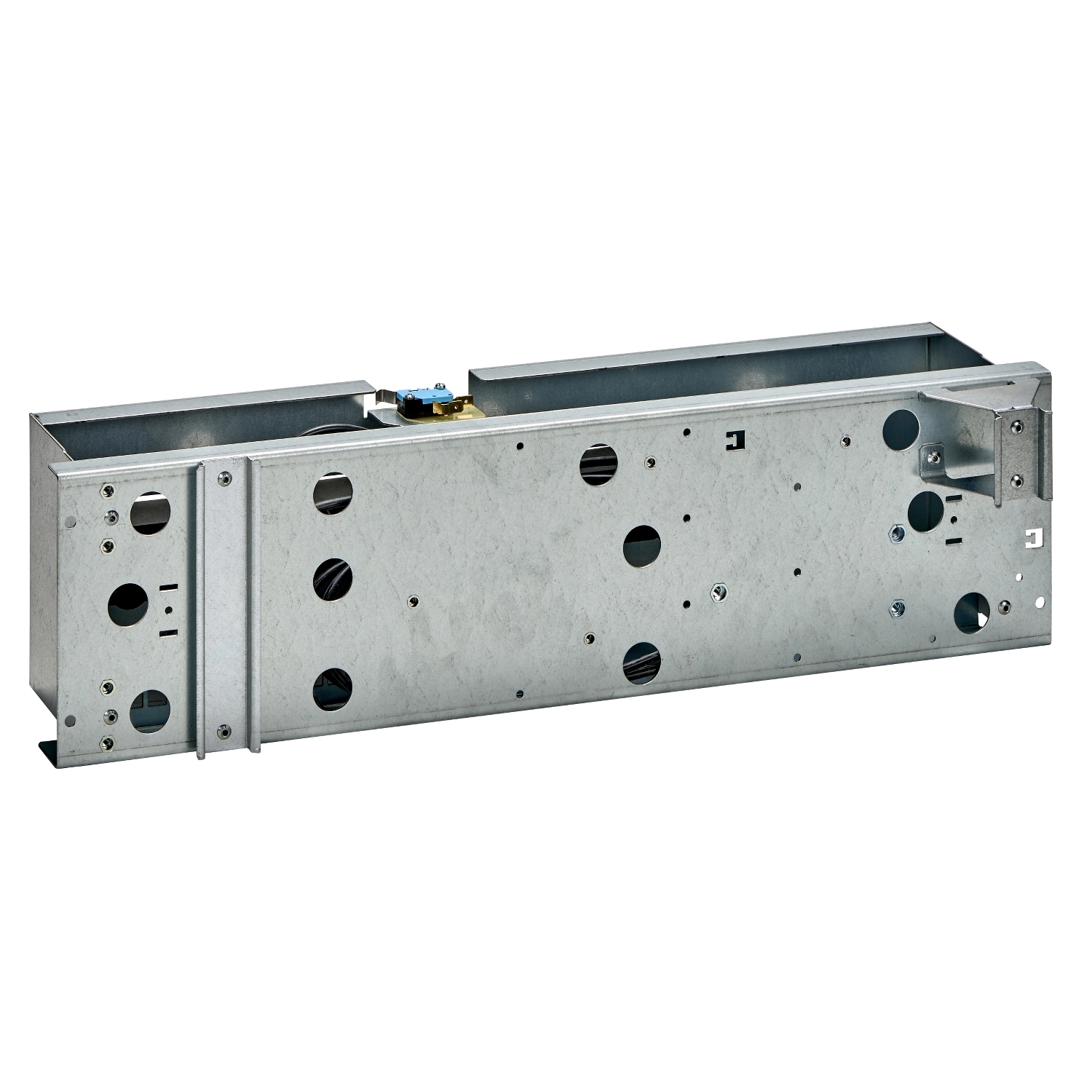

| Product or component type | mounting plate fixed part |
| Complementary | |
| Special colour options | yes |
| Colour code | RAL 9001 |
| Depth | 100 mm |
| Width | 600 mm |
| Number of vertical modules [50 mm] | 3 |
| Colour | white |
| Mounting mode | disconnectable |
| Enclosure/cubicle width | 650 mm |
| Enclosure/cubicle description | cubicle |
| Installed device | NS80HMA + LC1-D80 non reversing with circuit-breaker + contactor + thermal protection, NS80HMA + LC1-D50 to D65 non reversing with circuit-breaker + contactor + thermal protection, GV2-L + LC2-D09 to D32 reversing with circuit-breaker + contactor + thermal protection, GV2-L + LC1-D40 to D50 non reversing with circuit-breaker + contactor + thermal protection, GV2-L + LC1-D09 to D32 non reversing with circuit-breaker + contactor + thermal protection, GV2-L + 2LC1-D09 to D32 2 speed with circuit-breaker + contactor + thermal protection, GS1-F + LC2-D09 to 25 reversing with switch-disconnector fuse + contactor + thermal protection, GS1-F + LC1-D09 to 80 non reversing with switch-disconnector fuse + contactor + thermal protection, GS1-F + 2LC1-D09 to 25 2 speed with switch-disconnector fuse + contactor + thermal protection |
| Height | 150 mm |
