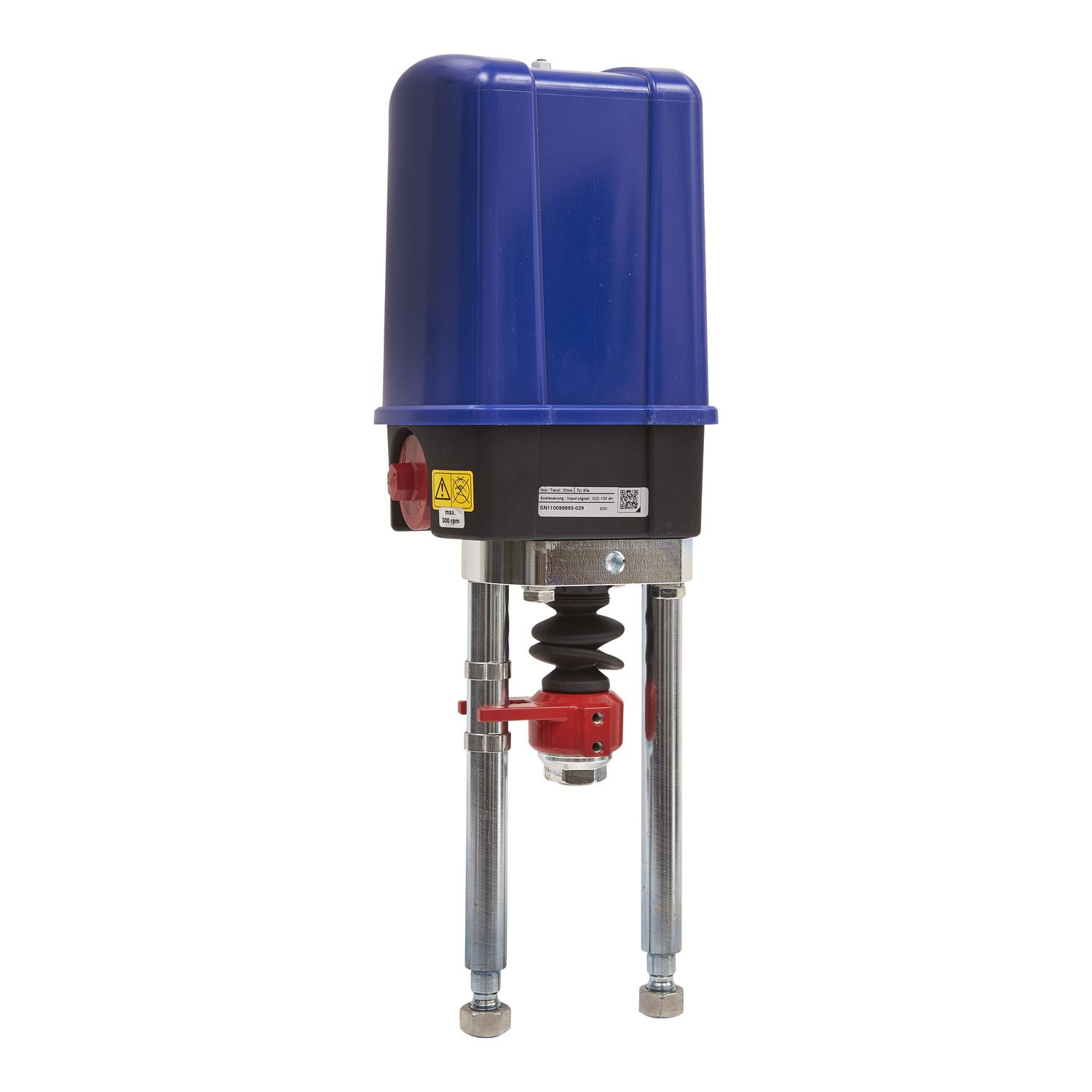

The M22 actuator is a powerful actuator suitable for driving DN125 and DN150 sizes of valves types V222, V292 and V321. Supply voltage: 24 Vac +10% / -15%. Analog Control Input: 0…10 V, 2…10 V. Force: 2200 N, IP 65 Protection class. Power consumption 50 Hz: 12 VA. Analog Control Input: …1 V, 2…1 V. Force: 22 N, IP 65 Protection class. Power consumption 5 Hz: 12 VA.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Hold-in power consumption in VA | 15-15 VA AC |
| Product destination | globe valve |
| Duty cycle | 80 % |
| Product or component type | actuator |
| Power consumption in VA | 15 VA AC |
| Targeted region | Australia., Asia Pacific., Europe |
| Complementary | |
| Force N | 2200 N |
| Stroke running time | 102 s |
| [Us] rated supply voltage | 24 V AC |
| Electrical insulation class | class II |
| Control type | automatic reset |
| Stroke length | 50-50 mm |
| Analogue input range | 0...10 V DC |
| Force lbf | 495 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP65 |
| Relative humidity | 0-90 % |
| Ambient air temperature for storage | -20-70 °C |
| Ambient air temperature for operation | -20-70 °C |
| Power loss return | non-spring return |
| Actuator model | M22 |
| Control signal | modulating |
| Stroke auto calibration | False |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product series | M22 |
| Position indicator | Stroke indicator on yoke |
