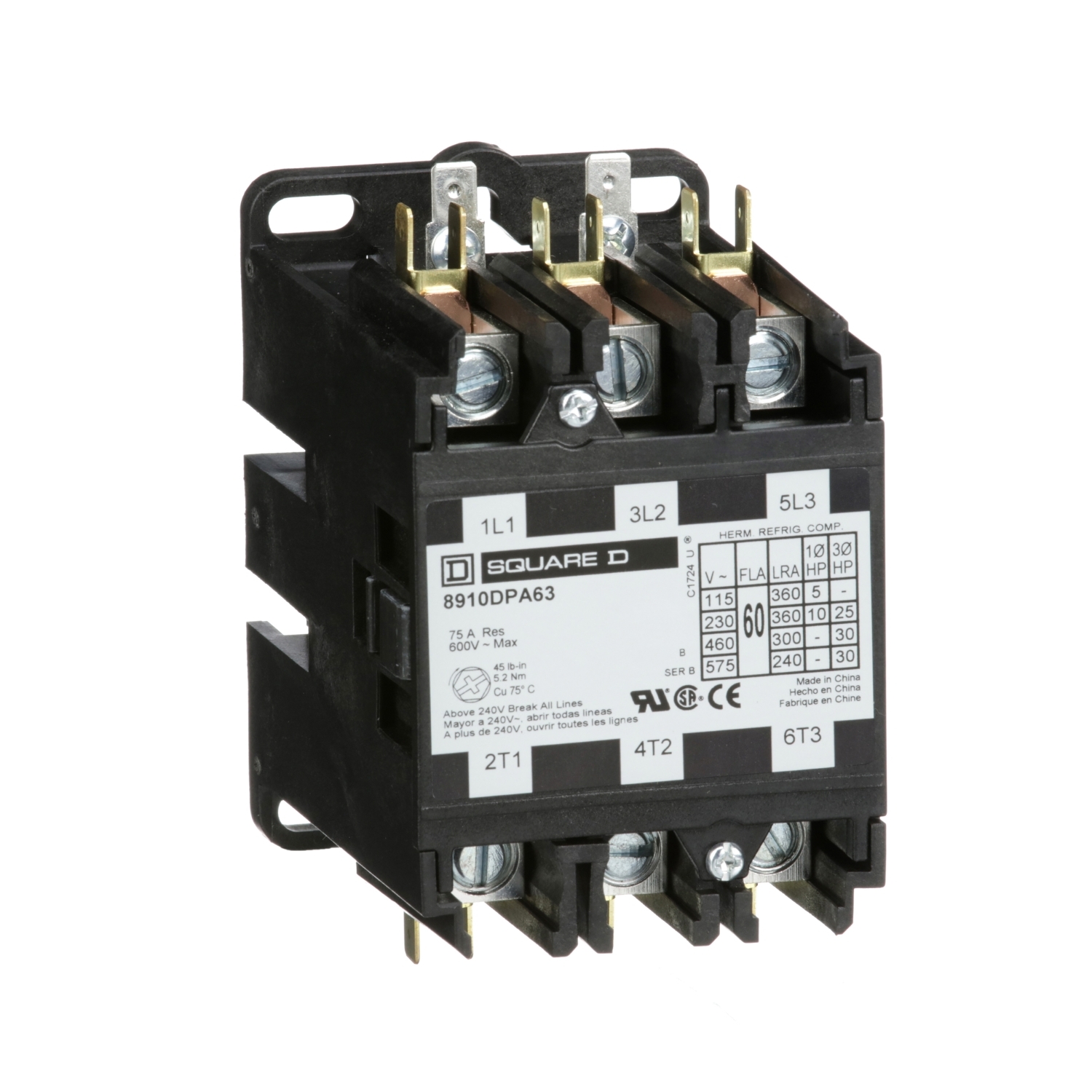

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [In] rated current | 60 A |
| Poles description | 3P |
| Pole contact composition | 3 NO |
| Product or component type | Definite Purpose Contactor |
| Range of product | DPA |
| Complementary | |
| [Ue] rated operational voltage | 600 V AC |
| Electrical connection | quick connect terminals, box lugs |
| Network number of phases | 3 phases |
| Motor power hp | 25-25 hp at 230 V AC, 3 phases, 30-30 hp at 575 V AC, 3 phases, 30-30 hp at 460 V AC, 3 phases, 10-10 hp at 230 V AC, 1 phase, 5-5 hp at 115 V AC, 1 phase |
| Locked rotor rated current | 240 A at 575 V AC, 300 A at 460 V AC, 360 A at 277 V AC |
| [Uc] control circuit voltage | 220 V AC at 50 Hz, 208...240 V AC at 60 Hz |
| Environment | |
| Product certifications | CSA, UL recognized |
