Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

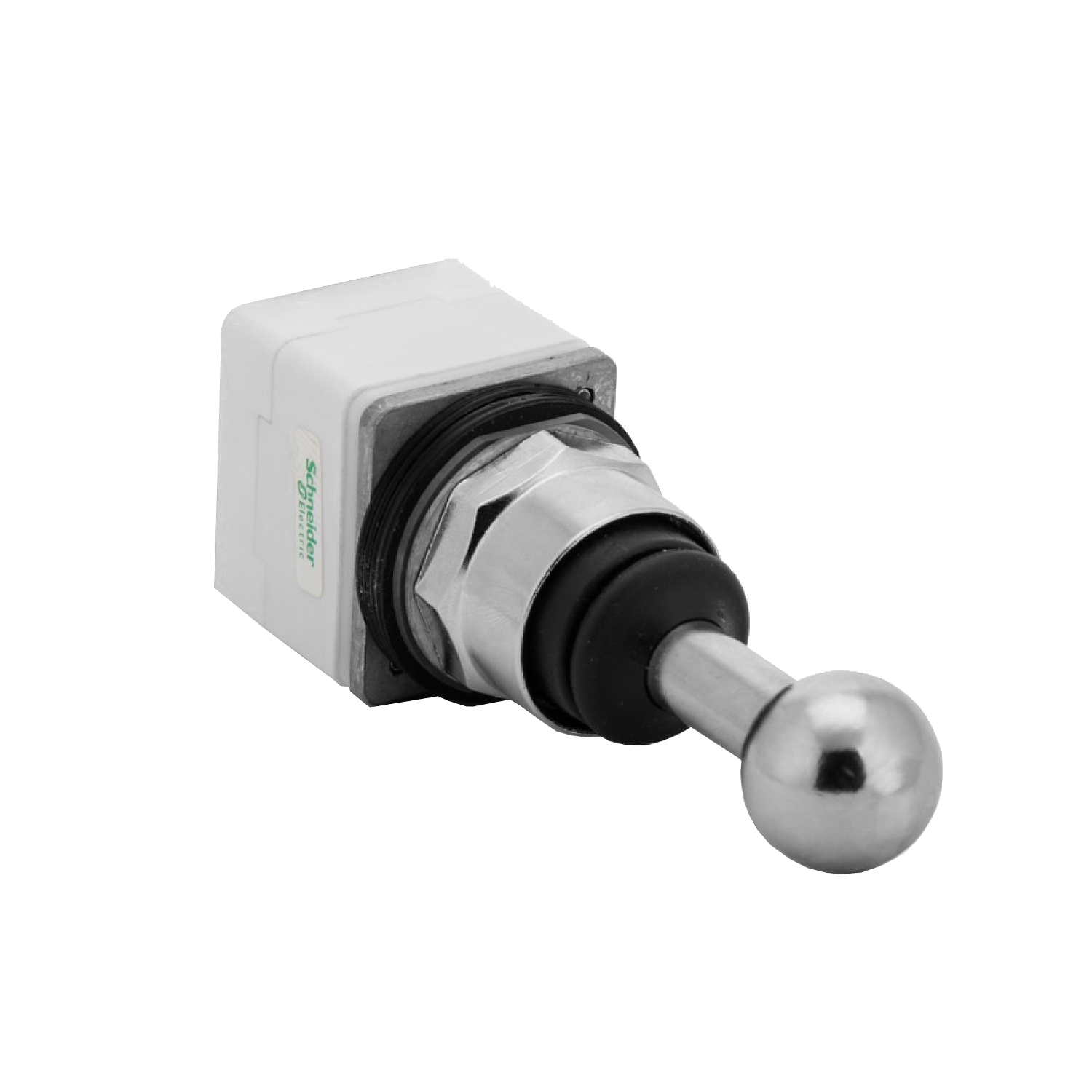

| Device short name | 9001K |
| Operator profile | 80 mm long operating shaft |
| Sale per indivisible quantity | 1 |
| Product or component type | head for joystick controller |
| Type of operator | spring return |
| Range of product | Harmony 9001K |
| Complementary | |
| Shape of screw head | cross slotted |
| Tightening torque | 0.8-0.8 N.m conforming to IEC 60947-1 |
| Return | to centre |
| Operating position | any position |
| Type of operator | spring return |
| [Ie] rated operational current | 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA |
| Bezel material | metal |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Contacts type and composition | without contact block |
| Connections - terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1 |
| Device presentation | basic element |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| Size | 30 mm |
| Net weight | 0.372 kg |
| Operator direction information | 2 directions |
| Shape of signaling unit head | octagonal |
| [Ith] conventional free air thermal current | 10 A |
| Mounting diameter | 30 mm |
| Positive opening | with conforming to IEC 60947-5-2 |
| Short-circuit protection | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| Contacts usage | standard |
| Environment | |
| Protective treatment | TC |
| NEMA degree of protection | NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1 |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Vibration resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, JIS C 852, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | UL 508, NEMA |
