Acti9 iC60 RCBO - auxiliary contact - 1OF - AC/DC

    Previous Product
Next Product
Picture of Acti9 iC60 RCBO - auxiliary contact - 1OF - AC/DC

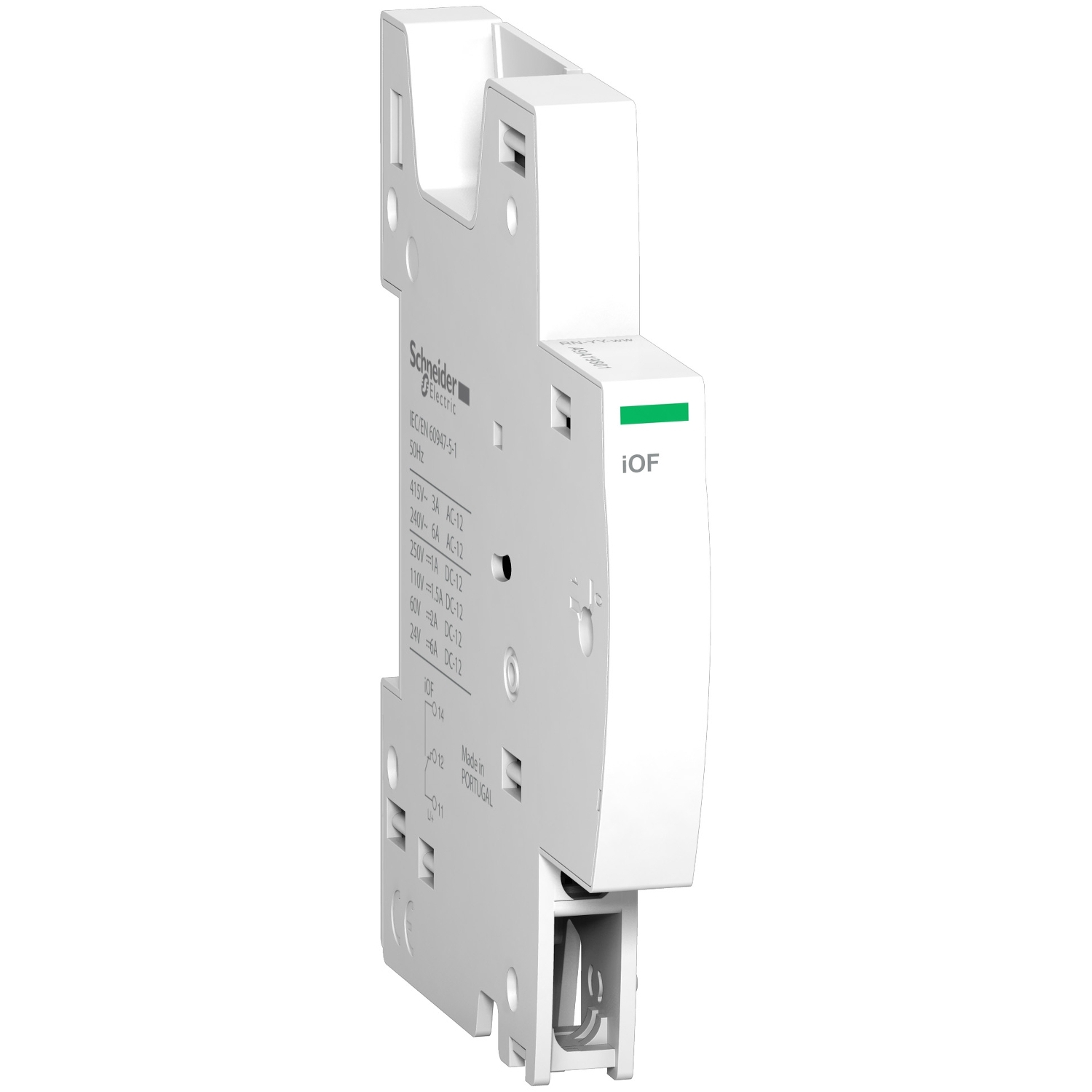

Acti9 iC60 RCBO - auxiliary contact - 1OF - AC/DC
  • Provides remote indication of the position of the associated breaker
  • Can be compatible with the Acti9 iC60 RCBO
  • Performs reliably in environments with temperatures up to 60°C
Manufacturer: Schneider Electric
SKU: A9A19801
GTIN: 3606481158048
Circularity Profile
Environmental Disclosure
Instruction sheet
Old price: $63.58 inc GST
$22.20 inc GST
Supported cards
Supported cards
This Acti9 OF electrical auxiliary is an open/close contact. It is dedicated to iC60, RCBO OF iID products. It comes with 1 changeover contact indicating the open or closed position (OF). It reports also the electrical fault, actuation of the tripping auxiliary, Open or Closed position of the associated device informations to a programmable logic controller. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 86mm x (D) 71mm. Product weight is 33.5g. The degree of protection is IP20 at terminals and IP40 in enclosure. This product complies with EN/IEC 60947-5-1 standard.
