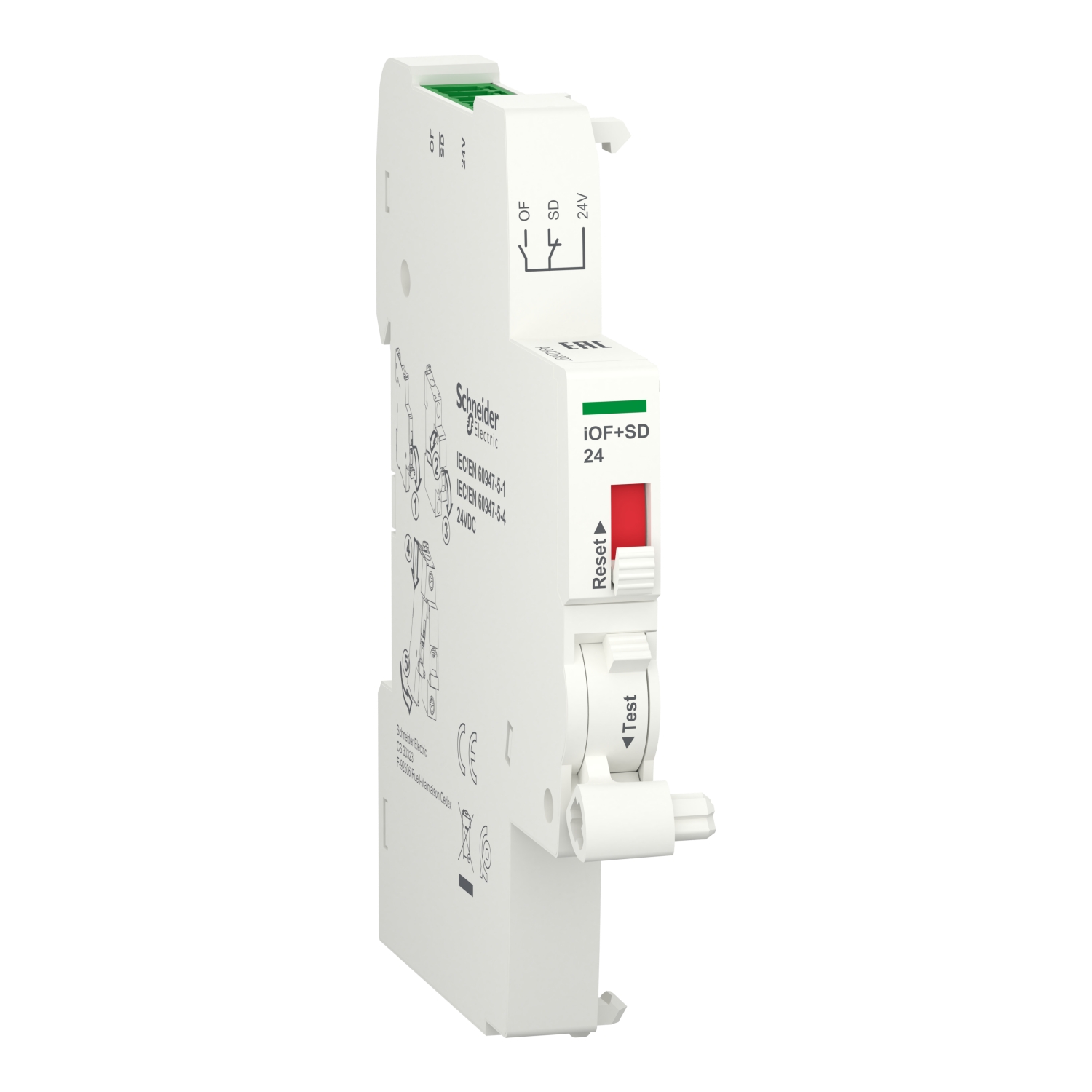

This Acti9 iOF+SD24 electrical auxiliary is a double open/close and fault indicating contact. It is dedicated to iC60, iC40, iCV40, iID, iID40, iDPN Vigi, iSW-NA, iC60 & iID double terminals. The 2 contacts 1 NO + 1NC can report the signalling information of the associated device to the Acti9 Smartlink. It reports also the electrical fault, actuation of the tripping auxiliary, Open or Closed position of the associated device informations to a programmable logic controller. The width in 9mm pitches is 1. It is compatible with downstream com busbar. Remote indication of position and tripping upon a fault of the associated device. The In rated operational current is from 2mA (mini) up to 100mA (maxi) depending on the rated voltage. The Ue rated operational voltage is 240VDC. The operating temperature is -25°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iOF+SD 24 |
| Device application | for Smartlink interface |
| Range | Acti9 |
| Range of product | iDPN Vigi, iSW-NA, iC60, RCA, iID, ARA |
| [In] rated current | DC-12 2-100 mA at 24 V, DC +/- 20 % |
| Signal contacts composition | 1 NO + 1 NC |
| Product or component type | OC and fault contact |
| 9 mm pitches | 1 |
| Complementary | |
| Product compatibility | ARA, double terminal, RCA, iC60, Ti24, iSW-NA, iID, iDPN Vigi |
| Colour | white |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664-1 |
| Compatibility code | iOF+SD 24 |
| Electrical durability | 20000 cycles conforming to IEC 60947-5-4 |
| Mounting mode | clip-on |
| Wire stripping length | 10 mm |
| Comb busbar and distribution block compatibility | bottom: YES |
| Height | 88 mm |
| Depth | 73.5 mm |
| Market segment | residential, small commercial |
| Width | 9 mm |
| Local signalling | mechanical indicator |
| [Ui] rated insulation voltage | 500 V conforming to IEC 60664-1 |
| Net weight | 25 g |
| Connections - terminals | spring-loaded terminal Ti24 (top) 2 cable(s) 0.5-1.5 mm² - rigid, spring-loaded terminal Ti24 (top) 2 cable(s) 0.5-1.5 mm² - flexible |
| Range compatibility | Acti 9 Acti9 iC40, Acti 9 connectors Ti24, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 ARA, Acti 9 Acti9 iID, Acti 9 Acti9 iC60 RCBO, Acti 9 Acti9 iC65, Acti 9 Acti9 iC60, Acti 9 Acti9 iSW-NA |
| Mounting support | DIN rail |
| Environment | |
| Relative humidity | 93-93 % at 40-40 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Tropicalisation | 2 conforming to IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| Overvoltage category | III |
| Quality labels | CE |
| Standards | IEC 60947-5-1, IEC 60947-5-4 |
