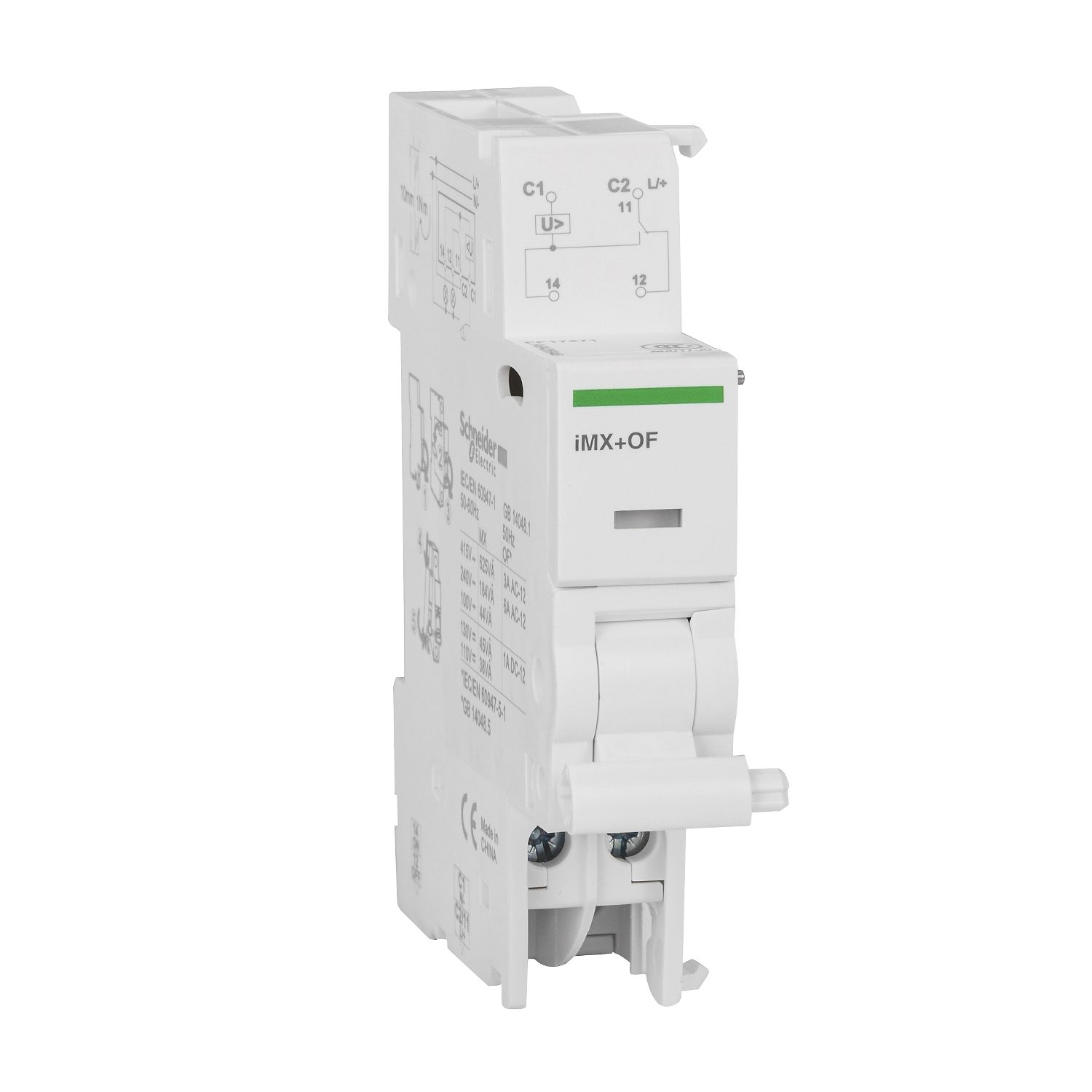

This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. Emergency stoppage by normally open pushbutton. The product trips the associated device when it is powered on by emergency pushbutton. The width in 9mm pitches is 2. The Ue rated operational voltage is 100VAC to 415VAC or 110VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator light, red on the front face. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iMX+OF |
| Product compatibility | double terminal, single terminal, iID, ARA, iDPN Vigi, iC60, RCA, iSW-NA |
| Signal contacts composition | 1 C/O |
| Range | Acti9 |
| Product or component type | shunt trip release with OC contact |
| 9 mm pitches | 2 |
| Range of product | iSW-NA, iDPN Vigi, iID, iC60 |
| [Uc] control circuit voltage | 110...130 V DC, 100...415 V AC 50/60 Hz |
| Complementary | |
| Tightening torque | 1-1 N.m |
| Market segment | residential, small commercial |
| Width | 18 mm |
| Colour | white |
| Local signalling | action indicator |
| Compatibility code | iMX+OF |
| Mounting mode | clip-on |
| Connections - terminals | clamp terminal - 1 cable(s) 4-4 mm² - flexible, clamp terminal - 2 cable(s) 2.5-2.5 mm² - rigid, clamp terminal - 1 cable(s) 6-6 mm² - rigid, clamp terminal - 2 cable(s) 2.5-2.5 mm² - flexible with cable end |
| Comb busbar and distribution block compatibility | top: YES |
| Range compatibility | Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65 |
| Mounting support | DIN rail |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Standards | EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -35-70 °C |
