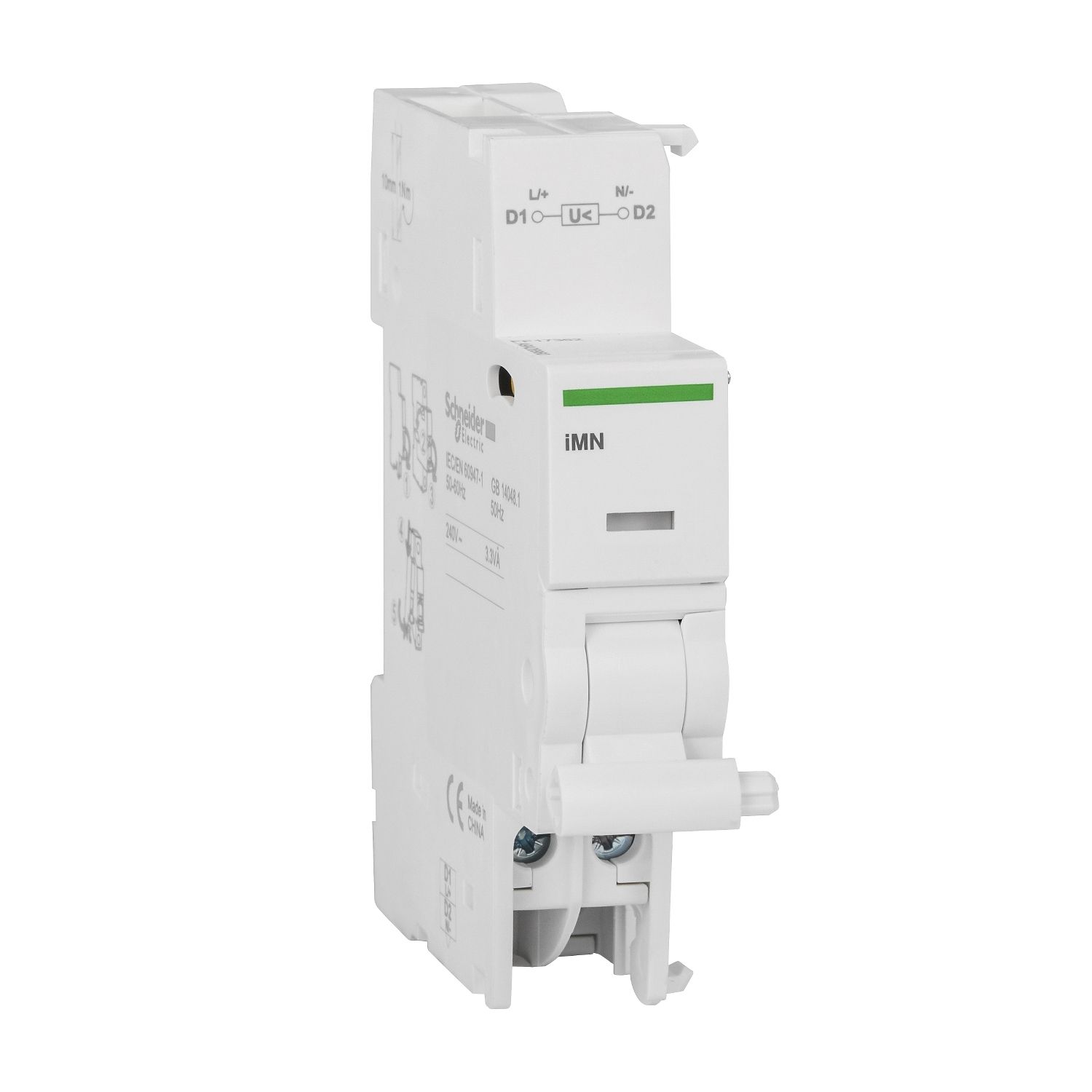

Undervoltage release, Acti9, iMN, voltage release, 220...240 V AC

Manufacturer: Schneider Electric

SKU: A9A26960

GTIN: 3606480087998

Catalog

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $199.76 inc GST

Price: $69.75 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Acti9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. Emergency stoppage by normally open pushbutton. It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting. The width in 9mm pitches is 2. It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un). The Uc control circuit voltage is 220…240VAC. The Ue rated operational voltage is 200VAC to 240VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards.

Products specifications

Attribute name	Attribute value
Main
Device short name	iMN
Product compatibility	double terminal, iC60, iID, single terminal, RCA, iSW-NA, iDPN Vigi, ARA
Control type	standard
Range	Acti9
Product or component type	undervoltage release
9 mm pitches	2
Range of product	iC60, iID, iDPN Vigi, iSW-NA
[Uc] control circuit voltage	220...240 V AC 50/60 Hz
Complementary
Tightening torque	1-1 N.m
Market segment	residential, small commercial
Width	18 mm
Colour	white
Local signalling	action indicator
Compatibility code	iMN
Mounting mode	clip-on
Connections - terminals	clamp terminal - 2 cable(s) 2.7-2.7 mm² - flexible with cable end, clamp terminal - 1 cable(s) 6-6 mm² - flexible, clamp terminal - 2 cable(s) 2.7-2.7 mm² - rigid, clamp terminal - 1 cable(s) 8-8 mm² - rigid
Comb busbar and distribution block compatibility	top and bottom: YES
Range compatibility	Acti 9 Acti9 iC40, Acti 9 Acti9 iC60 double terminals miniature circuit breaker, Acti 9 Acti9 iDPN (China version), Acti 9 Acti9 RCA, Acti 9 Acti9 iSW-NA, Acti 9 Acti9 iID, Acti 9 Acti9 iDPN Vigi, Acti 9 Acti9 ARA, Acti 9 Acti9 iC65
Mounting support	DIN rail
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Standards	EN/IEC 60947-5-1
Ambient air temperature for operation	-35-70 °C
