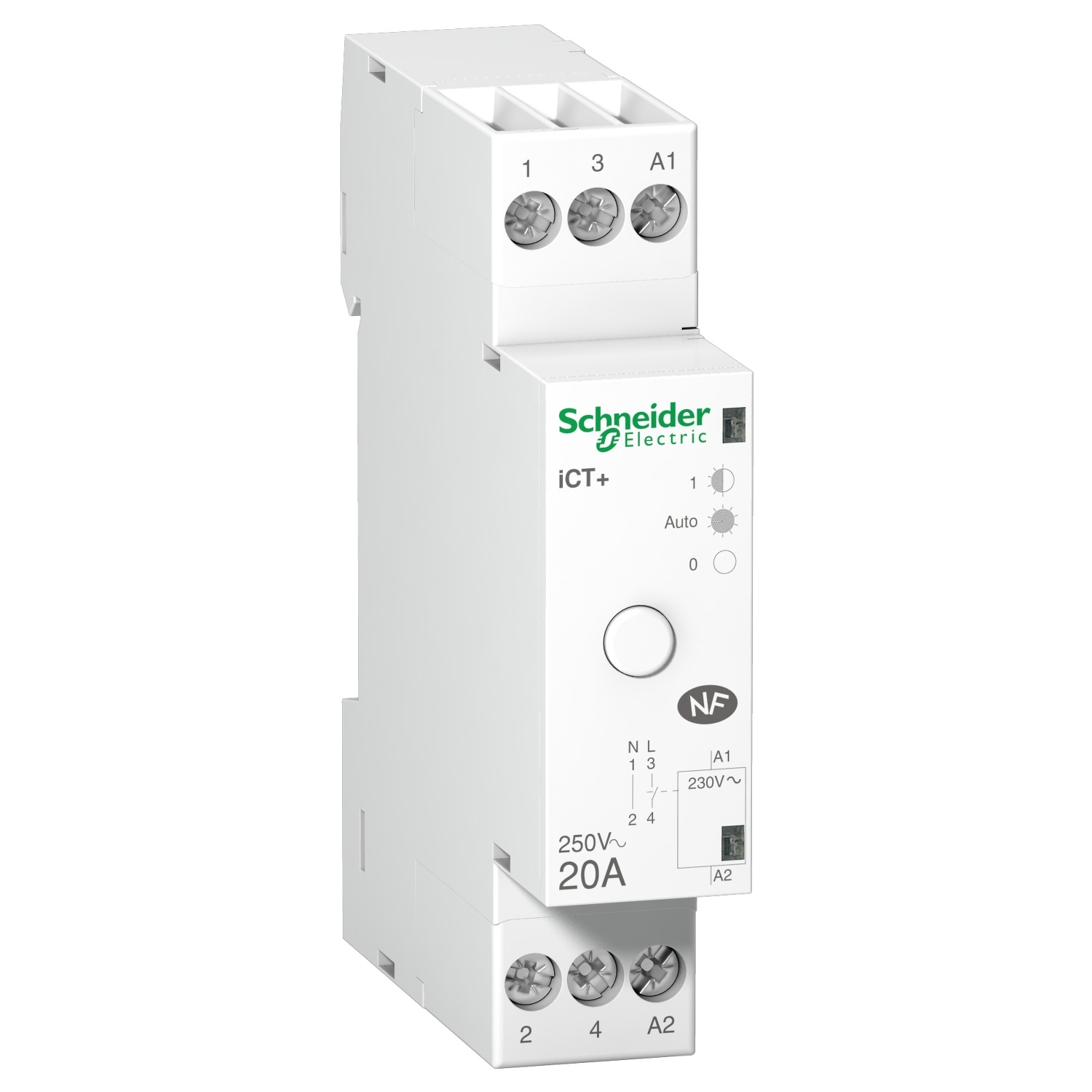

This Acti9 iCT+ is a modular silent contactor. It is a 1P remote and manual control device with 1 normally open contact. The rated current is 20A for AC-7a and 20A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC. It is especially accurate for LED lighting control thanks to its crossing technology. This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications. This product is compliant with EN/IEC 60669-2-2. Electrical endurance goes up to 5000000 cycles. The maximum switching operations is 6 per minute. The Ui rated insulation voltage is 300VAC. Pollution degree is 3. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 81mm x (H) 18mm x (D) 60mm. The weight is 70g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 55°C. The storage temperature is from -40°C to 60°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iCT+ |
| Device application | control circuit |
| Poles description | 1P |
| [Ie] rated operational current | 20 A AC-7B, 20 A AC-7A |
| Control type | remote and manual control |
| Pole contact composition | 1 NO |
| Range | Acti9 |
| Product name | Acti9 iCT+ |
| Product or component type | contactor |
| Network type | AC |
| Range of product | iCT |
| [Uc] control circuit voltage | 230 V AC 50 Hz |
| Complementary | |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Maximum power | 3.6 kW at 250 V AC |
| Product compatibility | no auxiliary |
| Tightening torque | 1-1 N.m |
| Depth | 60 mm |
| Market segment | residential, small commercial |
| Width | 18 mm |
| Colour | white |
| Local signalling | color indicator |
| Compatibility code | iCT+ |
| Mechanical durability | 5000000 cycles |
| Inrush power in VA | 11 VA |
| Electrical durability | 5000000 cycles |
| Mounting mode | clip-on |
| Control signal type | maintained |
| [Ui] rated insulation voltage | 300 V |
| Wire stripping length | 10 mm |
| Net weight | 70 g |
| Hold-in power consumption in VA | 1.1-1.1 VA |
| 9 mm pitches | 2 |
| Mounting support | 35 mm symmetrical DIN rail |
| Switching frequency | 6 switching operation/minute |
| Height | 81 mm |
| Network frequency | 50 Hz |
| Connections - terminals | tunnel type terminal1 cable(s) 4-4 mm² flexible, tunnel type terminal1 cable(s) 4-4 mm² rigid, tunnel type terminal2 cable(s) 2.5-2.5 mm² flexible, tunnel type terminal2 cable(s) 2.5-2.5 mm² rigid, tunnel type terminal2 cable(s) 1.5-1.5 mm² flexible with ferrule, tunnel type terminal2 cable(s) 1.5-1.5 mm² rigid |
| Environment | |
| Operating altitude | 2000 m |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-60 °C |
| Pollution degree | 3 |
| Noise level | 10 dB |
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Standards | EN 60669-2-1 |
| Ambient air temperature for operation | -5-55 °C |
| Product certifications | NF |
