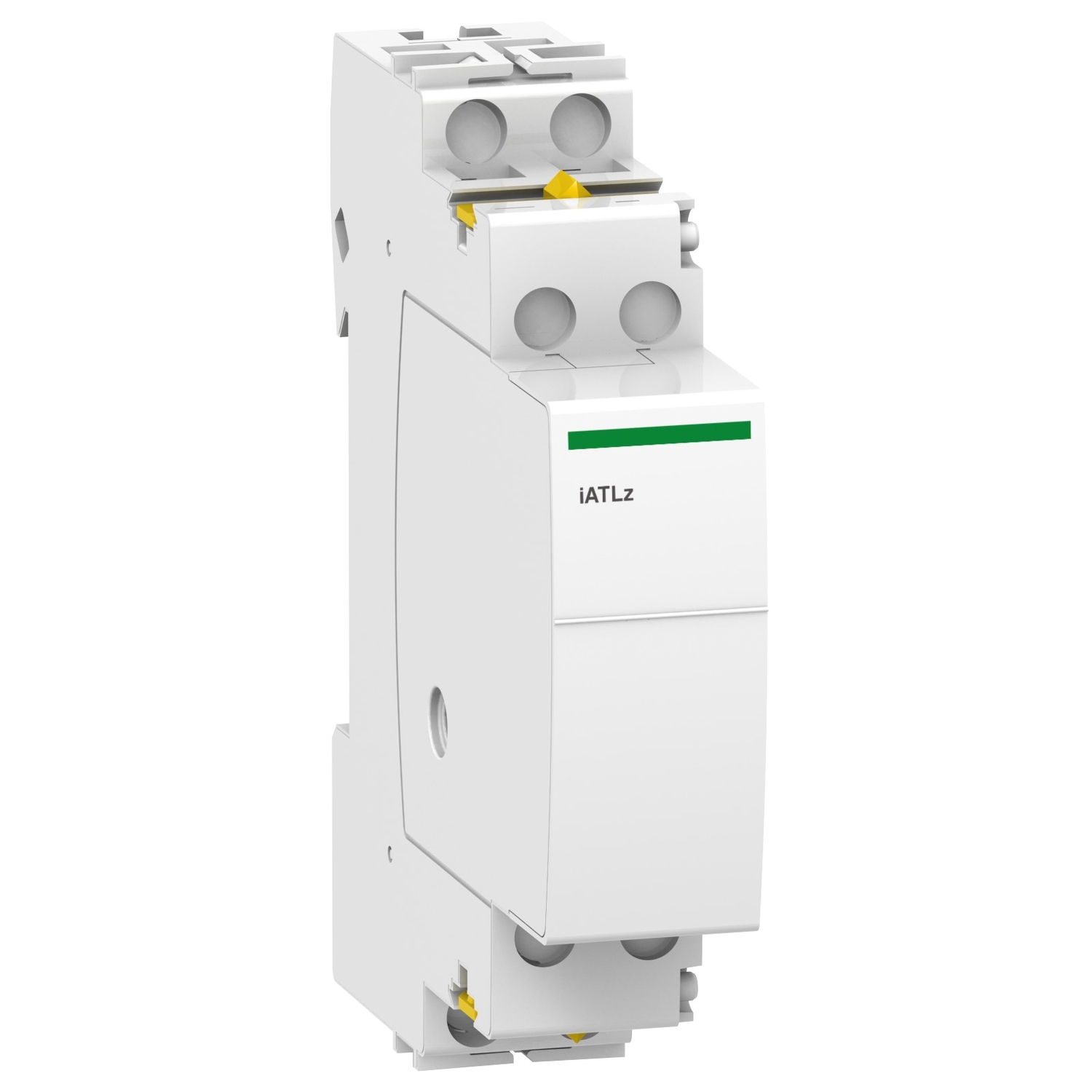

Control by illuminated push-buttons, Acti9, iATLz

Manufacturer: Schneider Electric

SKU: A9C15413

GTIN: 3606480374869

Environmental Disclosure

Old price: $189.20 inc GST

Price: $66.06 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Acti9 iATLz product is reliable control by illuminated push-buttons auxiliary. Control voltage is between 130VAC and 240VAC. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow step by step control of two circuits through a single push button. This product is compliant with EN/IEC 60669-2-2.

Products specifications

Attribute name	Attribute value
Main
Device short name	iATLz
Range	Acti9
Range of product	Acti9
Product or component type	impedance adaptation auxiliary
[Uc] control circuit voltage	130...240 V AC 50/60 Hz
Complementary
Product compatibility	iTL (16 A), iTL (32 A)
Tightening torque	1-1 N.m
Colour	white
Compatibility code	iATLz
Mounting mode	fixed, on left side of TL
Wire stripping length	11 mm
Remote control type	illuminated push-button 3 mA
Height	86 mm
Depth	71 mm
Market segment	residential, small commercial
Width	18 mm
[Ui] rated insulation voltage	440 V
Connections - terminals	tunnel type terminals1-4 mm² - flexible - with cable end, tunnel type terminals1-4 mm² - flexible, tunnel type terminals0.5-4 mm² - rigid - with cable end, tunnel type terminals0.5-4 mm² - rigid
[Uimp] rated impulse withstand voltage	4 kV
9 mm pitches	2
Range compatibility	Acti 9 Acti9 iTL iTLc, Acti 9 Acti9 iTL iTLs, Acti 9 Acti9 iTL iTLi, Acti 9 Acti9 iTL iTL
Mounting support	DIN rail
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP20 conforming to IEC 60529
Tropicalisation	2
Ambient air temperature for operation	-20-50 °C
Overvoltage category	III
Standards	EN/IEC 60669-2-2
