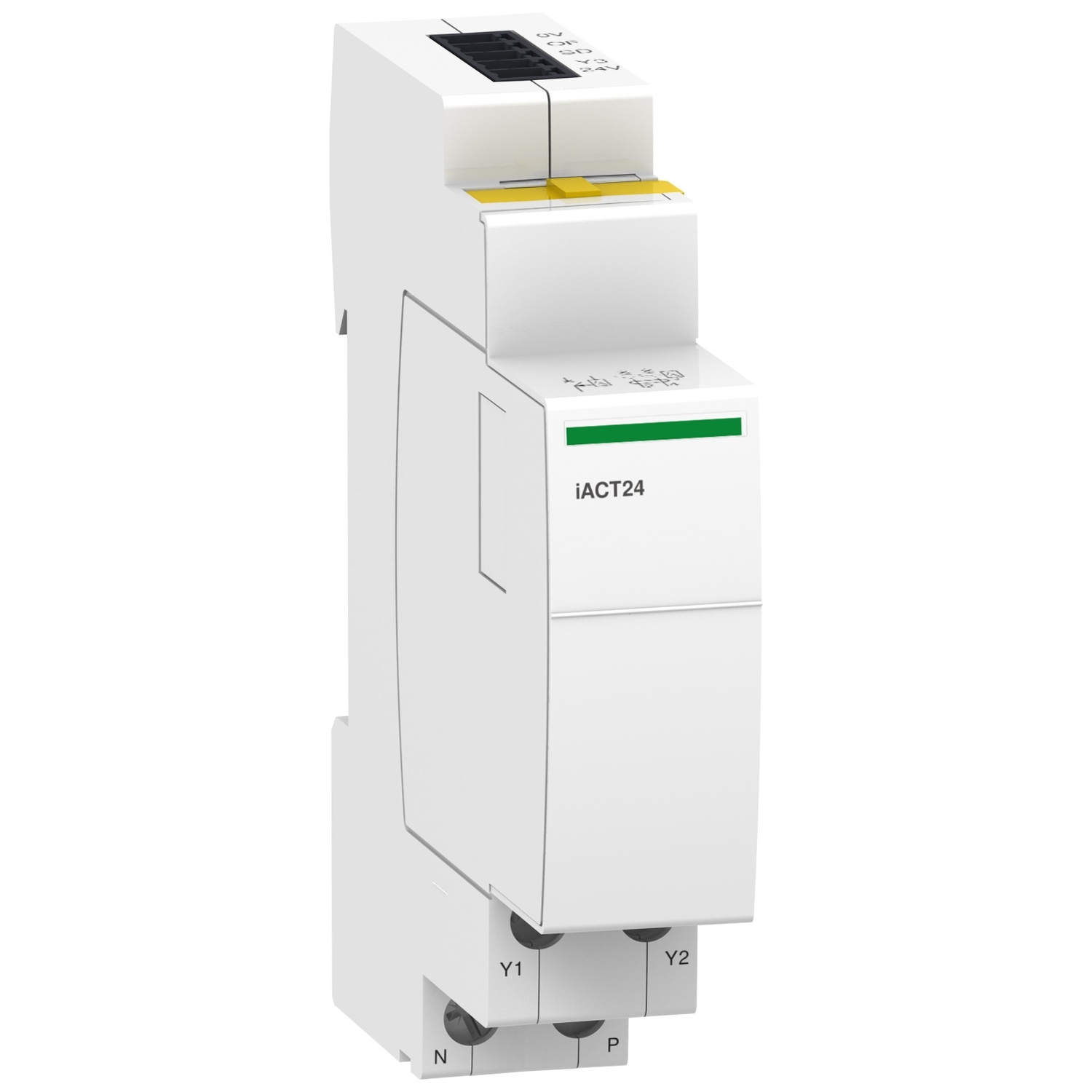

24V DC control and auxiliary contact 1 NO, Acti9, with Ti24 PLC interface

Manufacturer: Schneider Electric

SKU: A9C15924

GTIN: 3606480430619

Catalog

User guide

Instruction sheet

Old price: $217.80 inc GST

Price: $76.05 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Acti9 iACT24 is reliable control and indication auxiliary. It has 1 normally open signal contact. Control voltage is 24VDC and 230V AC. Mounting is performed on the left of Acti9 iCT contactors with operational current less than or equal to 25A. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Mechanical endurance goes up to 250000 cycles. This product is compliant with IEC/EN 60947-5-1.

Products specifications

Attribute name	Attribute value
Main
[Us] rated supply voltage	230 V AC at 50/60 Hz
Device short name	iACT24
Control type	remote control
Signal contacts composition	1 NO
Range	Acti9
Signalling circuit voltage	24 V DC: - 20...20 % 0.002...0.1 A
Product or component type	control and indication auxiliary
[Uc] control circuit voltage	24 V DC rising edge, 24 V DC falling edge, 230 V AC 50/60 Hz maintained >= 200 ms
Range of product	iCT
Complementary
Product compatibility	iCT 220/240 V 50 Hz, Acti 9 Smartlink, iCT 220 V 50 Hz, with PLC, iCT 230/240 V 50 Hz
Tightening torque	auxiliary supply: 1-1 N.m bottom, control circuit: 1-1 N.m bottom
Depth	68 mm
Overvoltage category	III
Market segment	small commercial, residential
Width	18 mm
Colour	white
Compatibility code	iACT24
Electrical durability	250000 cycles conforming to IEC 60947-5-1
Quality labels	CE
Mounting mode	fixed, on the left of CT
Wire stripping length	control circuit: 10 mm for top connection, auxiliary supply: 10 mm for bottom connection, control circuit: 10 mm for bottom connection
Connections - terminals	control circuit: spring-loaded terminal Ti24 1 cable(s) 0.5-1.5 mm² flexible, control circuit: spring-loaded terminal Ti24 2 cable(s) 0.25-0.75 mm² flexible, auxiliary supply: tunnel type terminals 2 cable(s) 1.5-1.5 mm² rigid, auxiliary supply: tunnel type terminals 2 cable(s) 2.5-2.5 mm² flexible, control circuit: tunnel type terminals 2 cable(s) 1.5-1.5 mm² rigid, control circuit: tunnel type terminals 2 cable(s) 2.5-2.5 mm² flexible
[Ui] rated insulation voltage	440 V
Comb busbar and distribution block compatibility	top: NO, bottom: YES
9 mm pitches	2
Mounting support	DIN rail
Immunity to microbreaks	10 ms
[Uimp] rated impulse withstand voltage	4 kV
Standards	IEC 60947-1 annex S
Height	81 mm
Undervoltage behaviour	no opening if loss of 24 V DC
Environment
Relative humidity	93-93 % at 40-40 °C conforming to IEC 60068-2
Ambient air temperature for storage	-40-80 °C
Pollution degree	3 conforming to IEC 60439-1
IP degree of protection	IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529
Tropicalisation	2 conforming to IEC 60947-5-1
Ambient air temperature for operation	-25-60 °C
