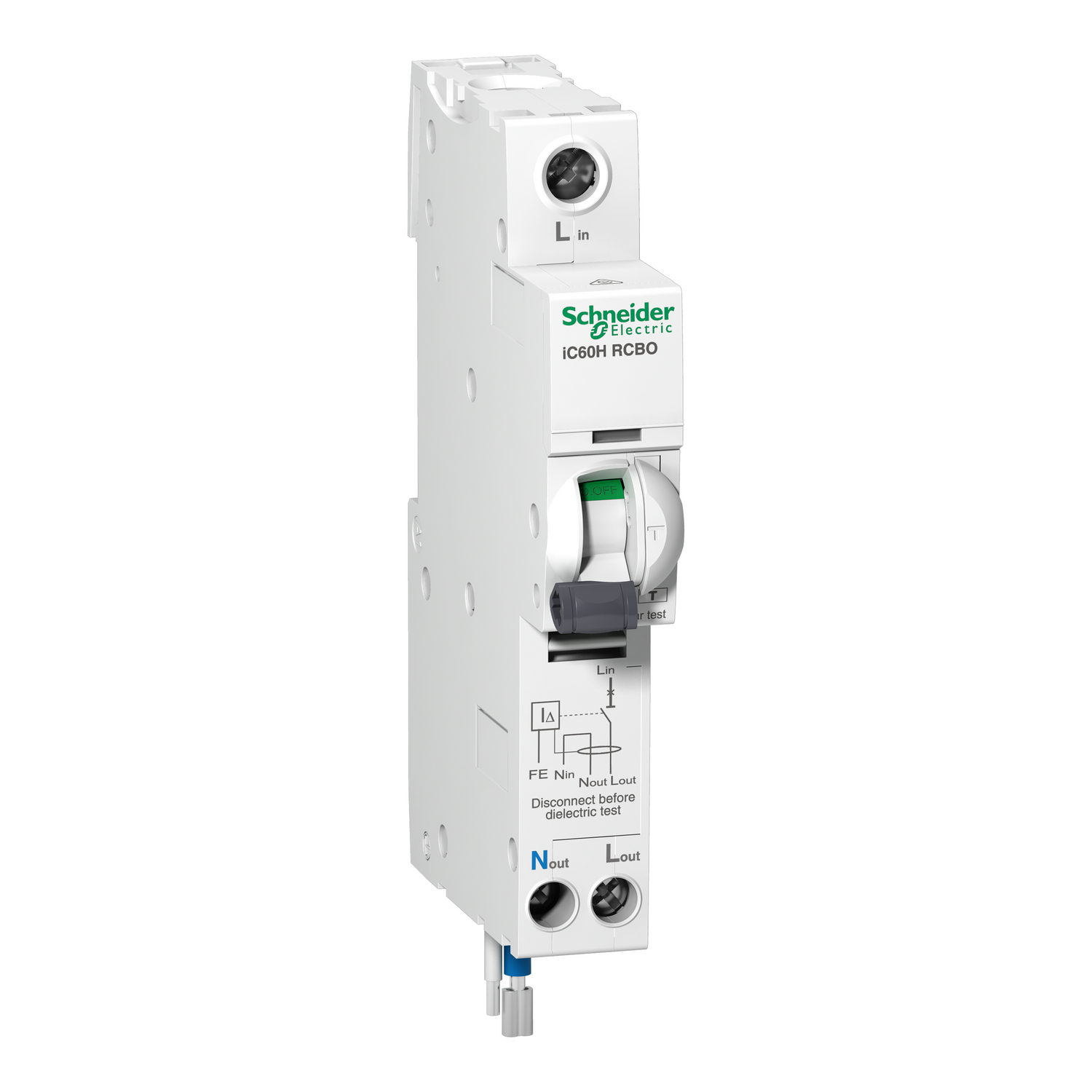

Acti9 iC60 RCBO is a device designed to provide enhanced protection for electrical circuits. It combines residual current protection with overcurrent protection, ensuring safety against both earth leakages and current overloads. It is a 1P+Ns circuit breaker with 1 protected pole, 25A In rated current and D tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. This product is compliant with BS EN 61009-1 and IEC 61009-1 standards. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.
