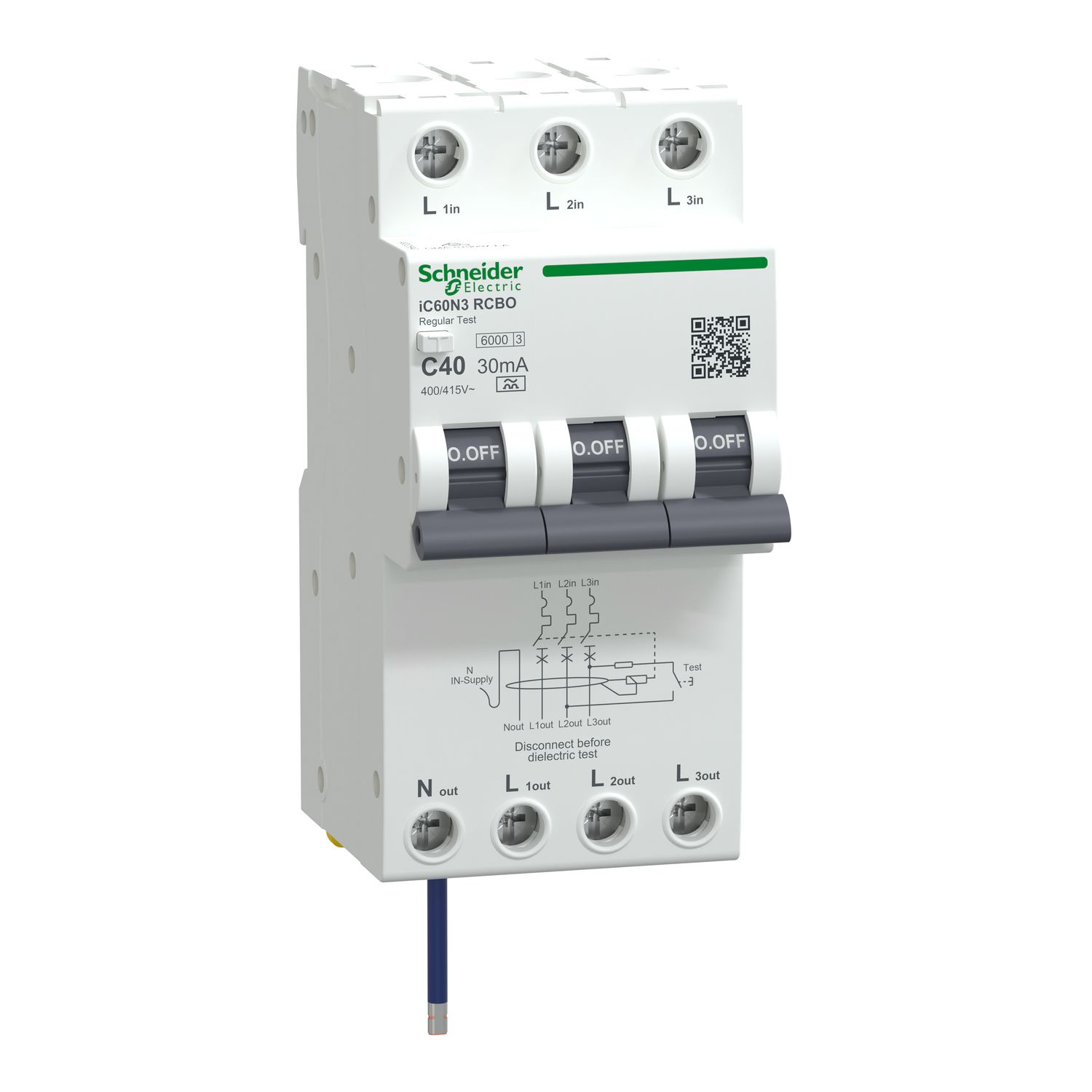

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 3P+Ns circuit breaker with 3 protected pole,40A In rated current and C tripping curve The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according IEC 61009-2-2 standard. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with AS/NZS 61009.1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 400/ 415 VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz/60Hz It is DIN rail or Chassis mountable. The width in 9mm pitches is 6. It has an IP20 degree of protection (as per IEC/EN 60529 standard) The operating temperature is from -5°C to +60°C. The storage temperature is from -25°C to +70°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [In] rated current | 40 A at 30 °C |
| Earth-leakage sensitivity | 30 mA |
| Product or component type | residual current breaker with overcurrent protection (RCBO) |
| Product name | Acti9 iC60 RCBO |
| Poles description | 3P + Ns |
| Curve code | C |
| Earthing system | TN |
| Range | Acti9 |
| Breaking capacity | 6000 A Icn at 400/415 V |
| Device short name | iC60N3 RCBO |
| Circuit breaker application | distribution |
| Complementary | |
| Operating voltage earthleakage protection | 150-457 V |
| Network frequency | 50/60 Hz |
| Mounting support | DIN rail |
| Limitation class | 3 |
| Local signalling | ON/OFF indication |
| Width | 54 mm |
| Depth | 77.2 mm |
| [Ue] rated operational voltage | 400/415 V |
| [Icw] rated short-time withstand current | Icw: 250 A during 8/20 µs impulse withstand |
| Wire stripping length | power circuit: 11 mm for bottom connection |
| Control type | toggle |
| Mounting mode | clip-on |
| Mechanical durability | 20000 cycles |
| Colour | white |
| Tightening torque | power circuit: 2.5-2.5 N.m top |
| Network type | AC |
| Device location in system | outgoer |
| 9 mm pitches | 6 |
| Surge current | 250 A |
| Net weight | 462 g |
| Earth-leakage protection time delay | instantaneous |
| [Ui] rated insulation voltage | 500 V |
| Neutral position | left |
| Locking options description | handle sealable with cable diameter 1.4mm in OFF or ON position, ON/OFF locking facilities |
| Trip unit technology | thermal-magnetic |
| [Ics] rated service breaking capacity | 6000 A |
| Height | 112 mm |
| Residual current tripping technology | voltage dependent |
| Test button operating voltage | 260-457 V |
| Number of protected poles | 3 |
| Earth-leakage protection | integrated |
| Earth-leakage protection class | type A |
| Comb busbar and distribution block compatibility | YES |
| Connections - terminals | screw clamp terminal (top) 1-25 mm² rigid without cable end |
| Electrical durability | 5000 cycles |
| Suitability for isolation | yes conforming to IEC 61009-1 |
| Grid distance | 45 mm |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Provision for padlocking | padlockable with padlock Ø 4 mm |
| Environment | |
| Standards | AS/NZS 61009.1 |
| Ambient air temperature for operation | -5-60 °C |
| IP degree of protection | IP20 |
| Tropicalisation | 2 |
| Ambient air temperature for storage | -25-70 °C |
| Relative humidity | 95-95 % at 55-55 °C |
| Contractual warranty | |
| Warranty | 18 |
