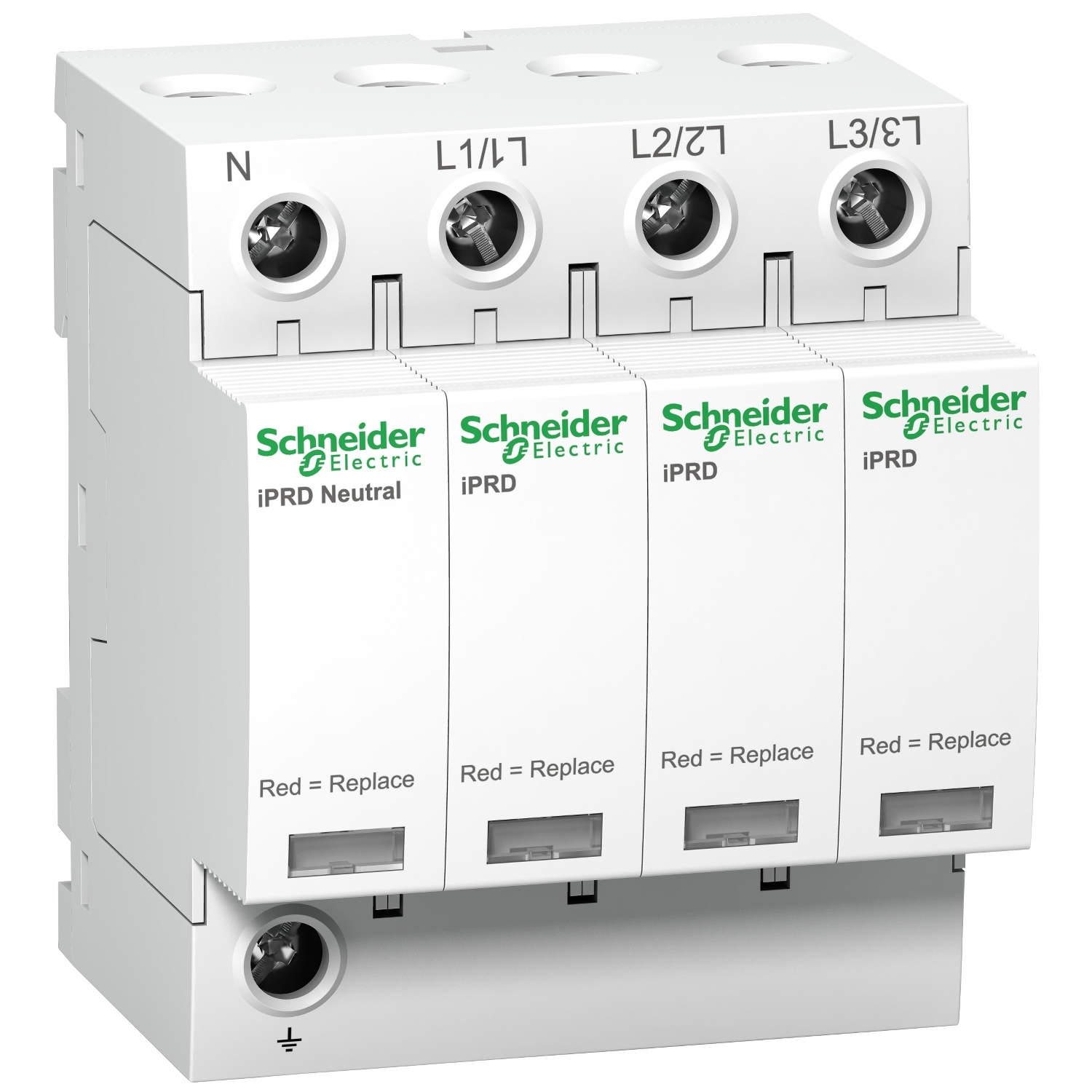

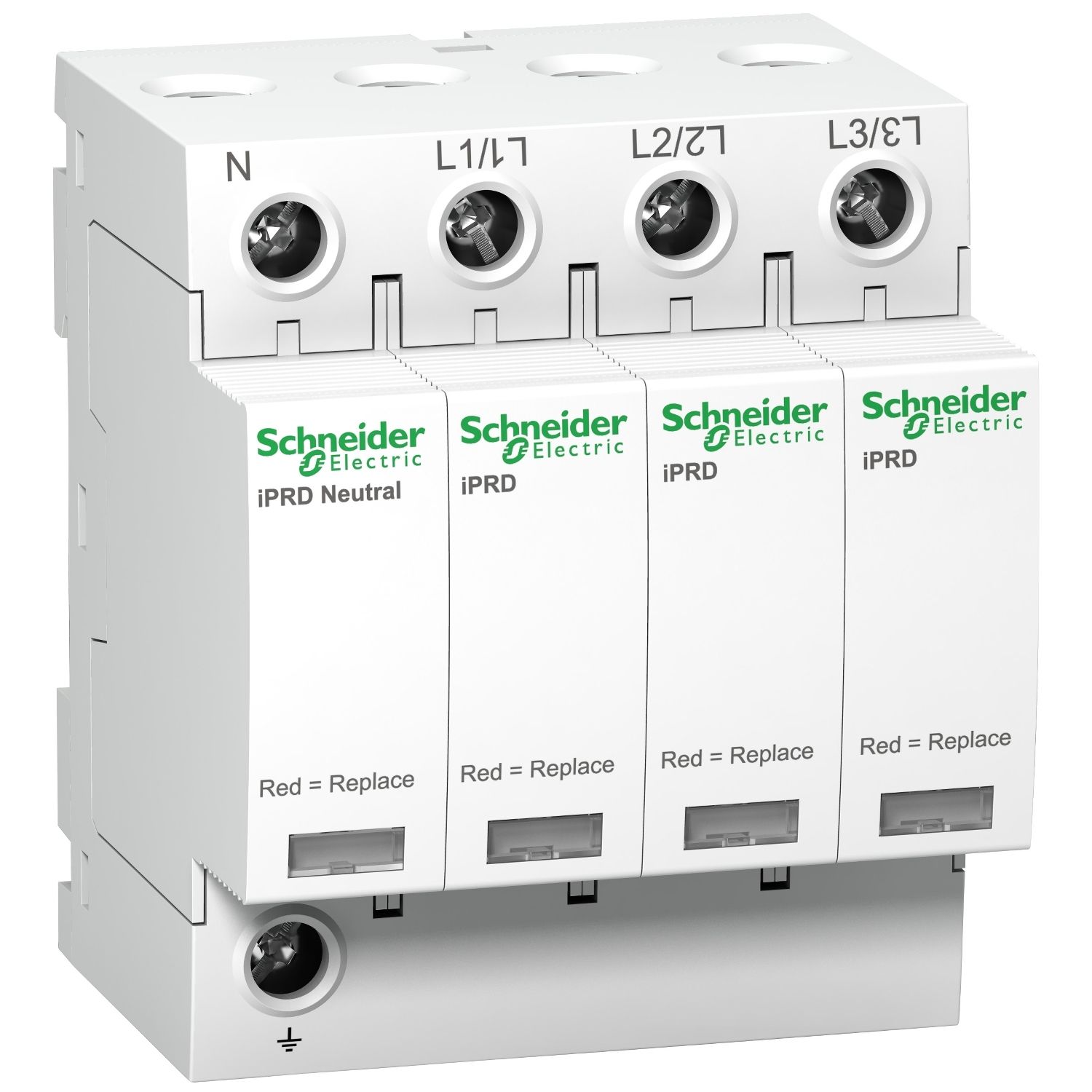

This Acti9 iPRD65r surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for very high risk level and incoming panel board. It offers remote reporting of the "cartridge must be changed" message. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. It is compatible with TT and TN-S earthing system. The Imax rated discharge current is 65kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Up Voltage protection level is 1.5kV in common mode (N/PE) and in differential mode (L/N). The Un rated service voltage is 230VAC or 400VAC. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 450g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with IEC 61643-11:2011 and EN61643-11:2012 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iPRD65r |
| Device application | distribution |
| Range | Acti9 |
| Earthing system | TT, TN-S |
| Standards | IEC 61643-11:2011, EN 61643-11:2012 |
| Range of product | iPRD |
| Poles description | 3P + N |
| Surge arrester type | electrical distribution network |
| Quality labels | KEMA-KEUR, NF |
| Signal contacts composition | 1 SD (1 C/O) |
| Product name | Acti9 iPRD |
| Product or component type | surge arrester with pluggable cartridge |
| Remote signalling | with |
| Product certifications | CE |
| Complementary | |
| Residual current | 0.6 mA, 0.003 mA |
| Tightening torque | 2.5-2.5 N.m |
| Colour | white (RAL 9003) |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Compatibility code | iPRD65r |
| Maximum [Up] voltage protection level | differential mode <1.5 kV type 2 L/N, common mode <1.5 kV type 2 N/PE |
| Disconnector device type | associated fuse gG 80 A - Icu 50 kA, associated circuit breaker NG125L 50 A curve C - Icu 50 kA, associated circuit breaker NG125H 50 A curve C - Icu 36 kA, associated circuit breaker NG125N 50 A curve C - Icu 25 kA, associated circuit breaker iC60H 50 A curve C - Icu 15 kA, associated circuit breaker IC60N 50 A curve C - Icu 10 kA |
| Connections - terminals | tunnel type terminal (upside) 2.5-35 mm², tunnel type terminal (downside) 2.5-35 mm² |
| [Uc] maximum continuous operating voltage | differential mode: 350 V L/N, common mode: 350 V L/PE, common mode: 260 V N/PE |
| [Ut] temporary overvoltage | 1453 V L/PE 200 ms safe failure mode, 442 V L/PE 5 s withstand, 1200 V N/PE 200 ms safe failure mode, 337 V L/N 5 s withstand |
| Surge arrester class type | type 2 |
| Height | 85 mm |
| Surge arrester technology | MOV + GDT |
| Depth | 69 mm |
| Width | 72 mm |
| Net weight | 0.492 kg |
| Maximum discharge current | differential mode: 65 kA L/N, common mode: 65 kA N/PE, common mode: 65 kA L/PE |
| Signalling circuit voltage | 0.25 A/250 V AC 50/60 Hz |
| 9 mm pitches | 8 |
| Nominal discharge current | differential mode: 20 kA (L/N), common mode: 20 kA (N/PE), common mode: 20 kA (L/PE) |
| Mounting mode | clip-on (DIN rail) |
| Environment | |
| Relative humidity | 5-95 % |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-60 °C |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Operating altitude | 2000 m |
