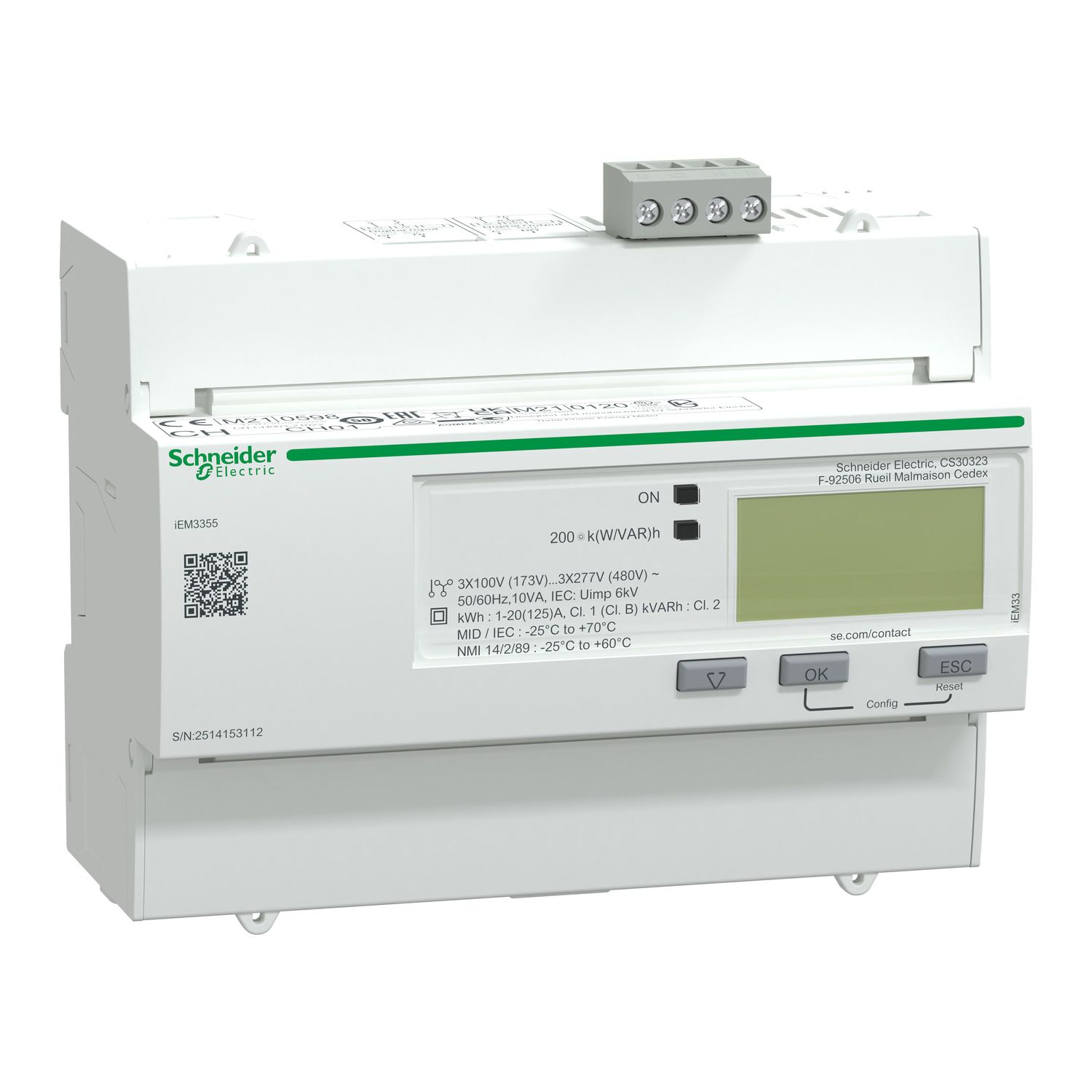

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 125A via direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 4.96 in (126 mm), depth 2.72in (69 mm), height 4.1 in (103 mm) and product weight 9.17 oz (260 g). Compatible with power management software to take advantage of the IoT digital power installation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iEM3355 |
| Range | Acti9 |
| Market segment | industry cost management: cost allocation, healthcare cost management: cost allocation, data center cost management: cost allocation, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing, healthcare cost management: billing, data center cost management: billing, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer |
| Product name | Acti9 iEM3000 |
| Product or component type | energy meter |
| Complementary | |
| Metering type | active, reactive, apparent energy (signed, four quadrant) |
| Device application | partial meter, sub billing, multi-tariff |
| Display type | LCD display |
| Compatibility code | iEM3355 |
| Mounting mode | clip-on |
| Information displayed | tariff (4) |
| Communication port protocol | Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V |
| Type of measurement | voltage, current, active and reactive power, active and reactive energy |
| Standards | ANSI C12.16, EN 50470-1, BS EN 50470-1, EN 50470-3, BS EN 50470-3, UL 61010-2-30, EN 61010-2-30, IEC 61010-2-30, BS EN 61010-2-30, UL 61010-1:2010, IEC 61010-1:2010, EN 61010-1:2010, BS EN 61010-1:2010, EN 62052-31:2015, IEC 62052-31:2015, BS EN 62052-31:2015, EN 62052-23, IEC 62053-23:2020, BS EN 62052-23, EN 62053-21, IEC 62053-21, BS EN 62053-21, EN 62052-11:2020, IEC 62052-11:2020, BS EN 62052-11:2020, EN 61326-1, IEC 61326-1, BS EN 61326-1, EN 61557-12:2021, IEC 61557-12:2021, BS EN 61557-12:2021 |
| Maximum value measured | 99999999.9 kWh |
| Output voltage | 5...40 V DC@50 mA |
| Communication port support | screw terminal block: RS485 |
| Rated voltage | 173-480 V, 100-277 V |
| Accuracy class | class B active energy conforming to EN 50470-3, class 1 active energy conforming to IEC 61557-12, class 1 active energy conforming to IEC 62053-21 |
| Overvoltage category | III |
| Analogue input type | direct input |
| [In] rated current | 125 A |
| Poles description | 3P, 1P + N, 3P + N |
| Technology type | electronic |
| Local signalling | yellow indicator light: communications are active on the Modbus port (Modbus), alarm: overload, yellow flashing LED: accuracy checking, green indicator light: power ON |
| Connections - terminals | screw terminals 50-50 mm² cable(s) |
| Measurement current | 0-125 A |
| Number of inputs | 1 digital 0...5 V/11...40 V 24 V DC |
| Product certifications | NMI conforming to NMI M 6-1, MID conforming to EN 50470-1 (sub-meter), MID conforming to EN 50470-3 (sub-meter), METAS conforming to EN 50470-1 (sub-meter), KZ conforming to EN 50470-3 (sub-meter), RCM conforming to EN 62052 (sub-meter), EAC conforming to EN 50470-3 (sub-meter), cULus conforming to EN 61010-1 (safety), cULus conforming to UL 61010-1 (safety), UKCA conforming to BS EN 61326-1 (EMC), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61010-1 (safety), CE conforming to EN/IEC 61326-1 (EMC), CE conforming to EN 61557-12 (power monitor), CE conforming to IEC 61010-1 (safety) |
| Mounting support | DIN rail |
| Number of outputs | 1 digital (static) |
| Sampling rate | 32 samples/cycle |
| Network frequency | 60 Hz, 50 Hz |
| Environment | |
| IP degree of protection | IP20 body: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529 |
| Relative humidity | 5-95 % at 50-50 °C |
| Ambient air temperature for storage | -40-85 °C |
| Colour | white |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25-60 °C - IEC, -25-70 °C - IEC, -25-55 °C - MID |
| Height | 103.2 mm |
| Operating altitude | < 2000 m |
| Depth | 69.3 mm |
| Width | 126 mm |
| 9 mm pitches | 14 |
