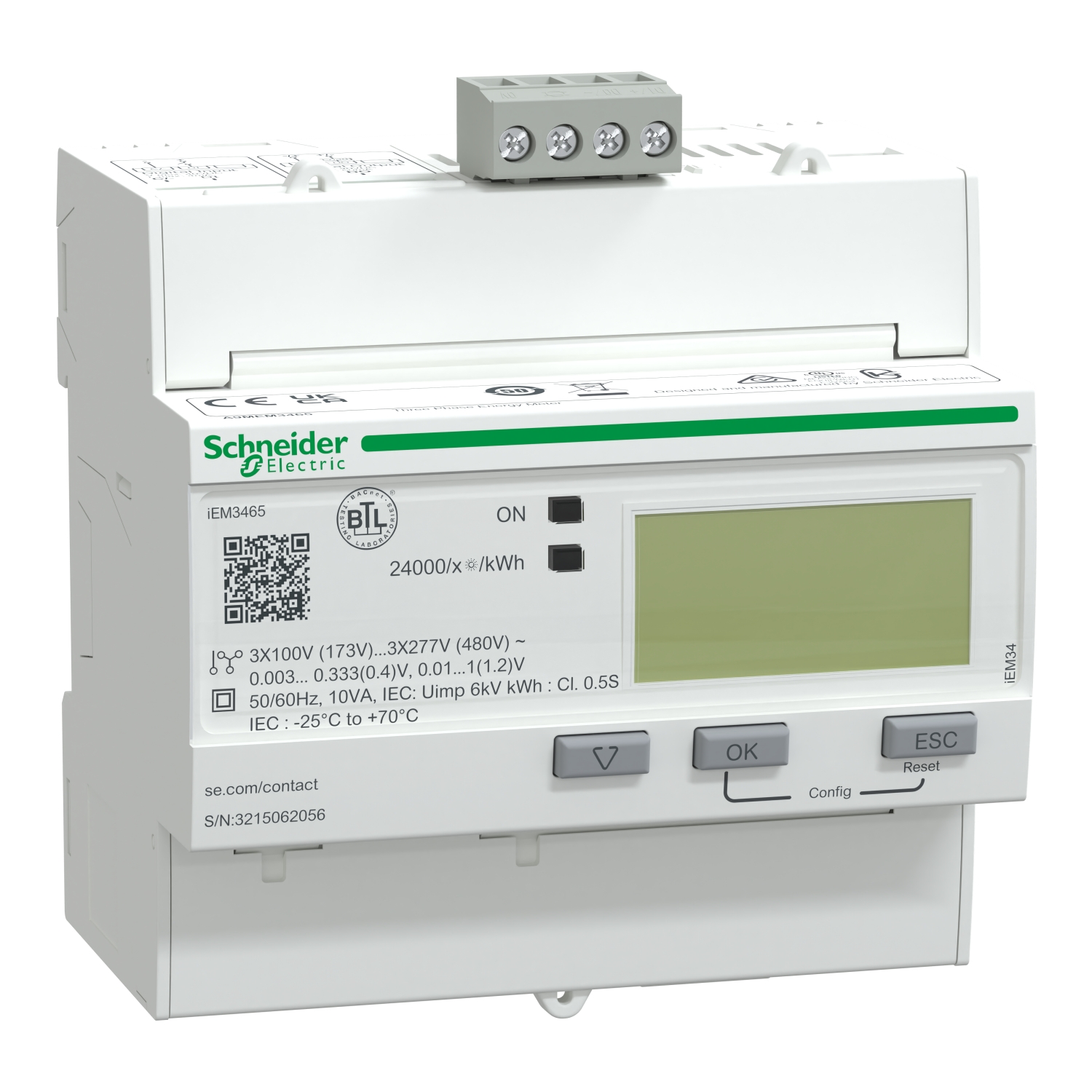

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is BACnet with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iEM3465 |
| Range | Acti9 |
| Market segment | industry cost management: cost allocation, healthcare cost management: cost allocation, data center cost management: cost allocation, buildings multi-site cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing, healthcare cost management: billing, data center cost management: billing, buildings multi-site cost management: billing: panelboard, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: panelboard, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: panelboard, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: panelboard, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer |
| Product name | Acti9 iEM3000 |
| Product or component type | energy meter |
| Complementary | |
| Metering type | active, reactive, apparent energy (signed, four quadrant) |
| Device application | partial meter, multi-tariff, sub billing |
| Tightening torque | communication: 0.5-0.5 N.m Philips screwdriver , current circuit: 0.8-0.8 N.m pozidriv screwdriver , voltage circuit: 0.5-0.5 N.m Philips screwdriver , input/output circuit: 0.5-0.5 N.m Philips screwdriver |
| Display type | LCD display |
| Compatibility code | iEM3465 |
| Mounting mode | clip-on |
| Information displayed | tariff (4) |
| Wire stripping length | communication: 7 mm, current circuit: 8 mm, voltage circuit: 8 mm, input/output circuit: 6 mm |
| Communication port protocol | BACnet at 9.6, 19.2, 38.4, 57.6, 76.8 kbauds |
| Type of measurement | voltage, current, active and reactive power, active and reactive energy |
| Standards | ANSI C12.20, UL 61010-2-30, EN 61010-2-30, IEC 61010-2-30, BS EN 61010-2-30, UL 61010-1:2010, IEC 61010-1:2010, EN 61010-1:2010, BS EN 61010-1:2010, EN 61326-1, IEC 61326-1, BS EN 61326-1 |
| Maximum value measured | 99999999 MWh, 99999999.9 kWh |
| Output voltage | 5...40 V DC@50 mA |
| Communication port support | screw terminal block: RS485 |
| Rated voltage | 173-480 V +/- 20 %, 100-277 V +/- 20 % |
| Accuracy class | class 0.5S active energy conforming to ANSI C12.20, class 0.5S active energy conforming to IEC 62053-22 |
| Analogue input type | split core current transducer 0.333 V or 1 V |
| Poles description | 3P + N, 1P + N, 3P |
| Technology type | electronic |
| Local signalling | alarm: overload, yellow flashing LED: accuracy checking, green indicator light: power ON |
| Connections - terminals | communication: screw terminals 2.5-2.5 mm² cable(s) , input/output circuit: screw terminals 1.5-1.5 mm² cable(s) , voltage circuit: screw terminals 2.5-2.5 mm² cable(s) , current circuit: screw terminals 6-6 mm² cable(s) |
| Measurement current | 1-32767000 mA |
| Number of inputs | 1 digital 0...5 V/11...40 V 24 V DC |
| Product certifications | RCM, KZ, cULus conforming to EN 61010-1 (safety), cULus conforming to UL 61010-1 (safety), UKCA conforming to BS EN 61326-1 (EMC), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61010-1 (safety), CE conforming to EN/IEC 61326-1 (EMC), CE conforming to EN 61557-12 (power monitor), CE conforming to IEC 61010-1 (safety) |
| Mounting support | DIN rail |
| Number of outputs | 1 digital (static) |
| Sampling rate | 32 samples/cycle |
| Network frequency | 50 Hz, 60 Hz |
| Environment | |
| IP degree of protection | IP20 body: conforming to IEC 60529, IP40 front panel: conforming to IEC 60529 |
| Relative humidity | 5-95 % at 36-36 °C |
| Ambient air temperature for storage | -40-85 °C |
| Colour | white |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25-70 °C - IEC |
| Height | 87 mm |
| IK degree of protection | IK08 |
| Operating altitude | < 3000 m |
| Depth | 69 mm |
| Width | 90 mm |
| 9 mm pitches | 10 |
