MX Shunt Trip, Acti9, MX plus 1 OF 48-130VAc DC

Manufacturer: Schneider Electric

SKU: A9N26947

GTIN: 3606480382963

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $245.30 inc GST

Price: $85.65 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

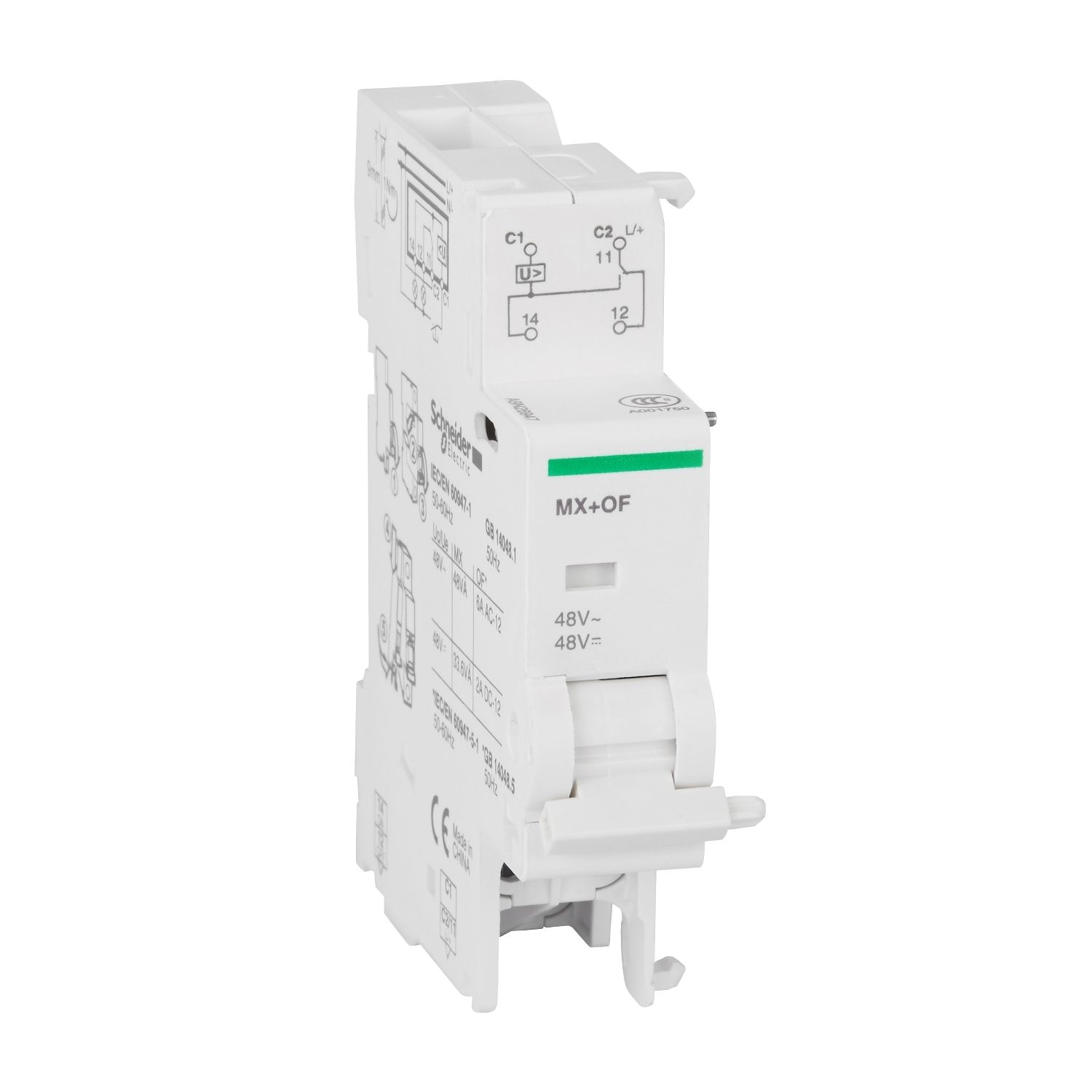

This MX+OF product is a shunt trip release auxiliary with an open close contact (OC). It is fixed on DIN rail. The Uc control circuit voltage is 48VAC with a 50/60Hz frequency, or 48VDC. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.

Products specifications

Attribute name	Attribute value
Main
Device short name	MX + OF
Product compatibility	C40, IDc, C60, iDPN, ITG40, DPN Vigi, ID C40, C120, DT60, DT40
Signal contacts composition	1 C/O
Range	Acti9
Product or component type	shunt trip release with OC contact
9 mm pitches	2
Range of product	ProDis, ID, Clario, C120, DPN, DPN Vigi, Librio, C60
[Uc] control circuit voltage	48 V DC, 48 V AC 50/60 Hz
Complementary
Tightening torque	1-1 N.m
Depth	73.5 mm
Market segment	residential, small commercial
Width	18 mm
Colour	white
Local signalling	action indicator
Compatibility code	MX + OF
Mounting mode	fixed
Connections - terminals	clamp terminal - 1 cable(s) 2.5-2.5 mm² - flexible
Wire stripping length	9 mm
Net weight	65 g
Comb busbar and distribution block compatibility	top: YES
Range compatibility	Acti 9 Acti9 DPN, Acti 9 Acti9 ID, Acti 9 Acti9 ITG40, Acti 9 Acti9 IDc, Acti 9 Acti9 ID C40, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 DPN Vigi, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 C60H-DC, Acti 9 Acti9 C40, Acti 9 Acti9 C120, Acti 9 Acti9 iDPN
Mounting support	35 mm symmetrical DIN rail
Height	82.5 mm
Environment
Relative humidity	95-95 % at 55-55 °C
Ambient air temperature for storage	-40-85 °C
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Standards	EN/IEC 60947-5-1
Ambient air temperature for operation	-25-50 °C
Product certifications	ASTA, KEMA, ASEFA, LCIE
